Diagnostic Trouble Code Chart

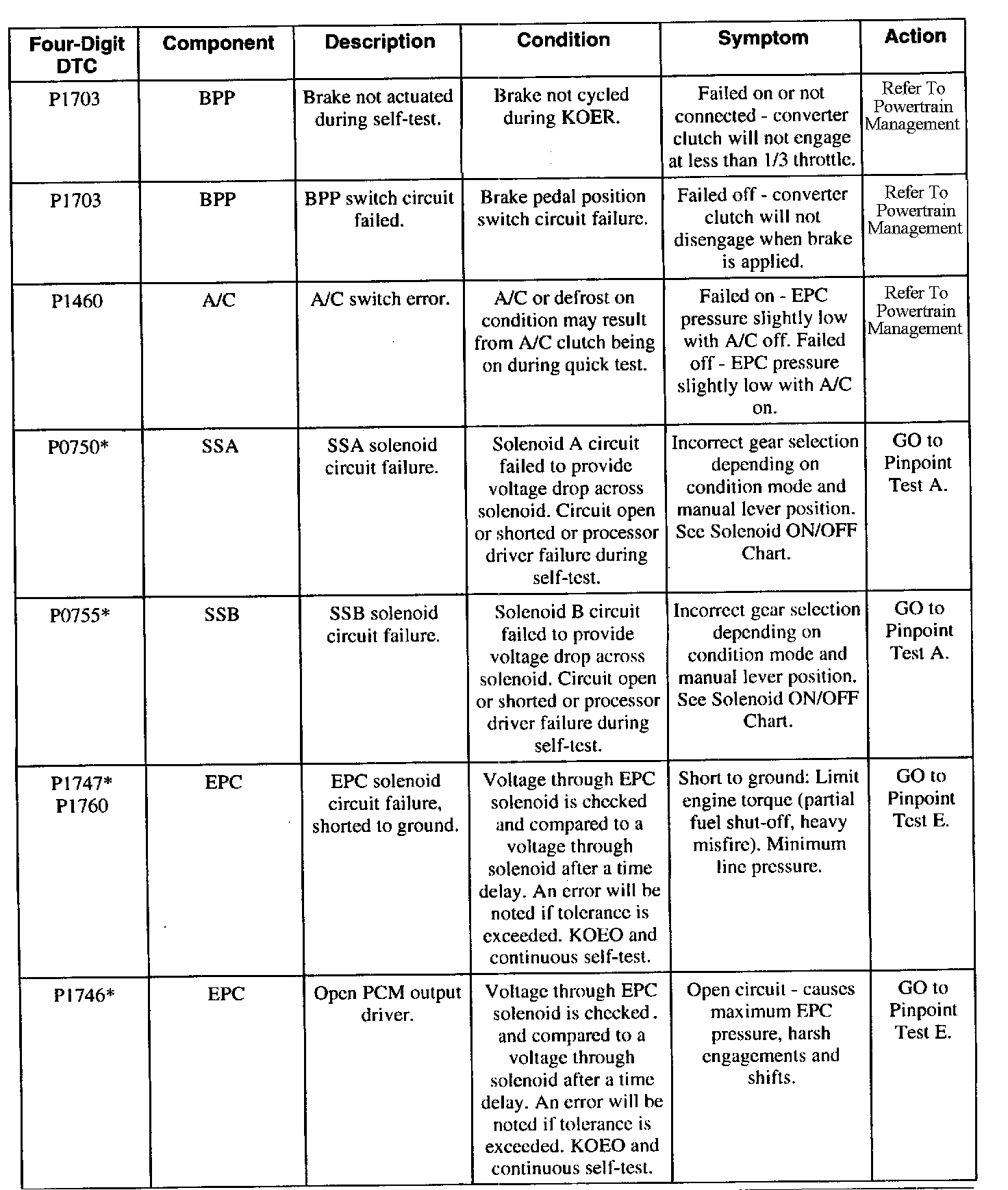

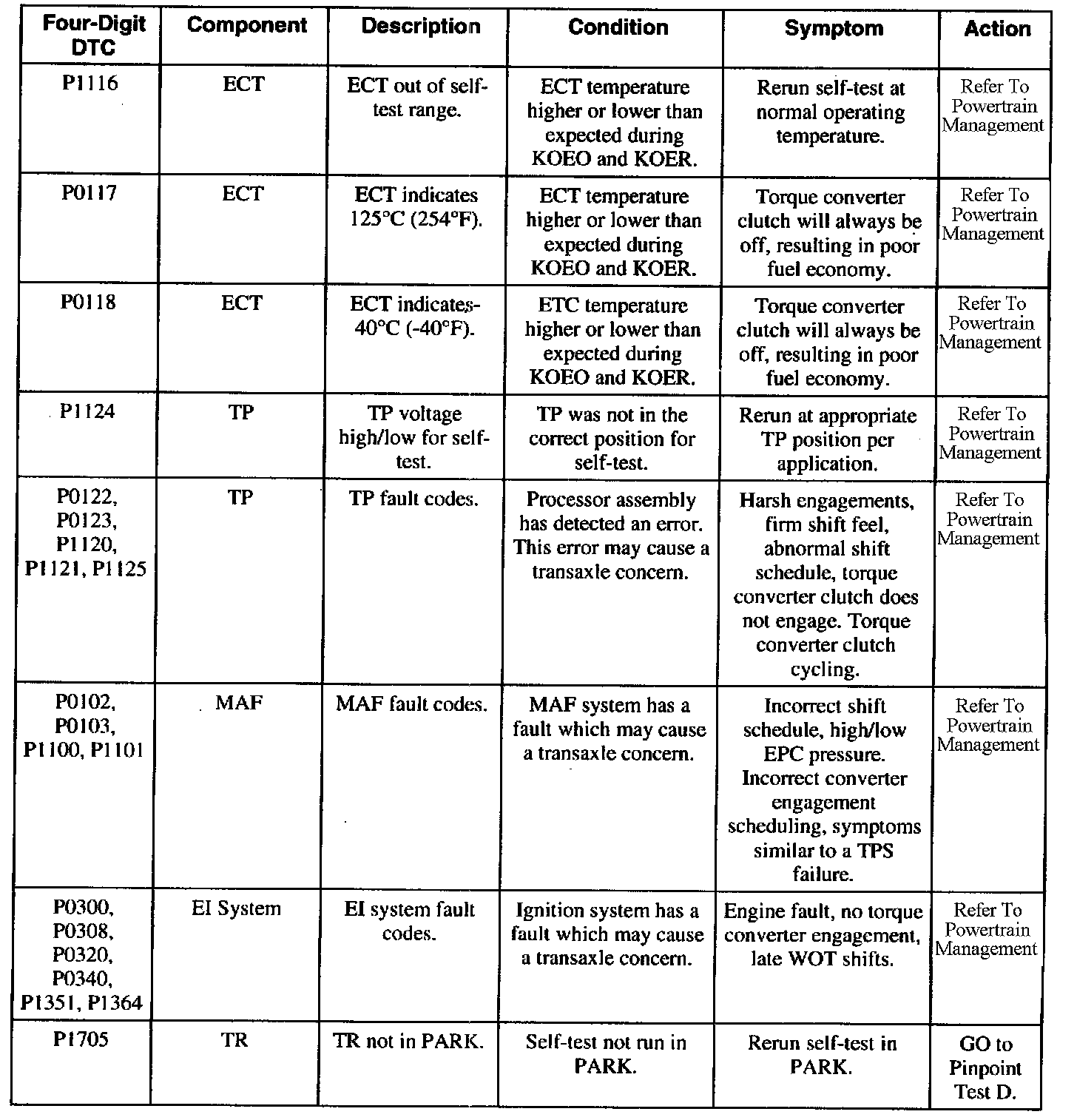

P0102-P1705:





1 of 7

P0750-P1760:





2 of 7

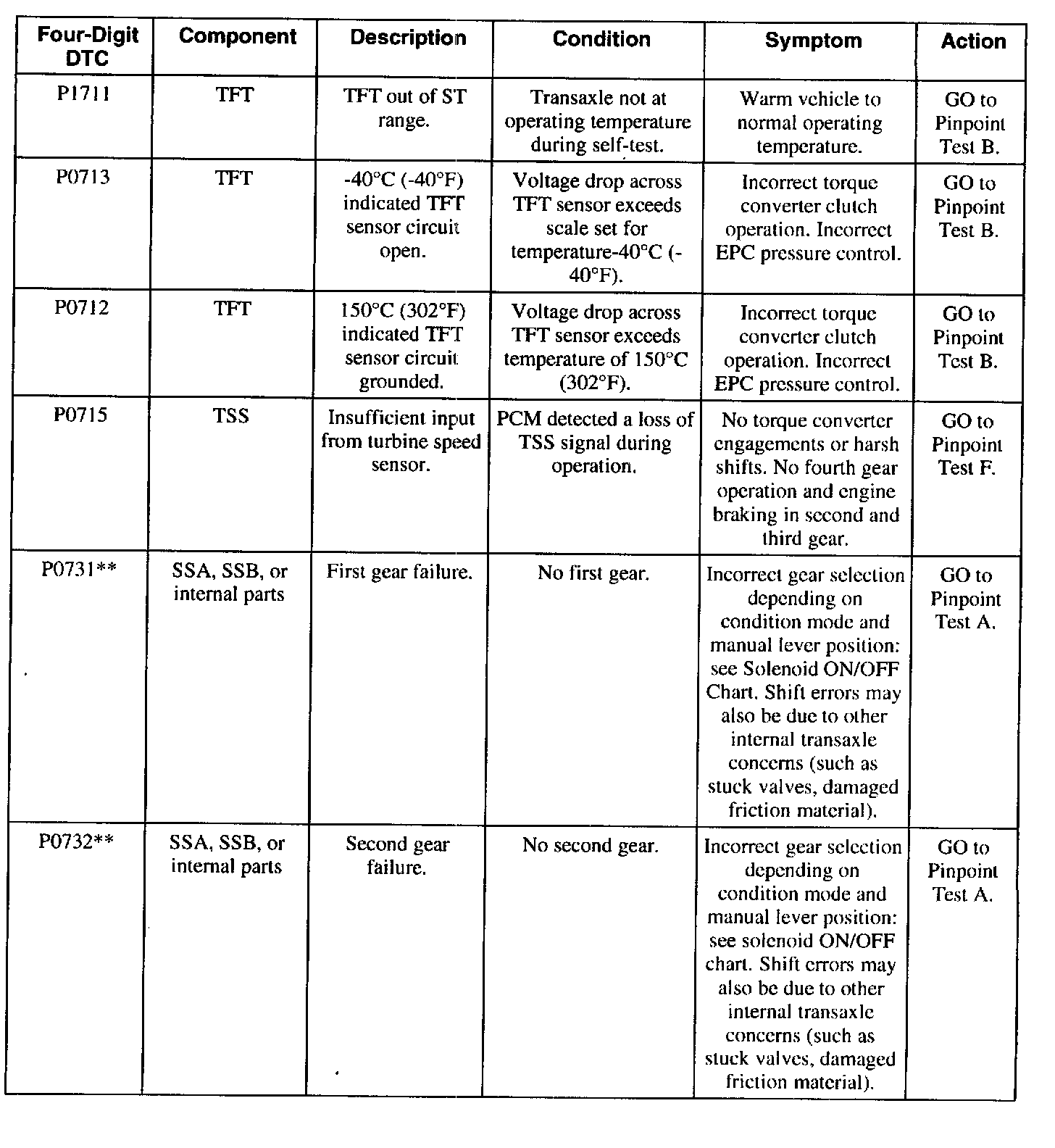

P0712-P1711:





3 of 7

P0733-P1783:





4 of 7

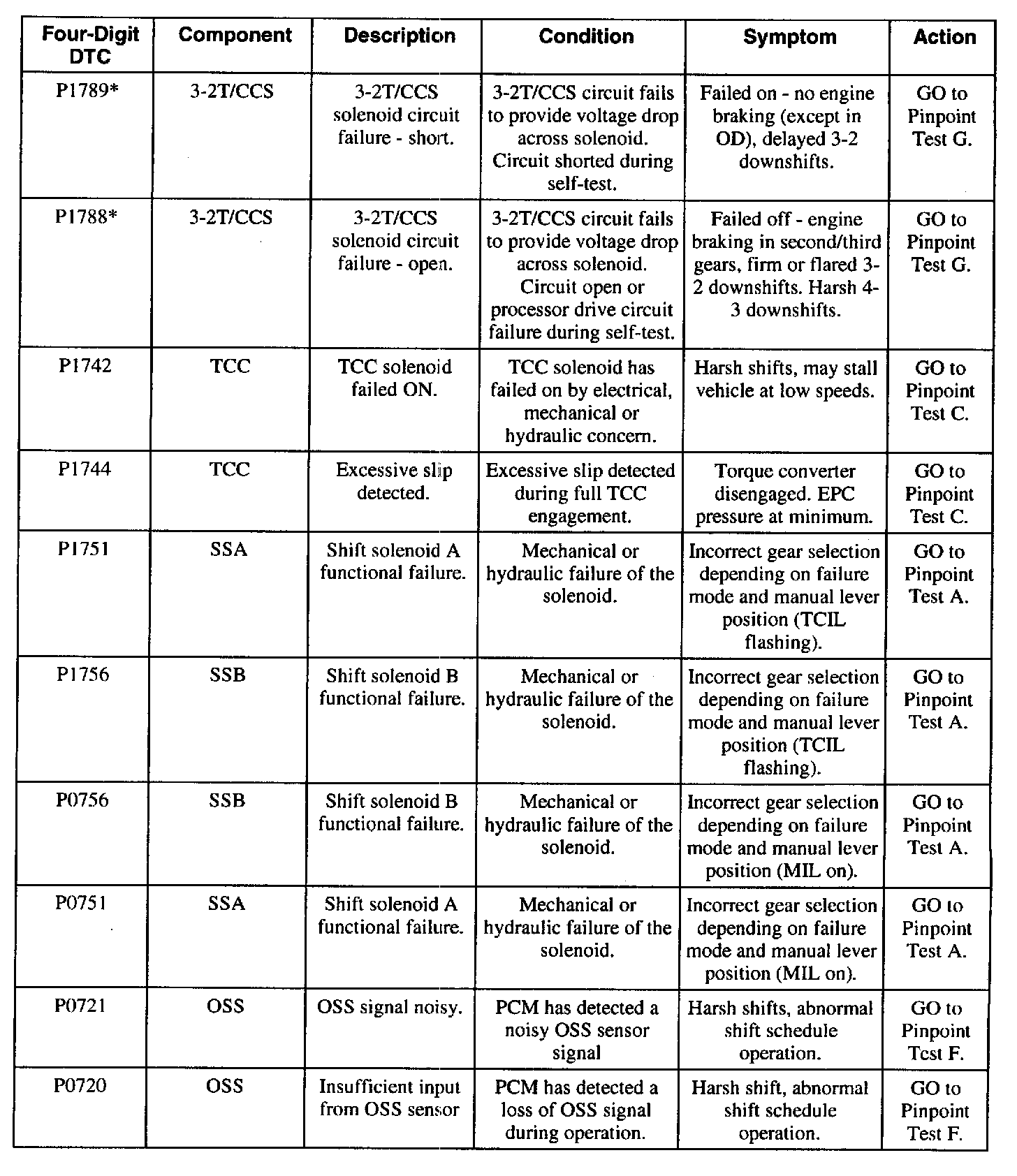

P0720-P1789:





5 of 7

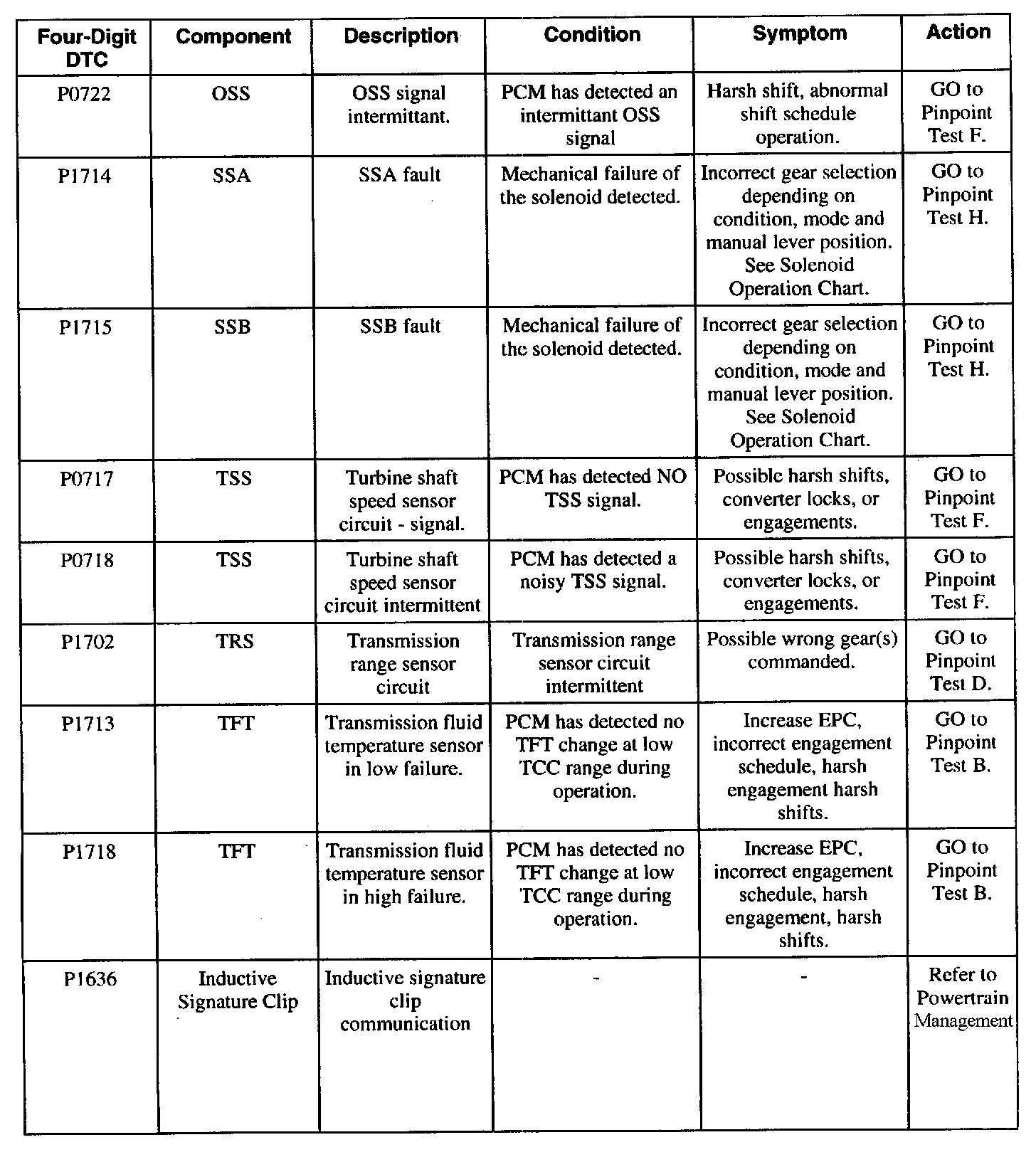

P0717-P1718:





6 of 7

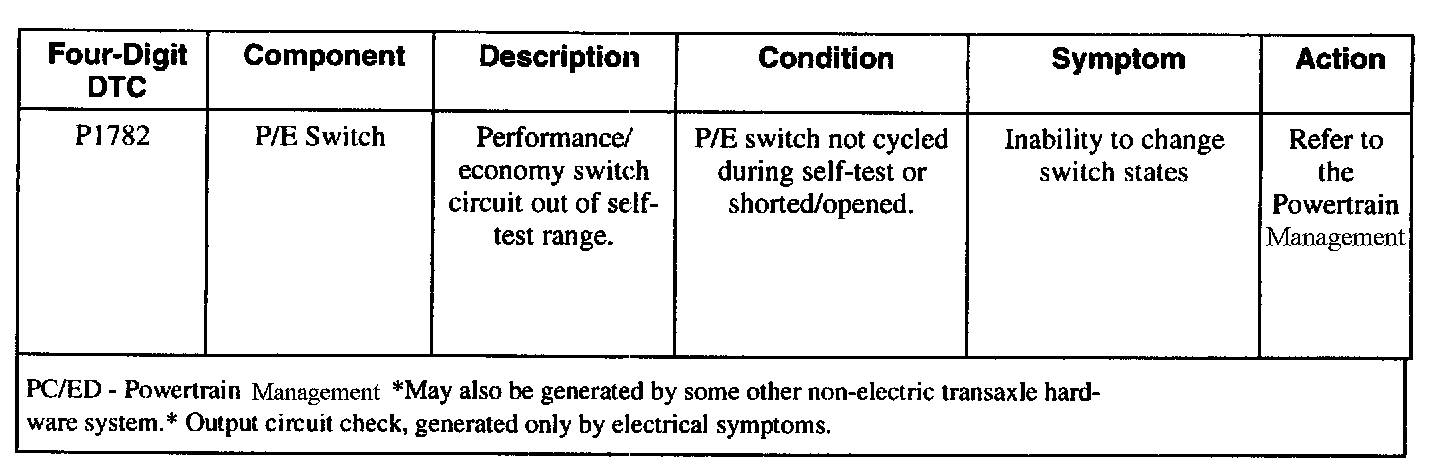

P1782:





7 of 7
