External Sealing

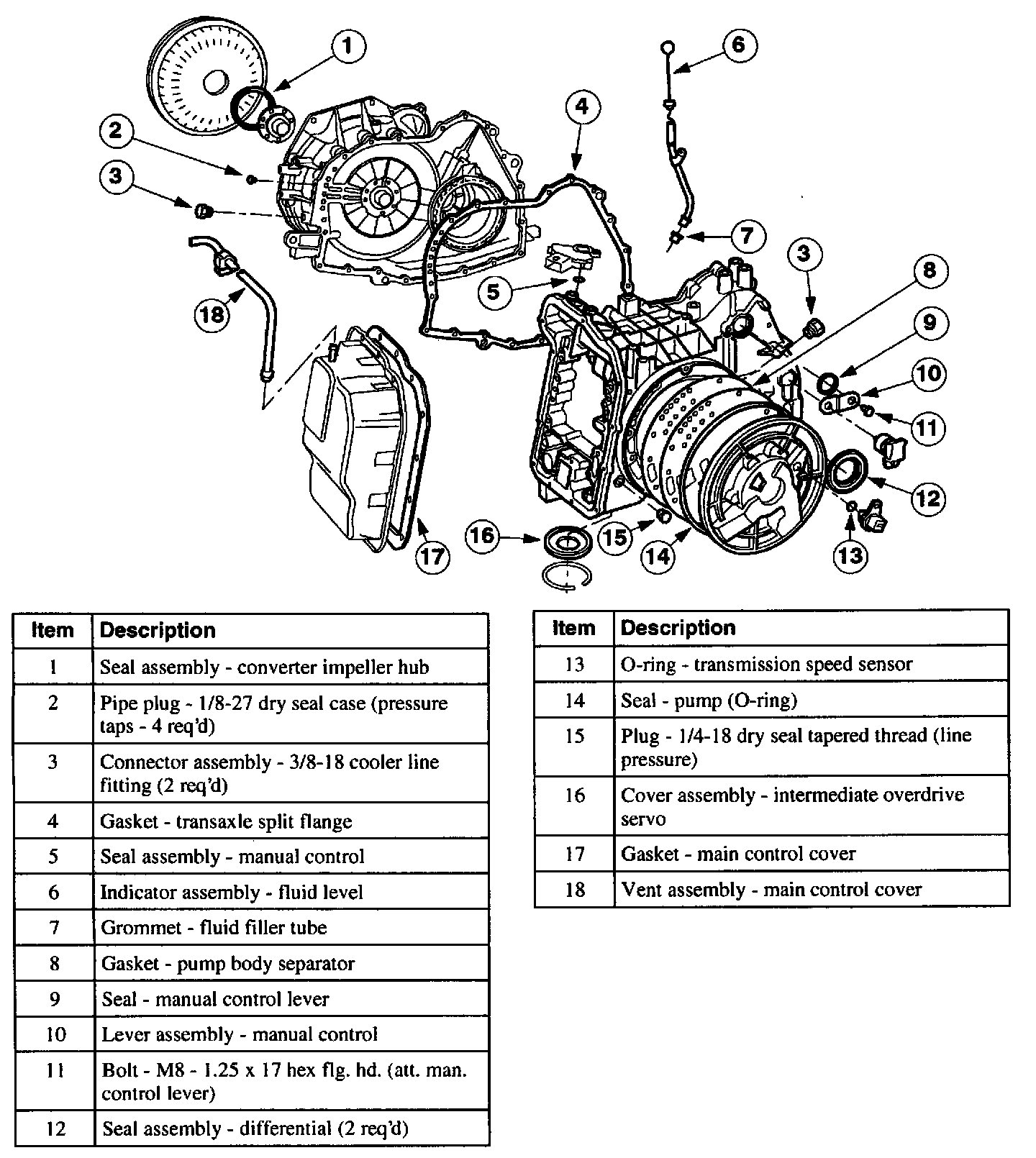

The CD4E transaxle has the following parts to prevent external fluid leakages:
- gaskets
- lip type seals
- O-rings
- seal rings
