Torque Converter End Play Check

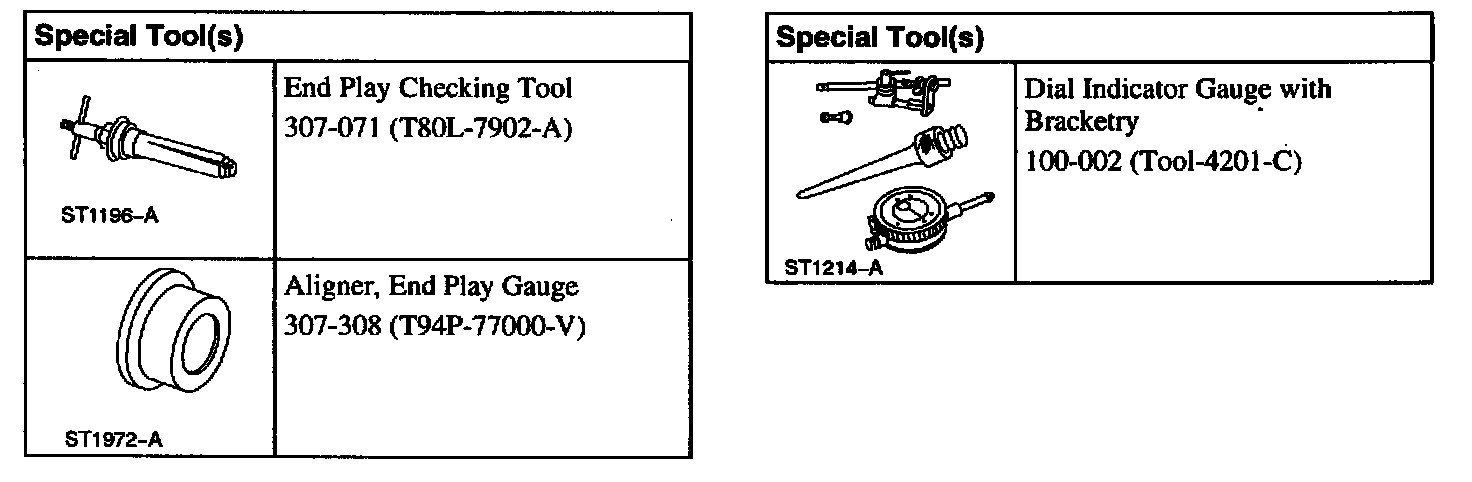

Special Tools:

Check

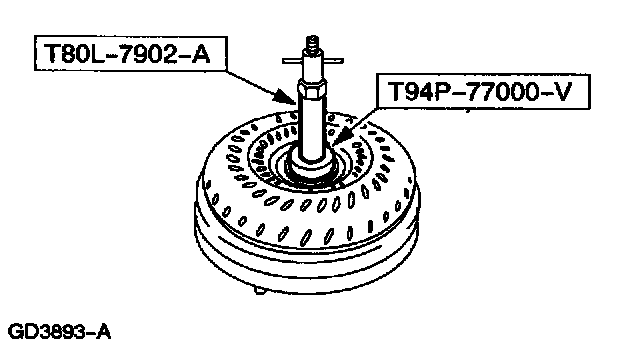

1. Insert the special tools in the turbine.
2. Tighten the center collet of the tool.

3. NOTE: The special tool must be between the ridges of the torque converter. Attach Dial indicator with Bracketry to the tool





Position the indicator bottom on the converter housing and set the dial face at zero.

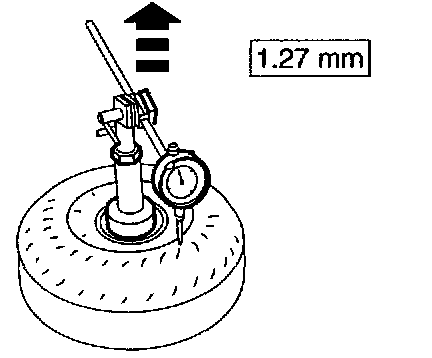

4. Pull up on the special tool T80L-7902-A and observe the dial indicator reading.
5. If the end play exceeds specification, install a new torque converter.
