Forward/Coast/Direct Clutch Cyl and Reverse Clutch - Disassembly

Disassembly

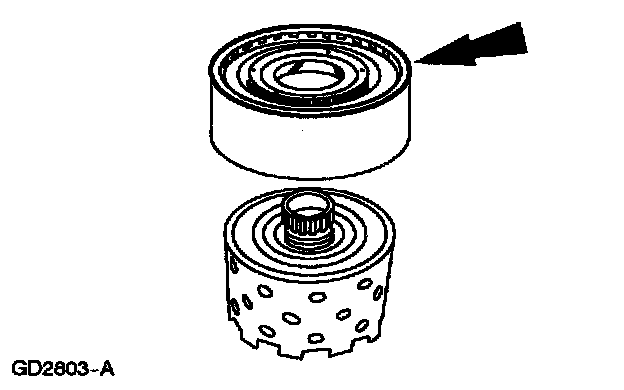

1. NOTE: Support the assembly of the forward/coast/direct clutch cylinder assembly and reverse clutch drum assembly on a block of wood so that the reverse clutch hub faces upward. This will ease the reverse clutch hub retaining ring removal.





Remove the reverse clutch hub retaining ring.

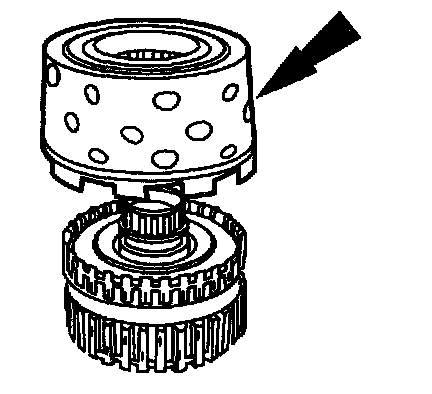

2. Remove the reverse clutch hub.

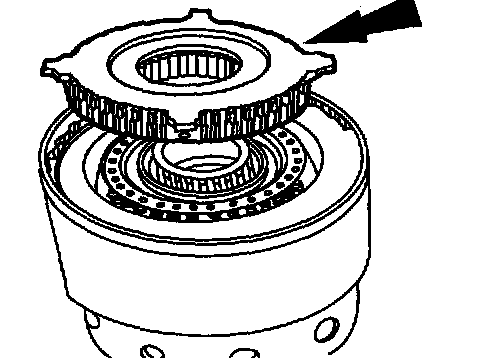

3. Remove the reverse clutch drum assembly.

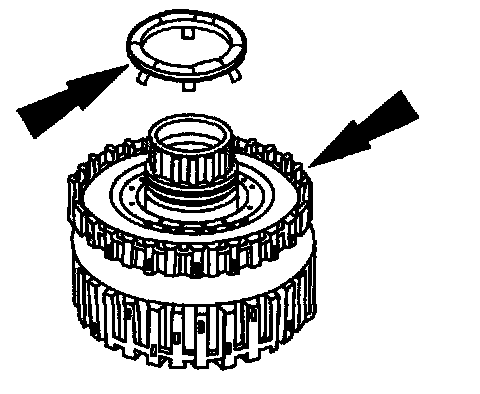

4. Remove the direct clutch hub and shell from the forward/coast/direct clutch cylinder.

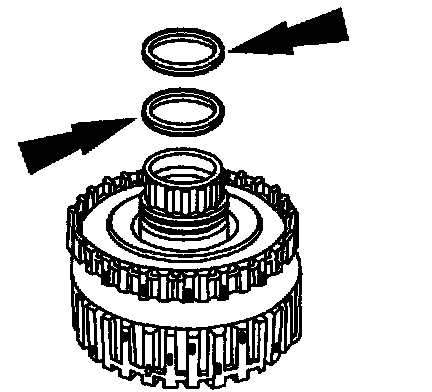

5. Remove and discard the two reverse clutch cylinder seals from the forward/coast/direct clutch cylinder assembly.

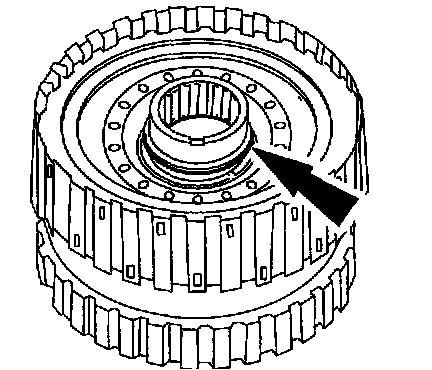

6. NOTE: Notice tab orientation for assembly.





Remove the No. 2 direct clutch thrust washer from the forward/coast/direct clutch cylinder.

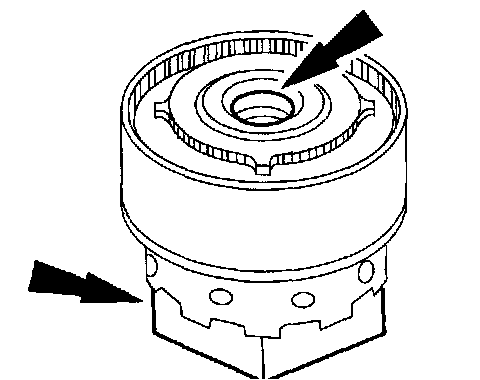

7. Turn the forward/coast/direct clutch cylinder over.





8. Remove and discard the forward/coast/direct clutch cylinder hub seal ring.
