Forward/Coast/Direct Clutch Cyl and Reverse Clutch - Assembly

Special Tools:

Assembly

1. CAUTION: The tabs on the No.2 direct clutch thrust washer must be seated in the direct clutch support and spring.





Install the No.2 direct clutch thrust washer on the forward/coast/direct clutch cylinder with the tabs facing downward.





2. Install the two reverse clutch cylinder seals.

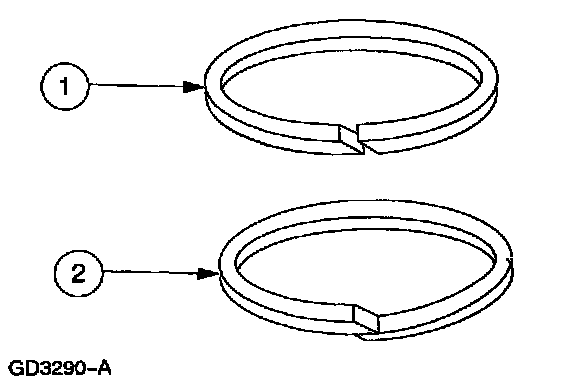

3. NOTE: Make sure that the reverse clutch cylinder seals are overlapped correctly.

Position the reverse clutch cylinder seals.





1 Correct installation.
2 Incorrect installation.





4. Support the forward/coast/direct clutch cylinder assembly on a block of wood so that the direct clutch faces upward.





5. Install the direct clutch hub and shell on the forward/coast/direct clutch cylinder.





6. Install the reverse clutch drum assembly.





7. Install the reverse clutch hub.





8. Support the reverse clutch drum on a block of wood while installing the reverse clutch hub retaining ring.

9. NOTE: Turn the forward/coast/direct clutch cylinder over.





Install the forward/coast/direct clutch cylinder hub seal.





10. Using the special tool, size the seal. Leave special tool attached until the forward/coast/direct clutch cylinder is installed into the transaxle housing.
