Chain Sprockets

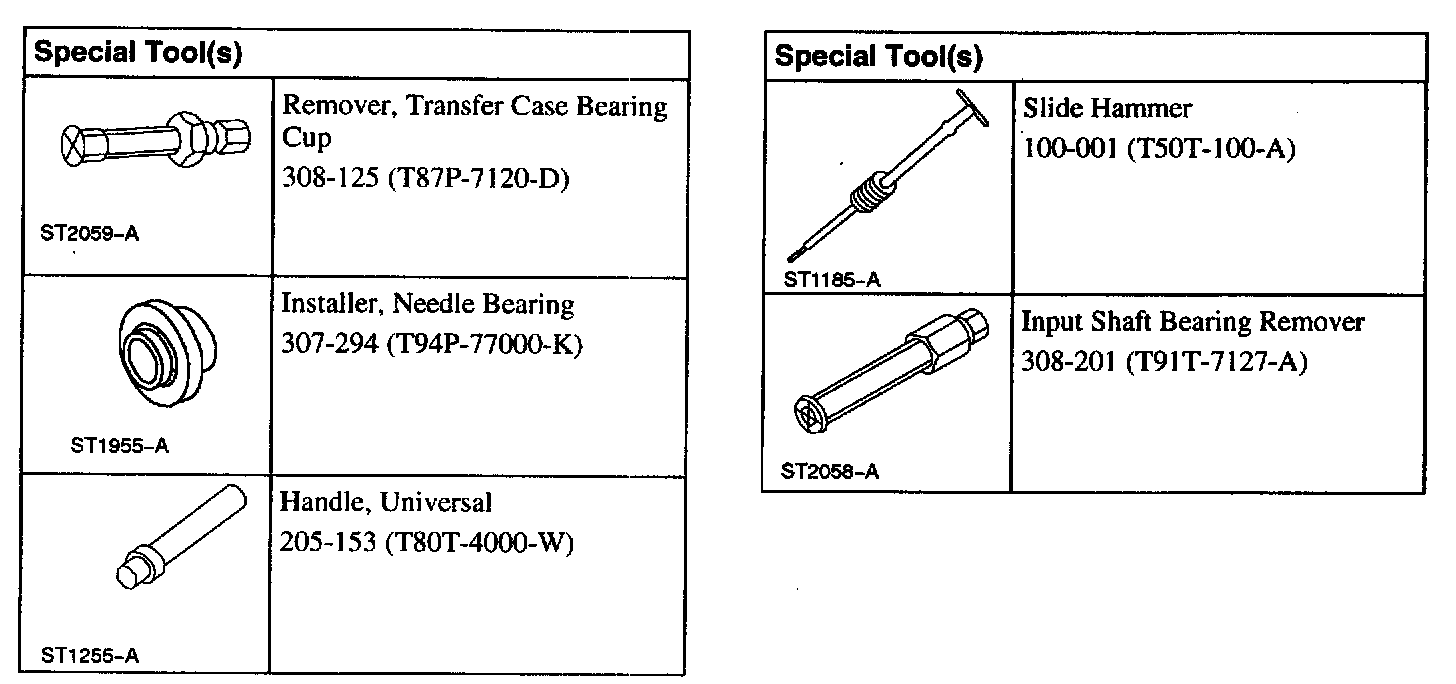

Special Tools:

Disassembly

1. CAUTION: Clamp the sprocket in a soft jawed vise.

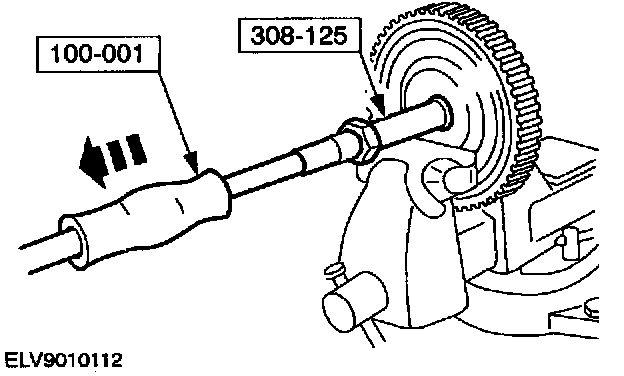

Using the special tools, remove the No. 16 reverse/overdrive ring gear bearing, as necessary.

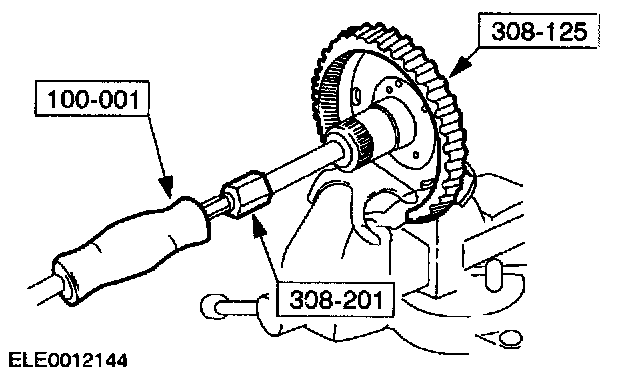

2. Using the special tools, remove the No. 17 stator support bearing, as necessary.

Assembly





1. Position the No. 16 reverse/overdrive ring gear bearing on the special tools.
- Position the bearing with the part number facing towards the handle of the special tool.

2. NOTE: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.





Using the special tools, install the No. 16 reverse/overdrive ring gear bearing.





3. Position the No. 17 stator support bearing on the special tools.
- Position the bearing with the part number facing towards the handle of the special tool.

4. NOTE: The identification stamping of the bearing goes to the outboard side of the reverse/overdrive ring gear.





Using the special tools, install the No. 17 stator support bearing into the stator support sprocket.
