Test G: Vibration

G1:





Part 1 of 5

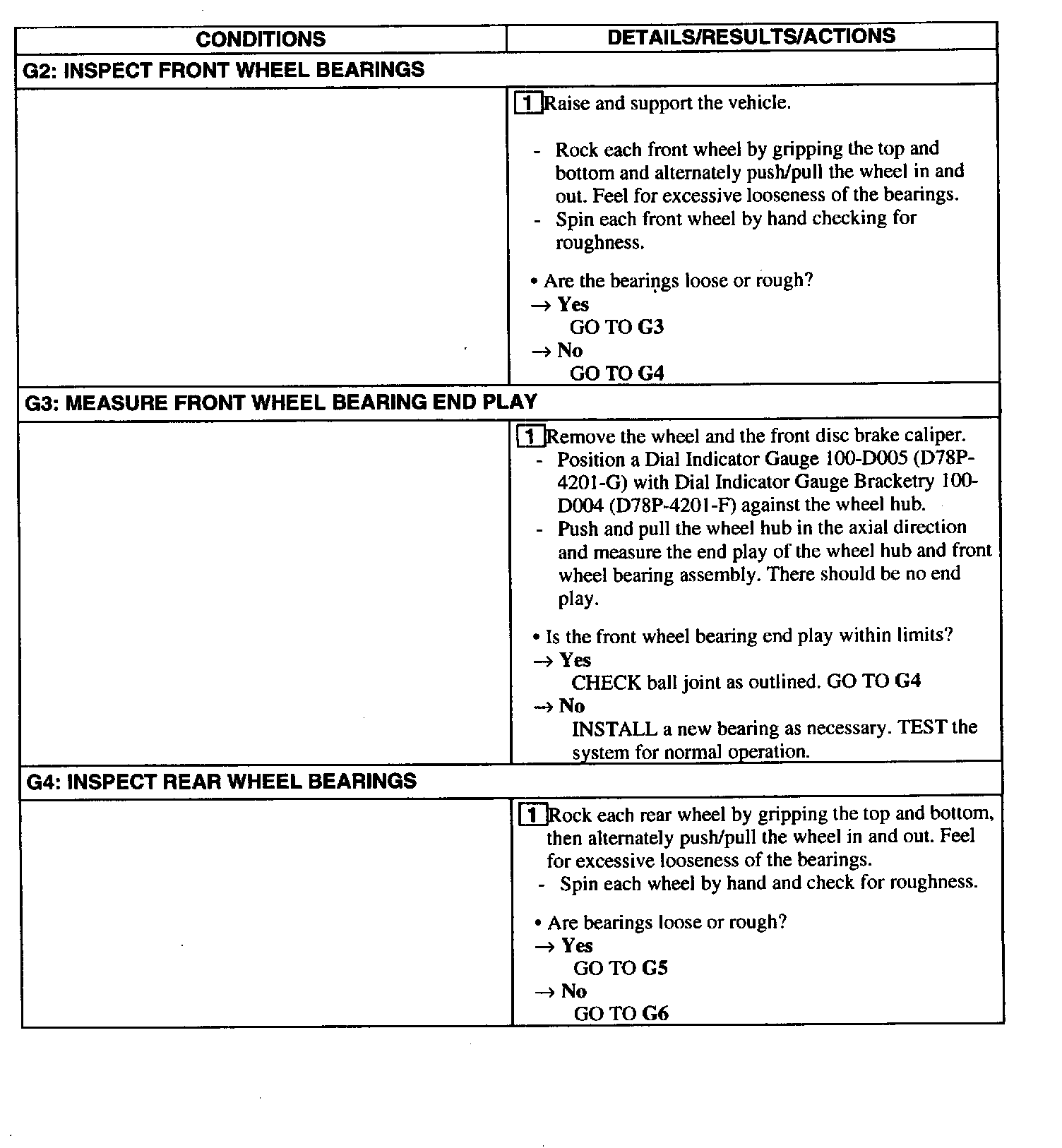

G2 - G4:





Part 2 of 5

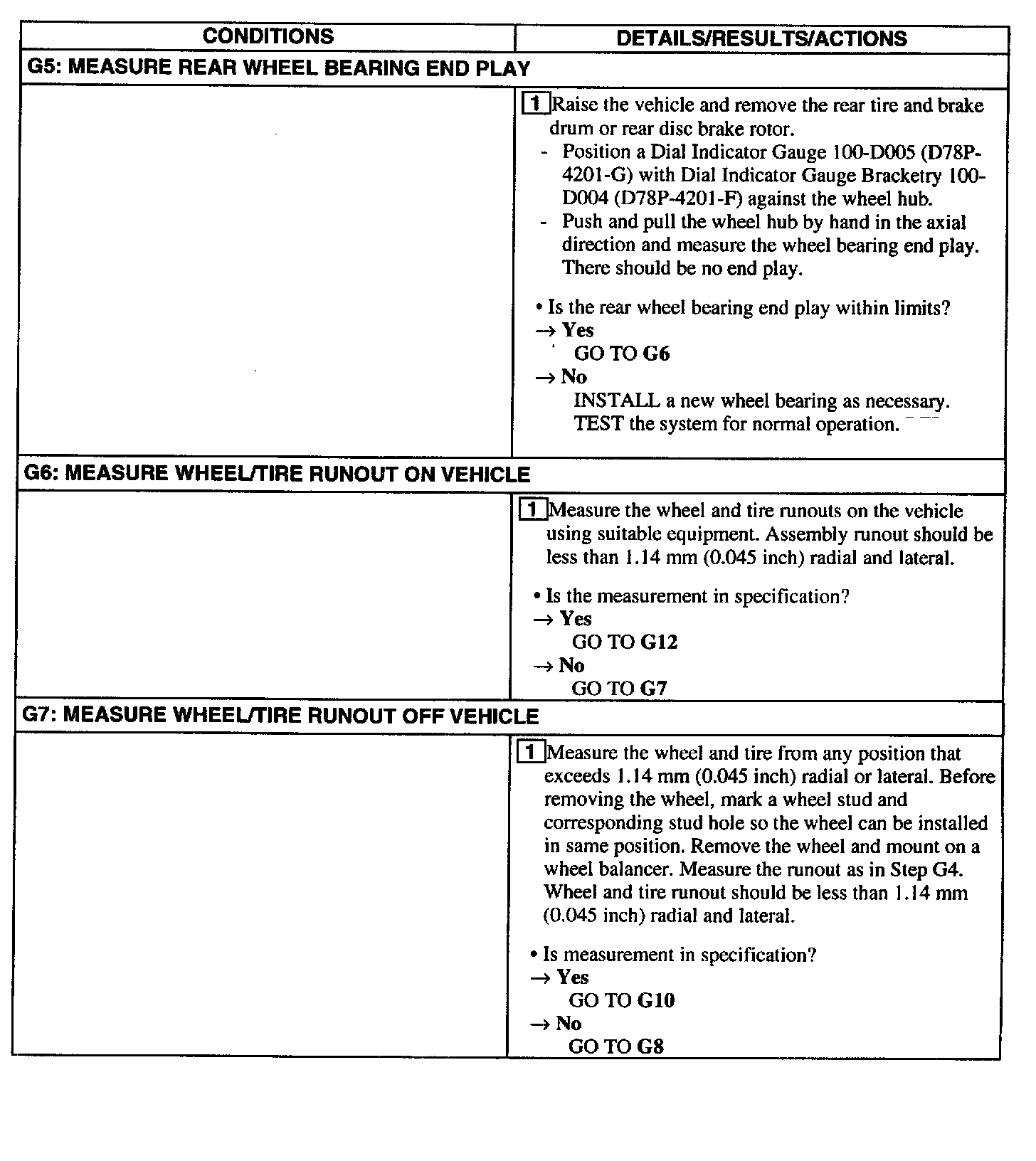

G5 - G7:





Part 3 of 5

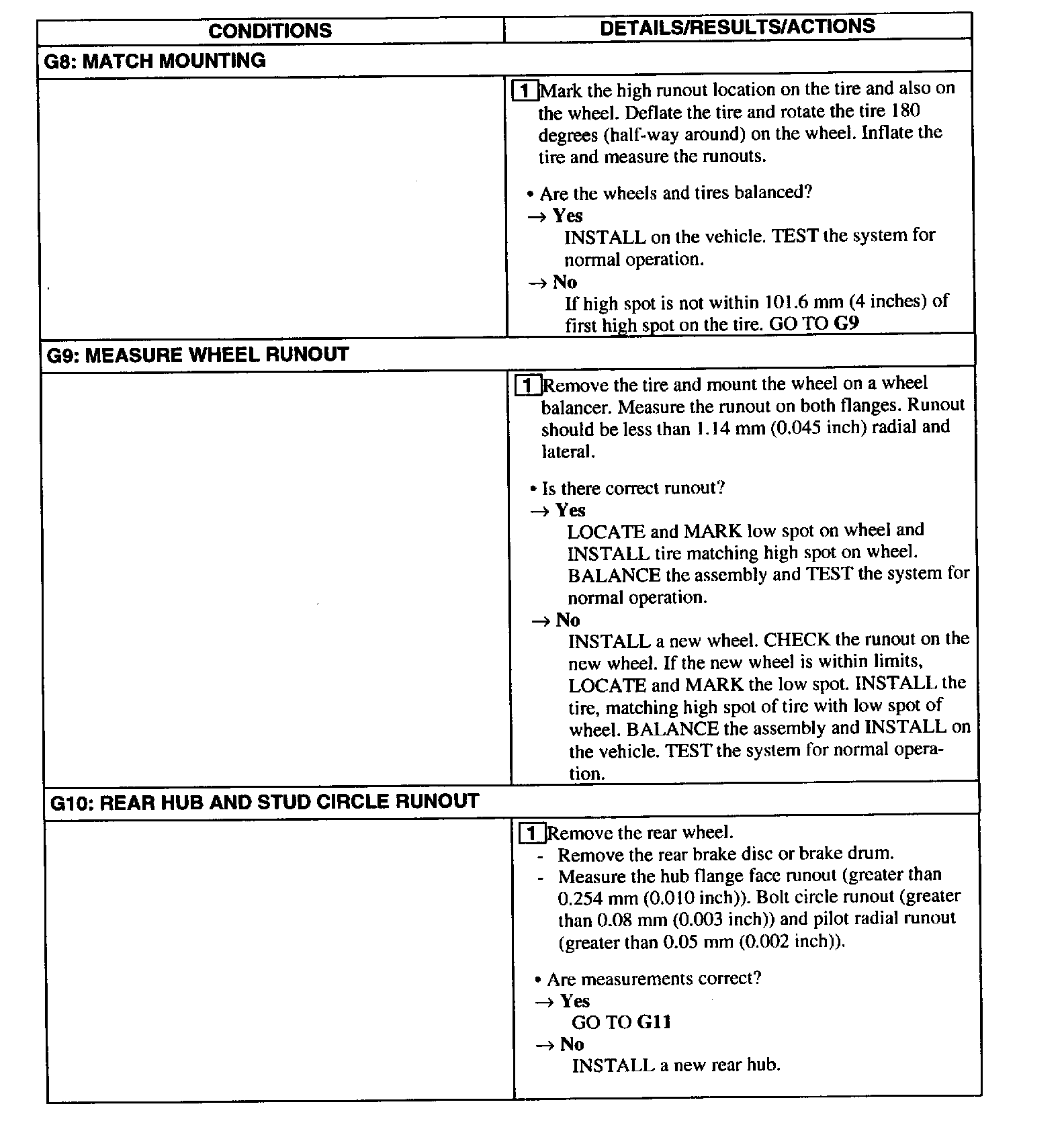

G8 - G10:





Part 4 of 5

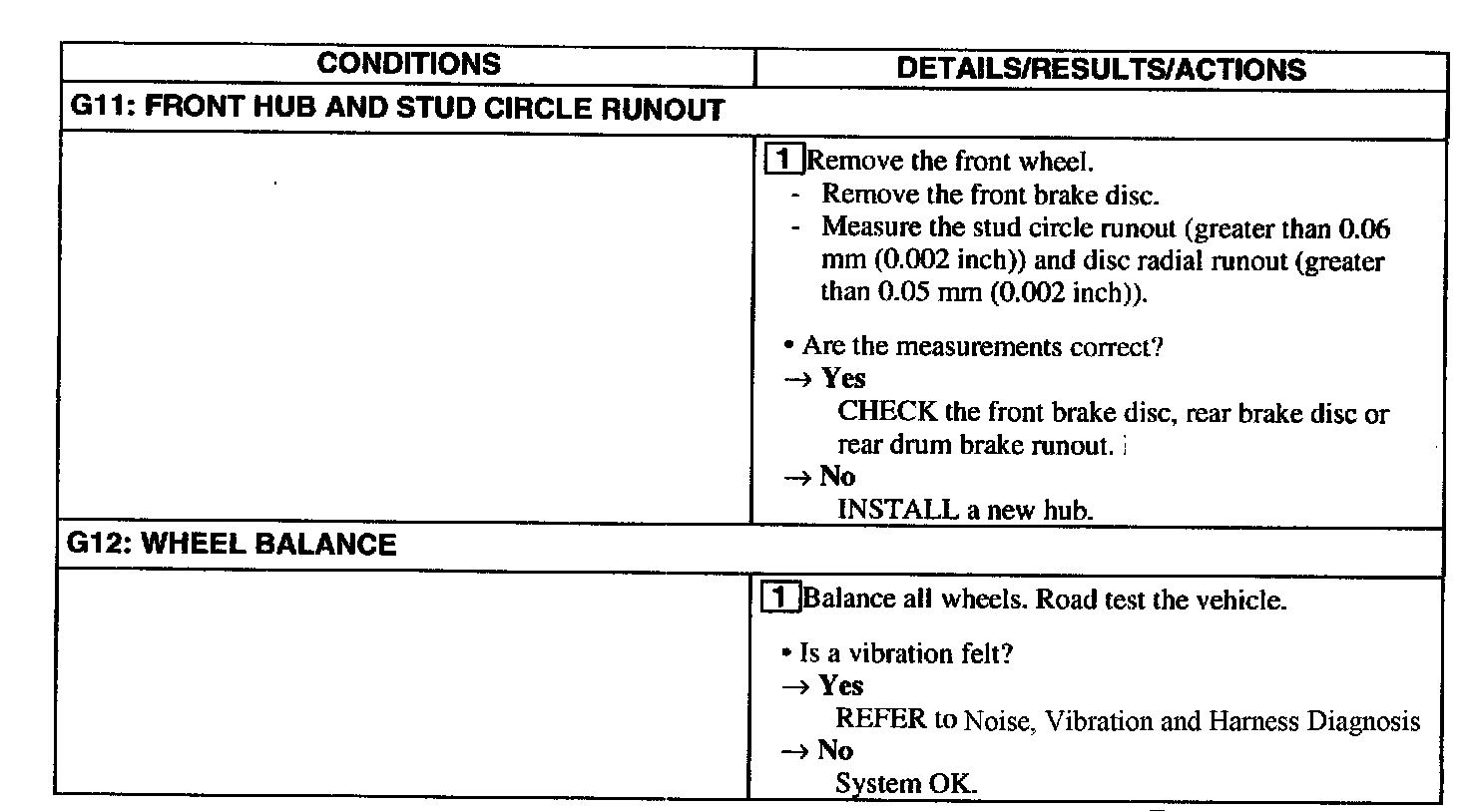

G11 - G12:





Part 5 of 5
