Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Testing and Inspection >> Pinpoint Tests >> Test B: Steering Wheel Off-Center

Test B: Steering Wheel Off-Center

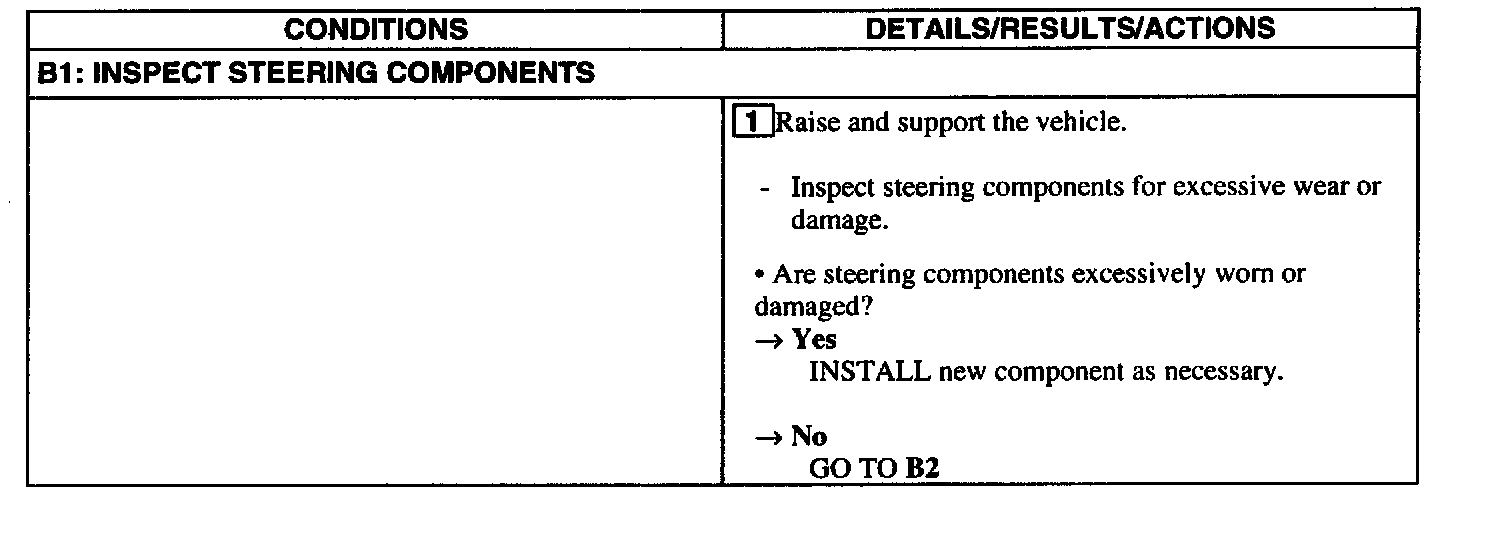

B1:





Part 1 of 2

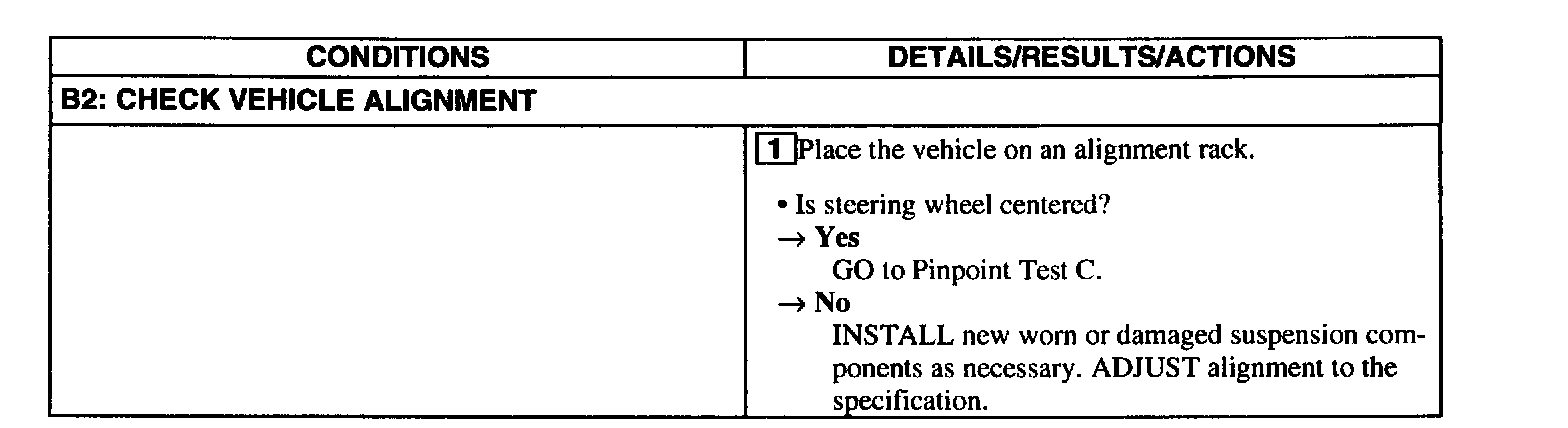

B2:





Part 2 of 2
