Power Steering Fluid Reservoir: Service and Repair

Removal





1. Detach the power steering reservoir.

2. CAUTION: If power steering fluid is spilt on the paintwork, the affected area must be immediately washed down with cold water.

Drain the fluid into a suitable container.
^ Remove the reservoir filler cap.

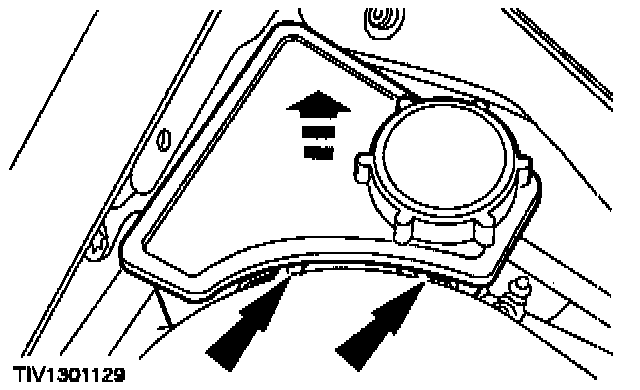

3. Remove the power steering reservoir.

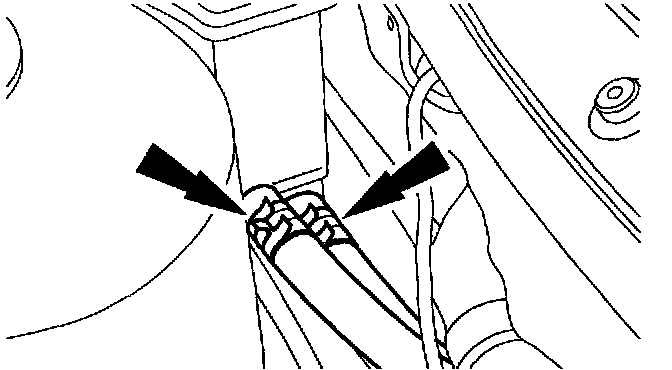

^ Disconnect the hoses.

Installation
1. To install, reverse the removal procedure.
