Central Junction Box / Passenger Compartment Fuse Panel

ALLDATA Editor's Note: Ford identifies this one component by 2 different names. Users have reported success comparing these images to determine Application/ID or Location of Fuses and Relays with the Central Junction Box/Passenger Compartment Fuse Panel.

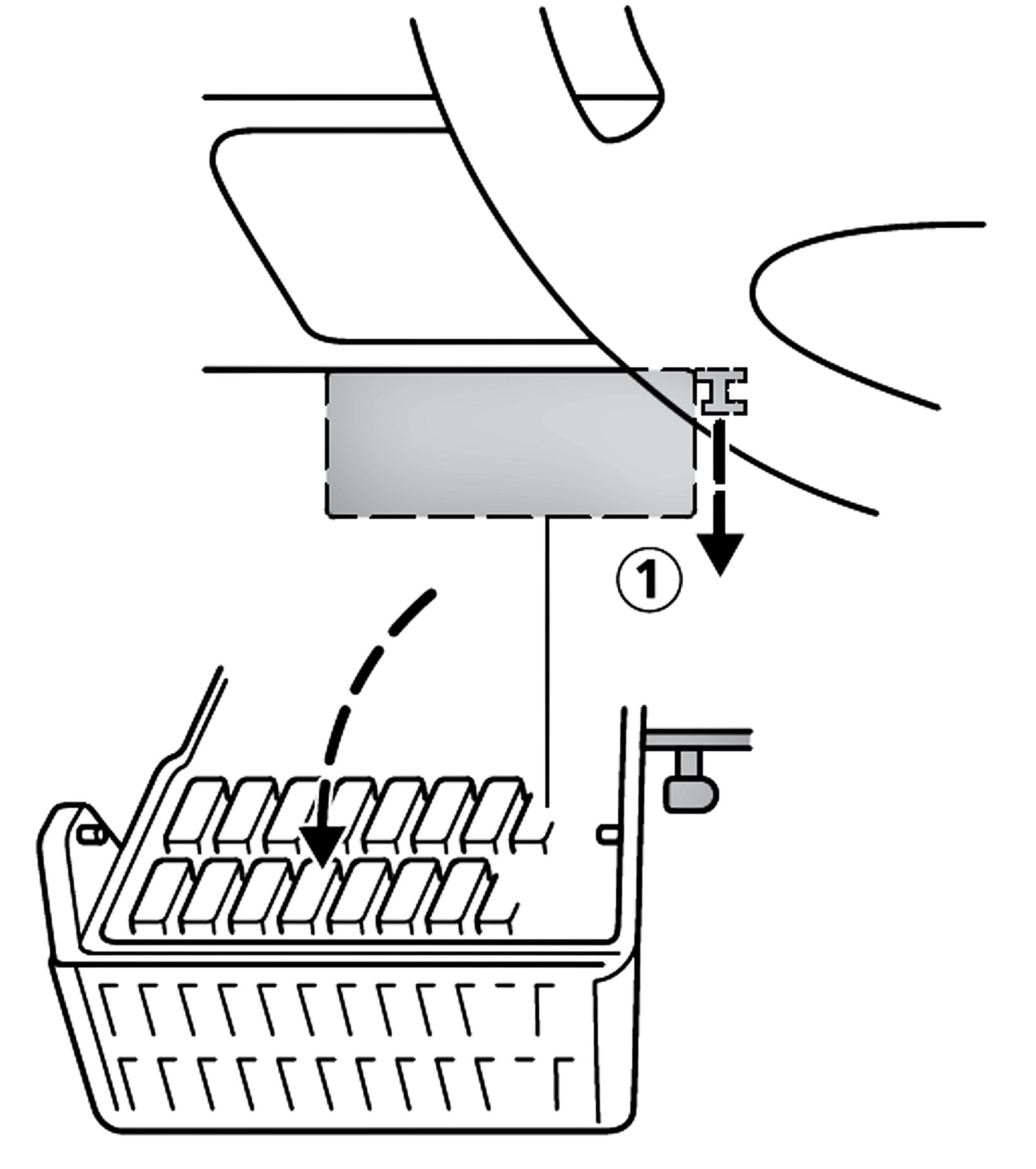

Central Junction Box / Passenger Compartment Fuse Panel - Location:

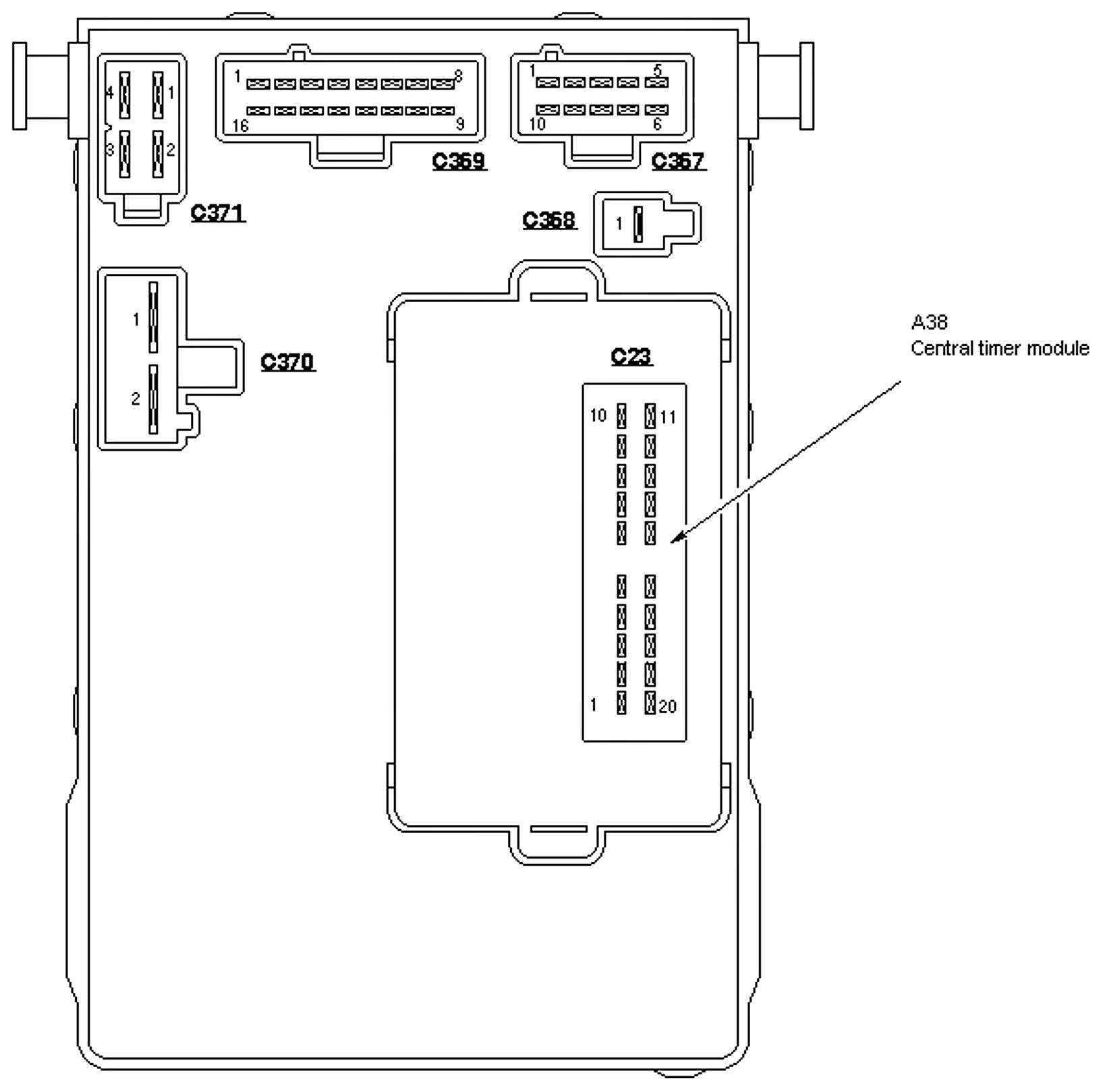

Central Junction Box / Passenger Compartment Fuse Panel:

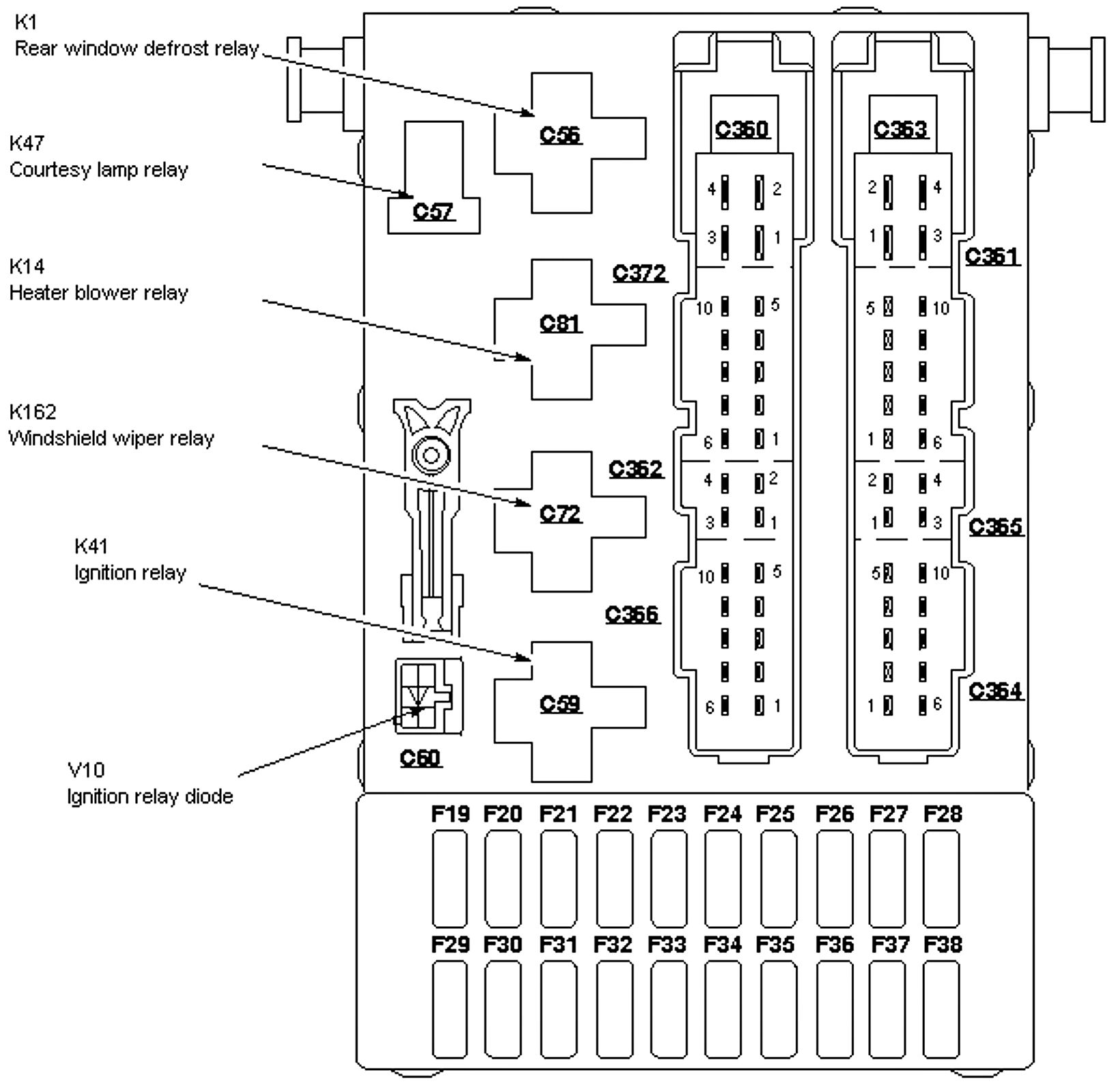

Central Junction Box / Passenger Compartment Fuse Panel - Front:





Central Junction Box / Passenger Compartment Fuse Panel - Rear:

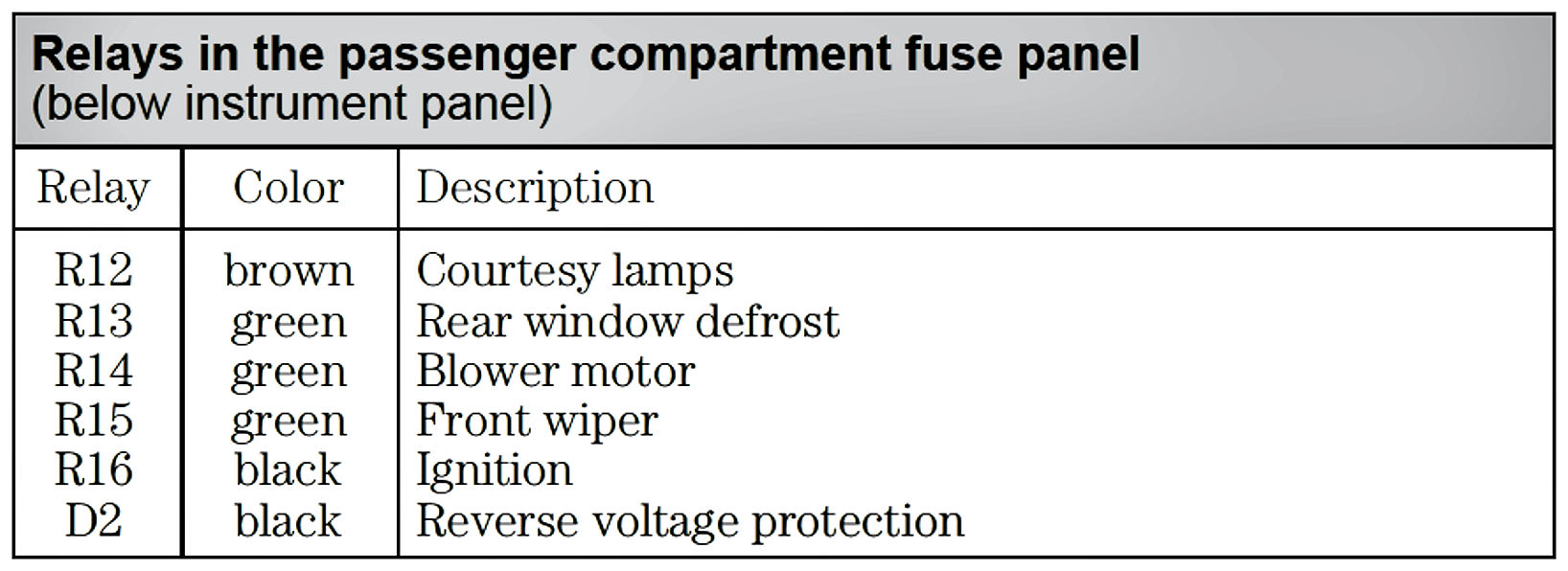

Relay:

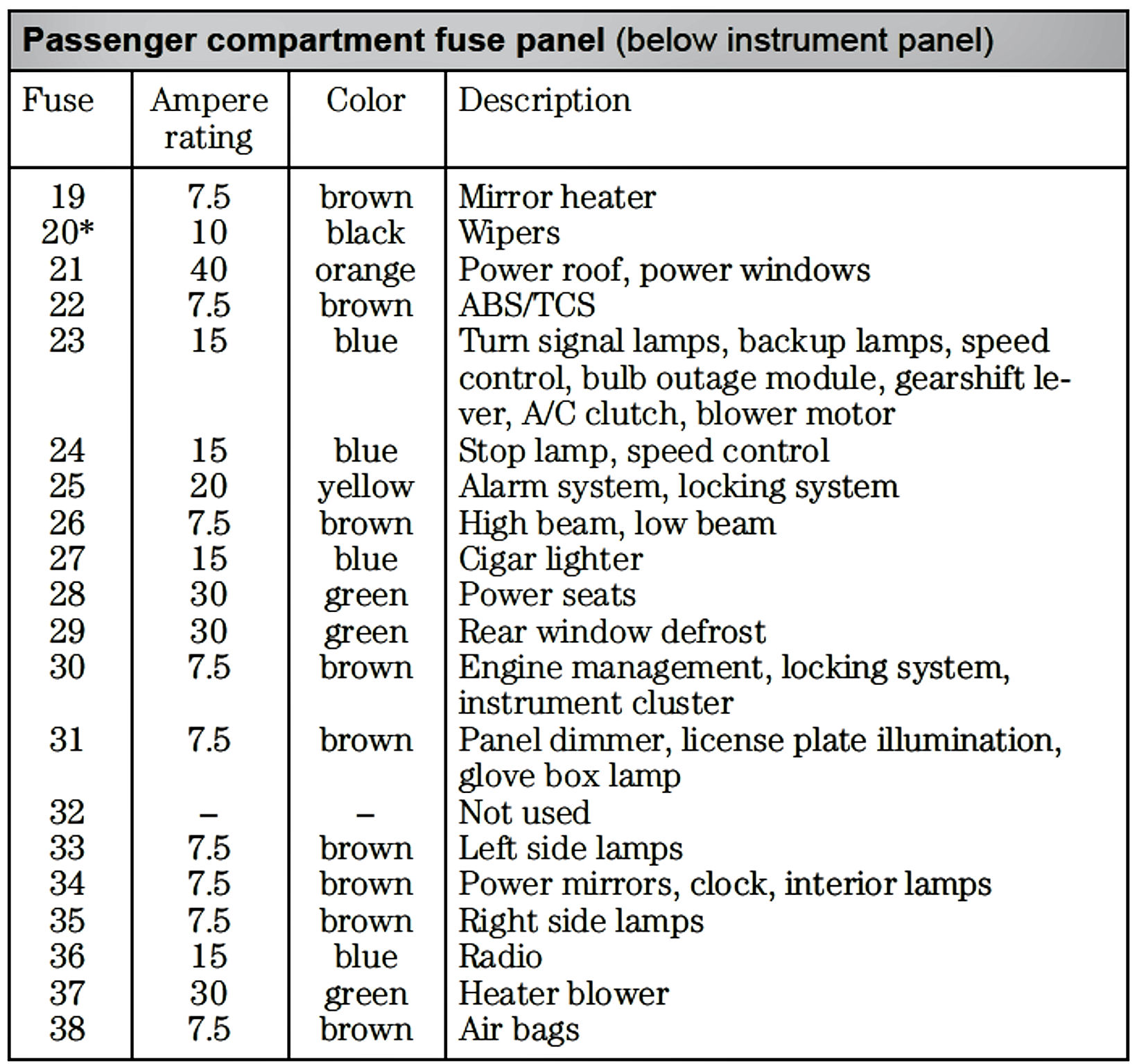

Fuse:
