High Pressure Cutoff Switch

REMOVAL

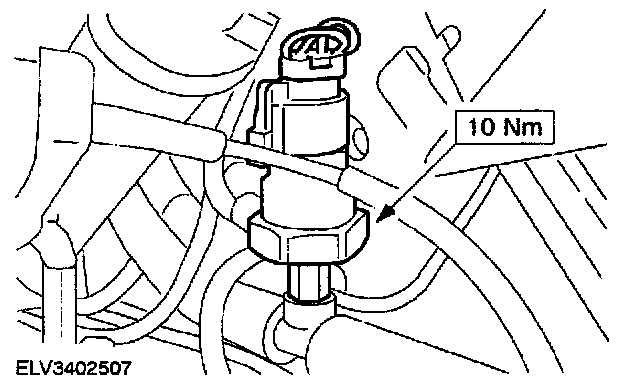

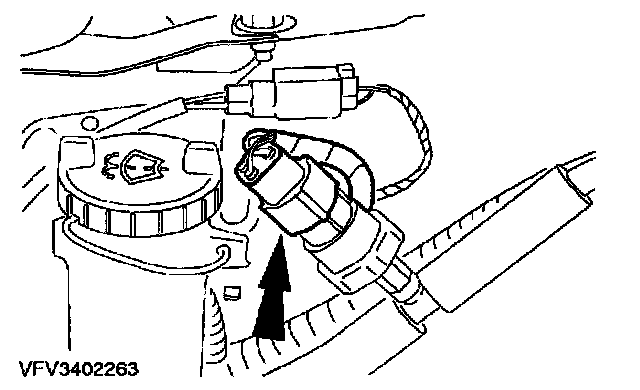

1. Disconnect the electrical connector and remove the pressure cut-off switch.

INSTALLATION







1. To install, reverse the removal procedure.
- Check the air conditioning system for normal operation.

NOTE: Install new O-ring seals and coat them with refrigerant oil.
