Without Scan Tool

The supplemental restraint system fitted to the vehicle will communicate faults/concerns by the air bag control module during a driving cycle or after initial key ON by means of a warning indicator contained within the instrument cluster.

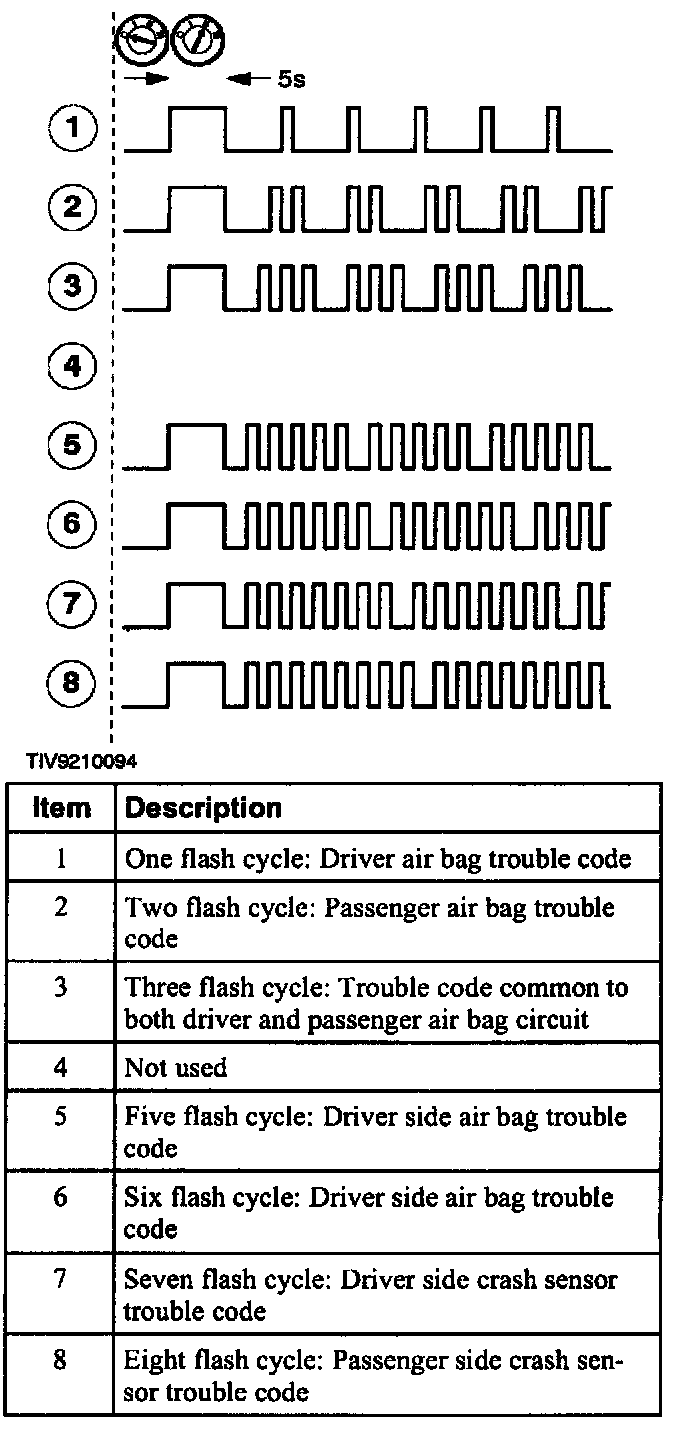

If a concern is detected, the air bag control module will communicate by flashing the warning indicator to give a Diagnostic Trouble Code (DTC).
