Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Pinpoint Tests >> Test L: Driver Side Satellite Communication Circuit Short to Ground

Test L: Driver Side Satellite Communication Circuit Short to Ground

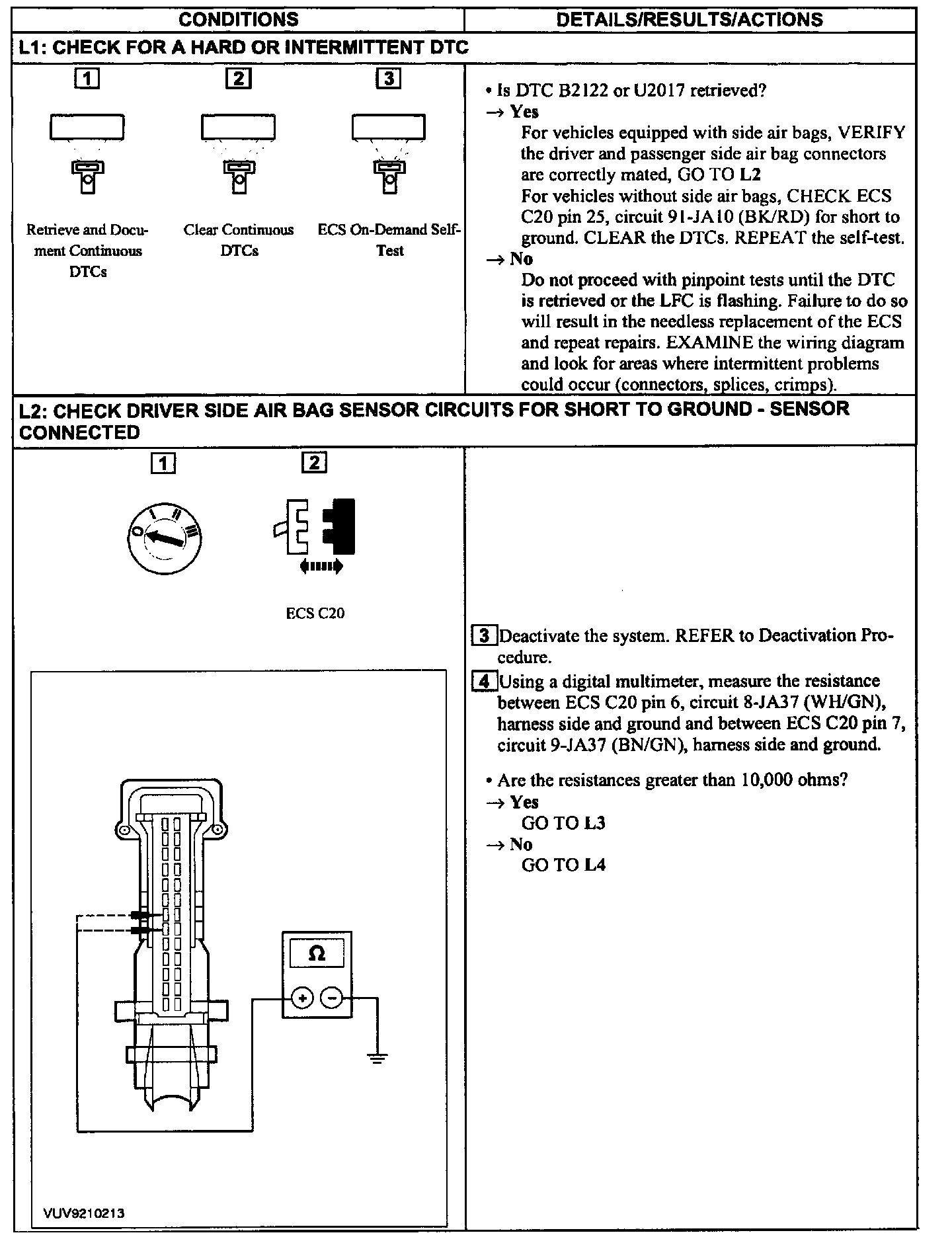

L1 - L2:

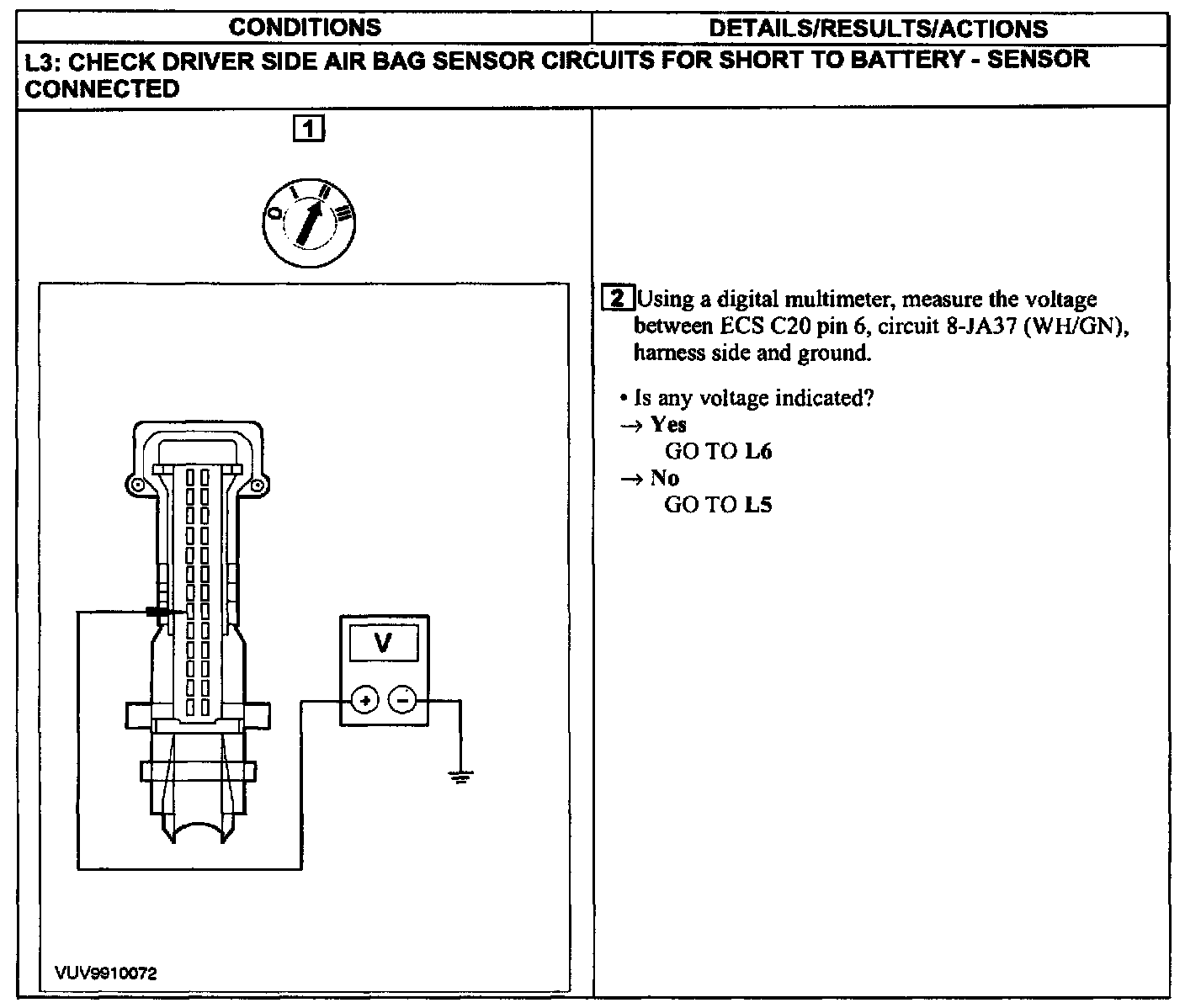

L3:

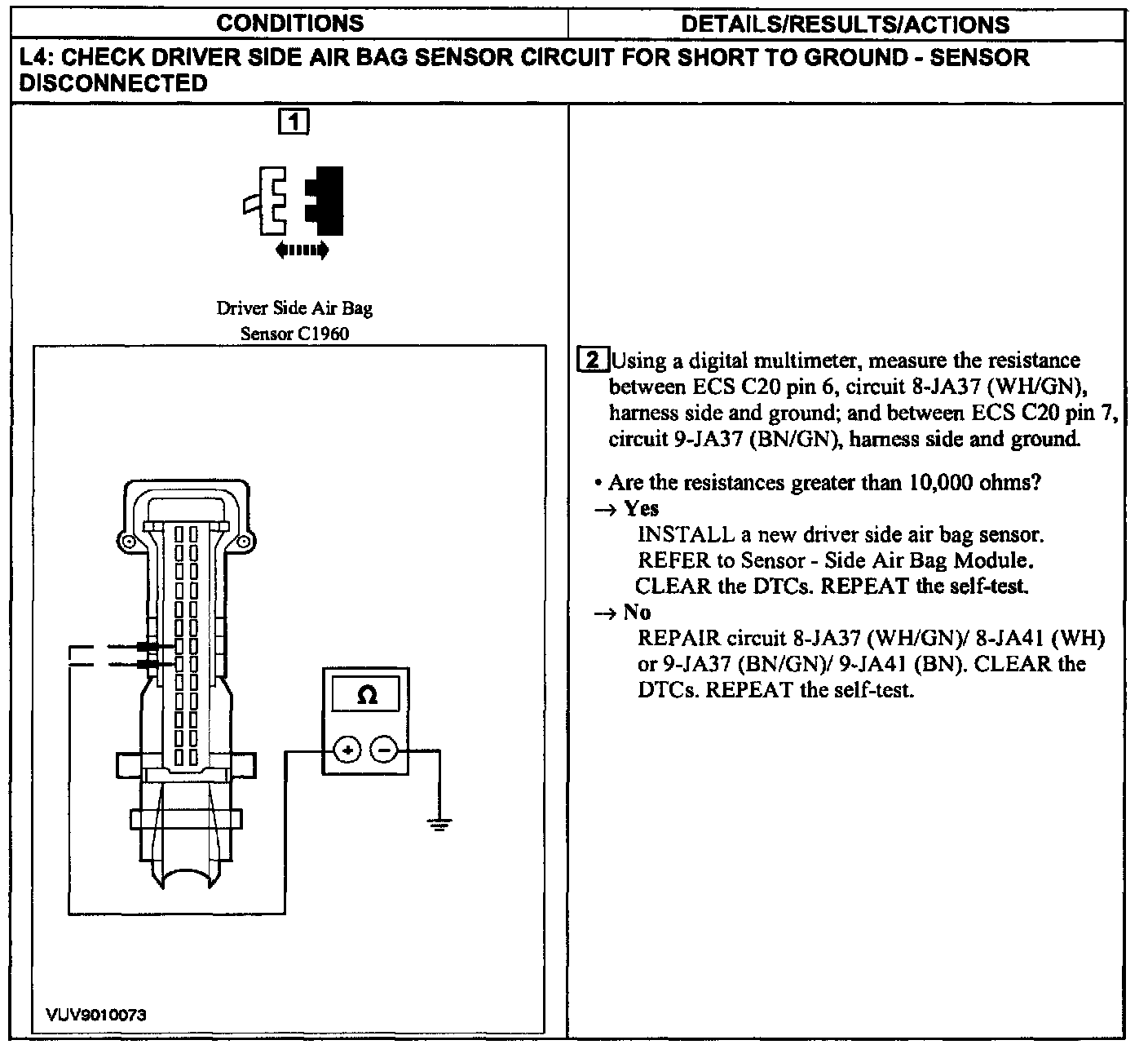

L4:

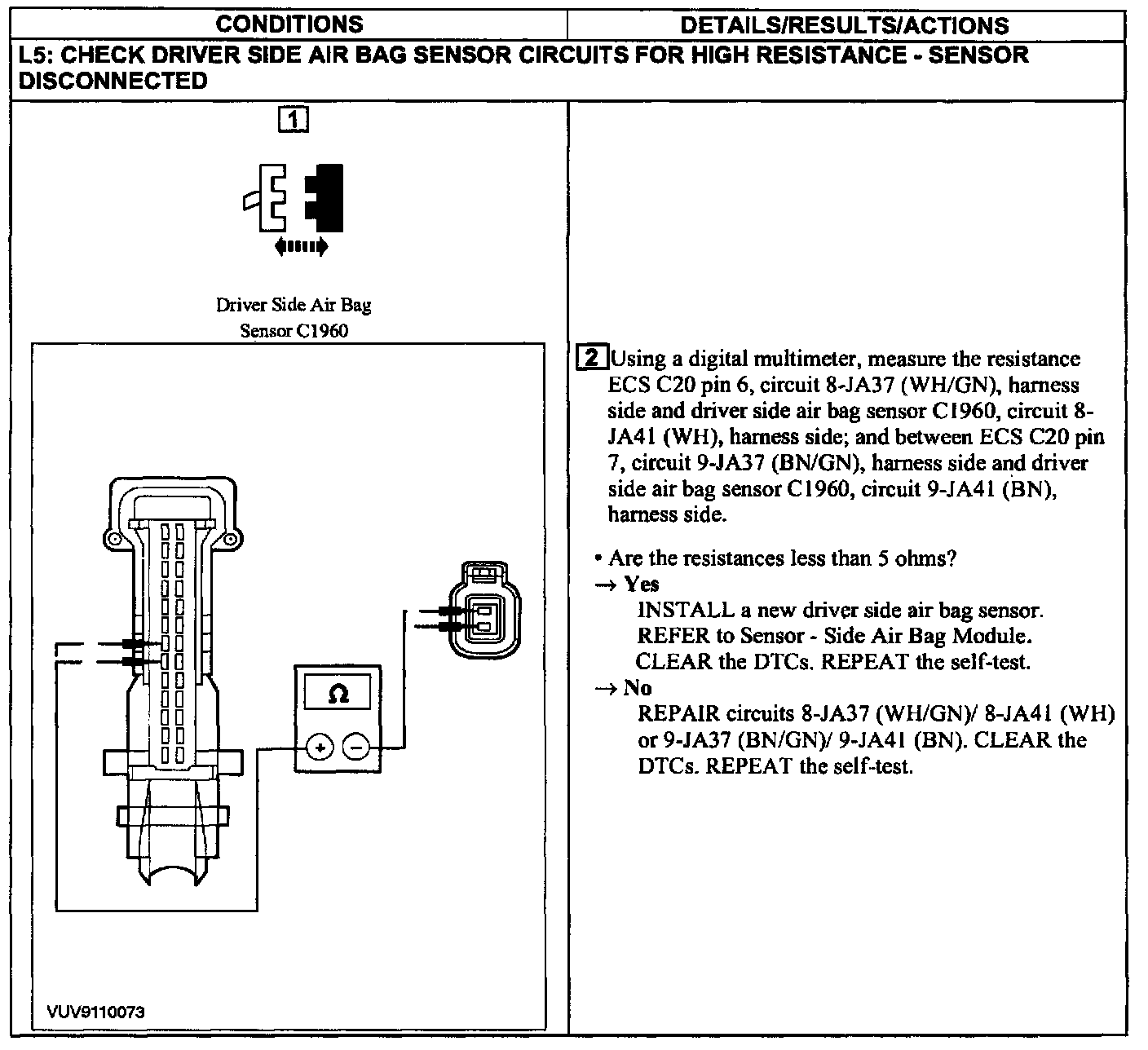

L5:

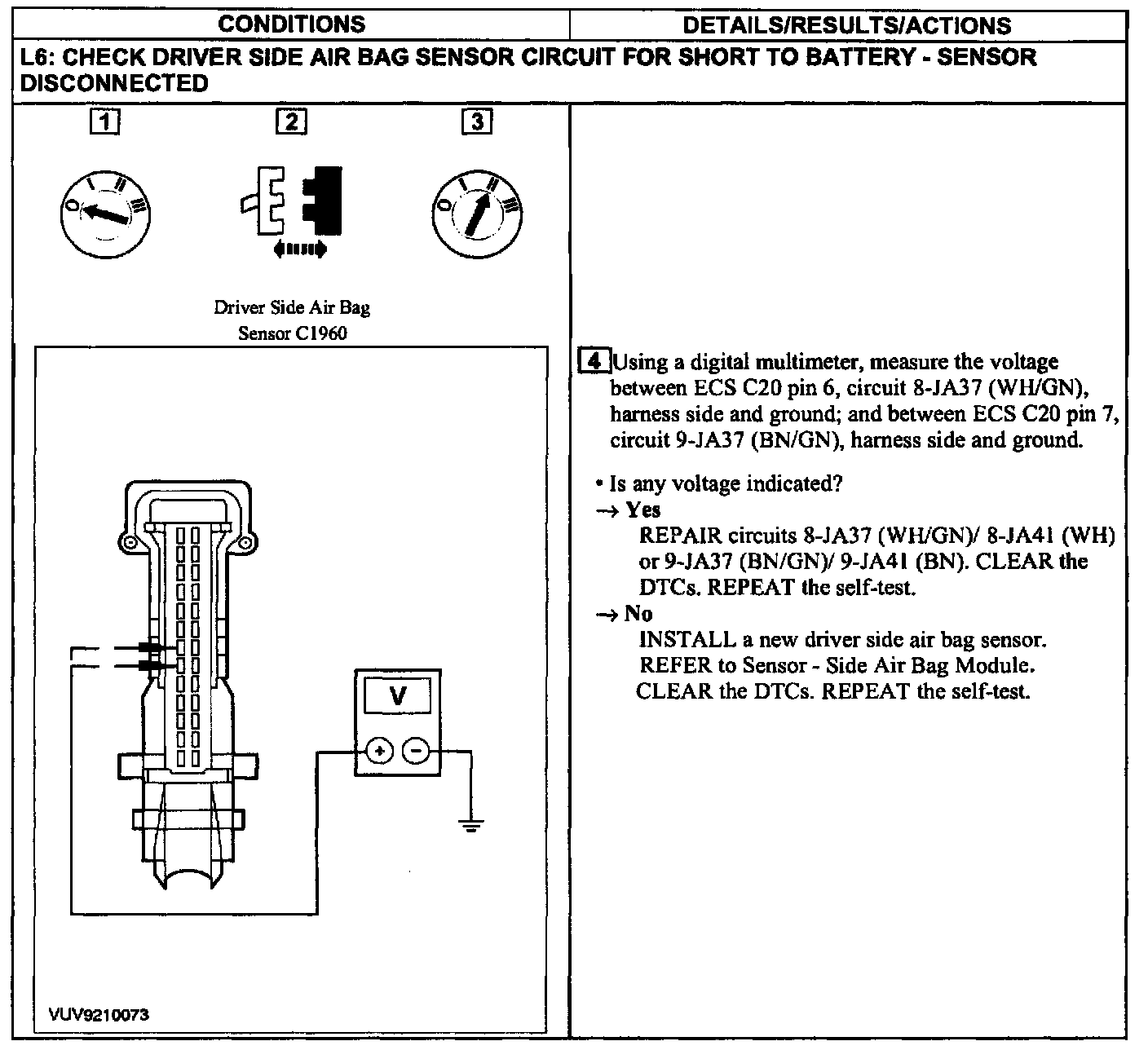

L6:
