Coil Bracket

REMOVAL
1. Remove the air cleaner. For additional information, refer to Fuel delivery and Air Induction.
2. Remove the ignition coil. For additional information, refer to Ignition Coil.







3. Remove the cable tie which retains the the ignition coil wiring harness to the ignition coil bracket.







4. Disconnect the radio suppressor electrical connector.







5. Detach the crankshaft position sensor and camshaft position sensor wiring harness from the ignition coil bracket.

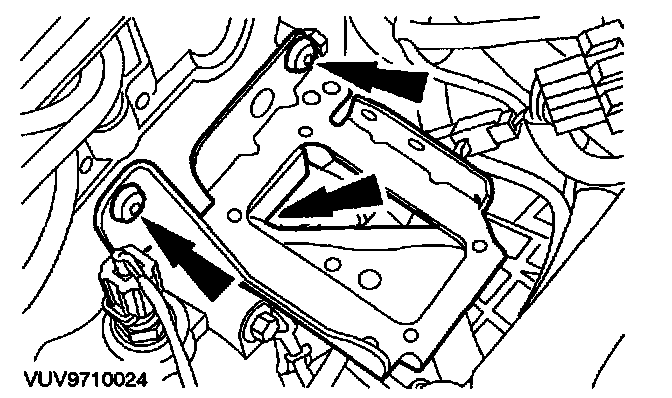

6. Remove the ignition coil bracket.

INSTALLATION

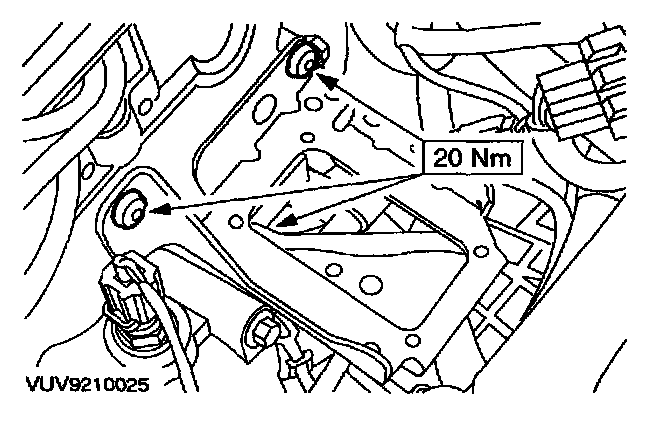

1. To install, reverse the removal procedure.
