Fuel Injector Wiring Harness: Service and Repair

REMOVAL
1. Disconnect the battery ground cable.







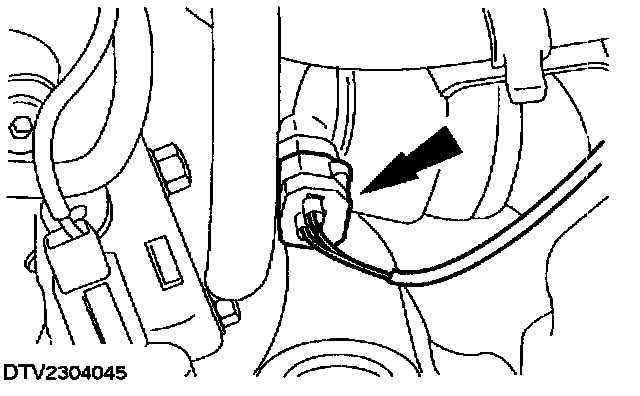

2. Disconnect the camshaft position sensor electrical connector.







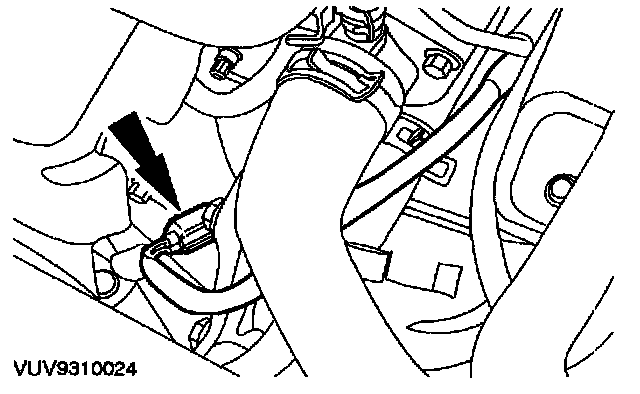

3. Disconnect the engine coolant temperature sensor electrical connector.







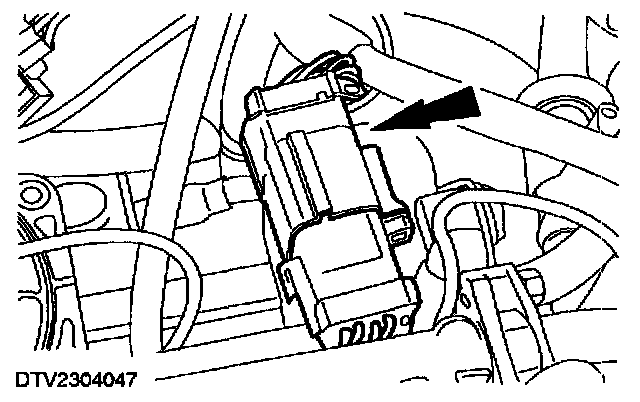

4. Disconnect the idle air control valve electrical connector.







5. Remove the variable camshaft timing solenoid electrical connector grommet from the engine cover.







6. Disconnect the variable camshaft timing solenoid electrical connector.







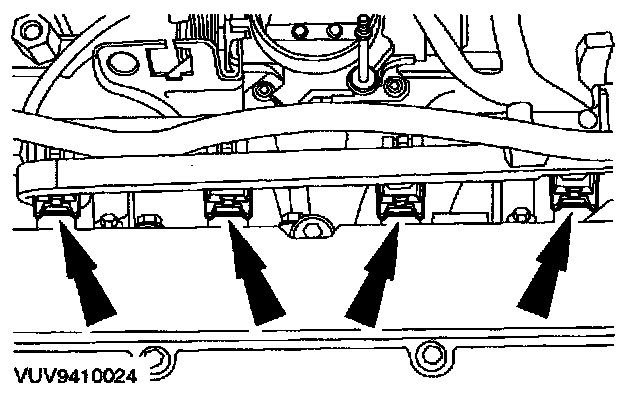

7. Disconnect the fuel injector electrical connectors.

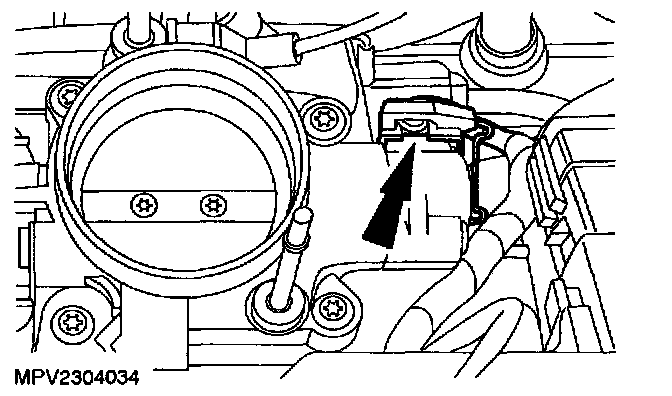

8. Disconnect the throttle position sensor electrical connector.







9. Disconnect the crankshaft position sensor electrical connector.







10. Disconnect the fuel injection wiring harness electrical connector.
11. Remove the fuel injection wiring harness.

INSTALLATION
1. To install, reverse the removal procedure.
