EGR Electronic Vacuum Regulator Solenoid: Service and Repair

REMOVAL

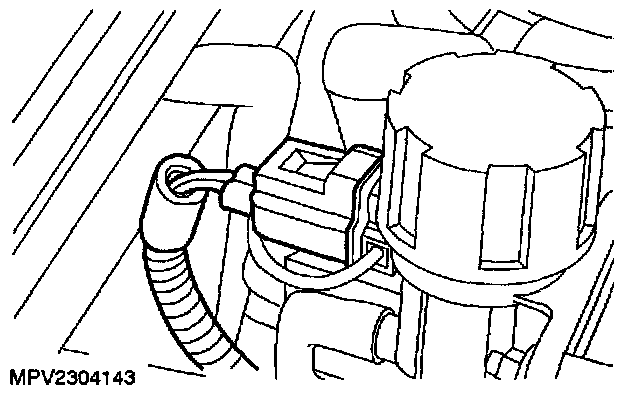

1. Disconnect the EGR vacuum regulator valve electrical connector.

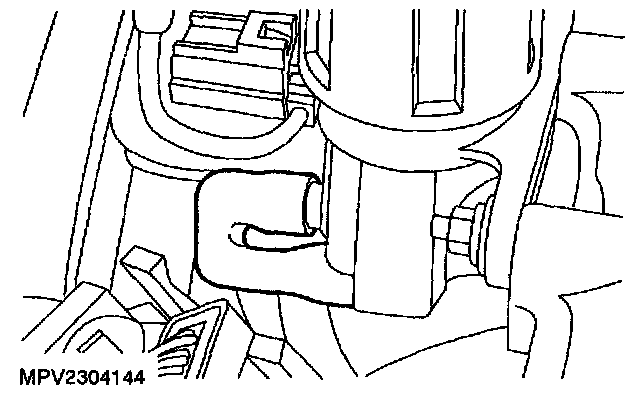

2. Disconnect the vacuum hose connector from the EGR vacuum regulator valve.

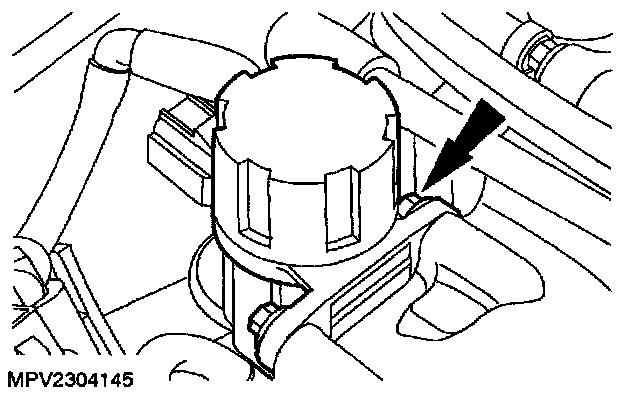

3. Remove the EGR vacuum regulator valve.


INSTALLATION

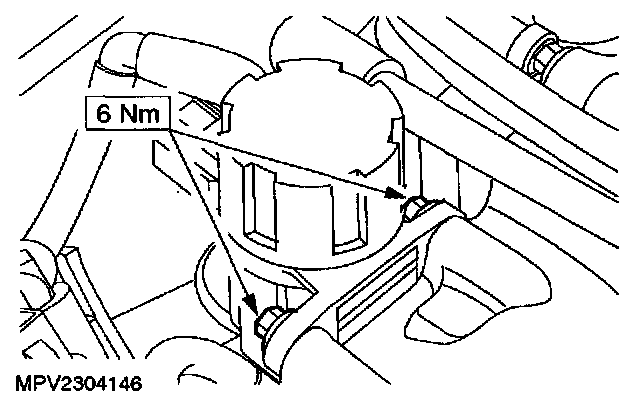

1. To install, reverse the removal procedure.
