Dual Converter Y-Pipe
Removal1. Raise and support the vehicle.

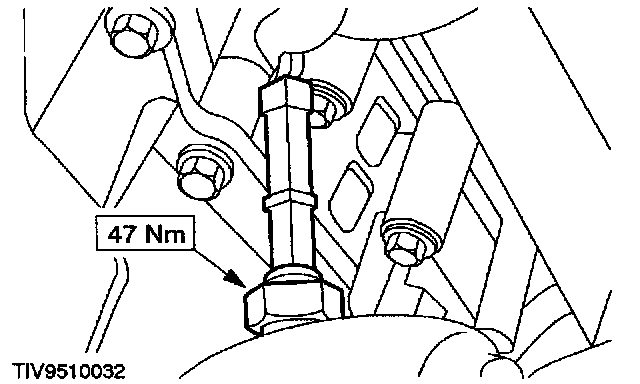

2. Disconnect the Catalyst Monitor Sensor (CMS).
1. Unclip the wiring harness.
2. Disconnect the CMS.
3. Remove the CMS.
4. Note: Manual transaxle vehicle shown, automatic similar.

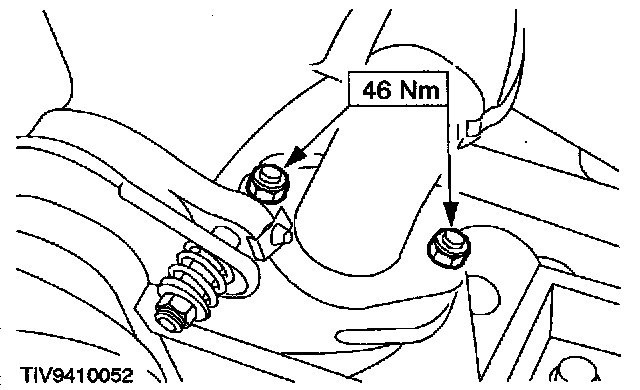

Remove the catalytic converter left-hand flange nuts.
5. Remove the catalytic converter right-hand flange nuts.
Vehicles With Manual Transaxle
6. Remove the secondary catalytic converter inlet flange nuts.
Vehicles With Automatic Transaxle

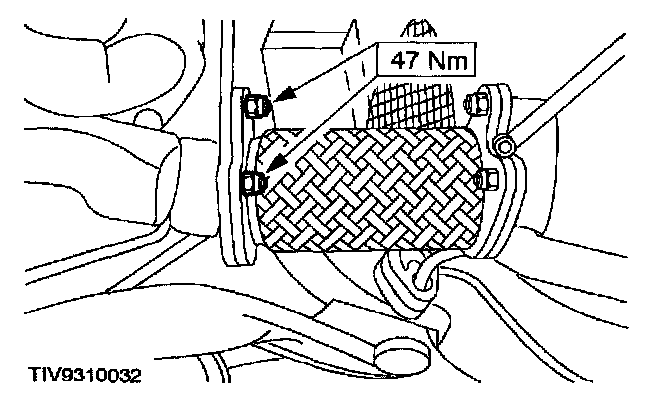

7. Remove the flexible pipe inlet flange nuts.
^ Remove the three nuts.
All Vehicles
8. Remove the dual converter Y-pipe bracket nut.
9. Remove the dual converter Y-pipe.
Installation
1. To install, reverse the removal procedure.
Vehicles With Automatic Transaxle
Vehicles With Manual Transaxle
All Vehicles
