Tests HK: Variable Cam Timing (VCT)




NOTE
This Pinpoint Test is intended to diagnose the following:
- Powertrain Control Module (PCM)
- Harness circuits: VCT and VPWR
- VCT Solenoid

Pinpoint Test Schematic

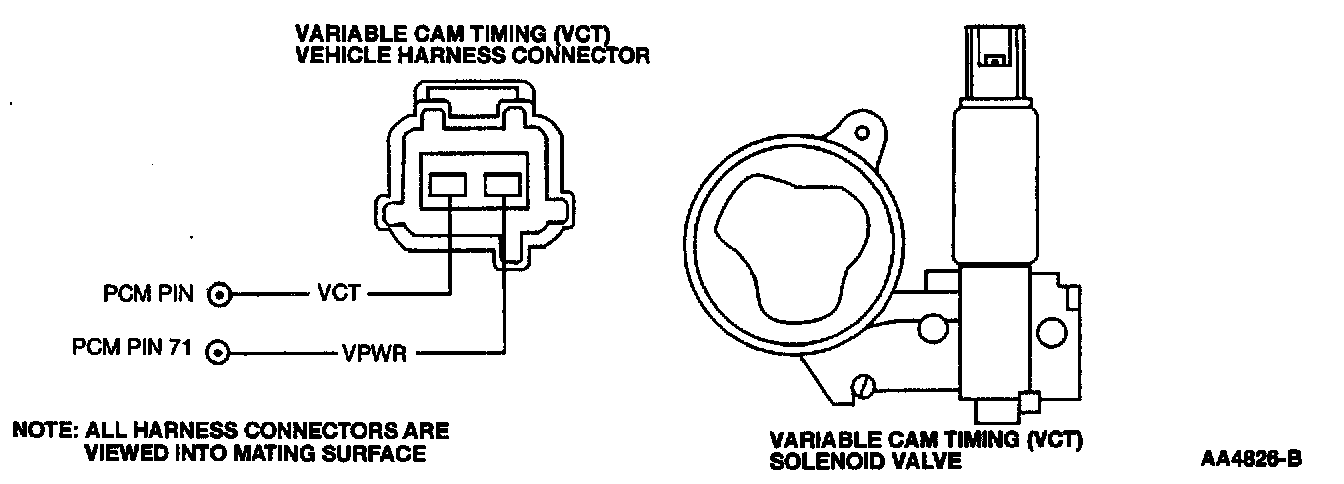

Variable Cam Timing Harness and Solenoid Valve Connectors:

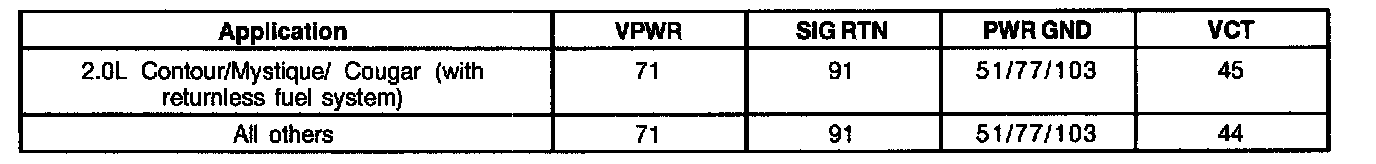

PCM Connector Pinout:

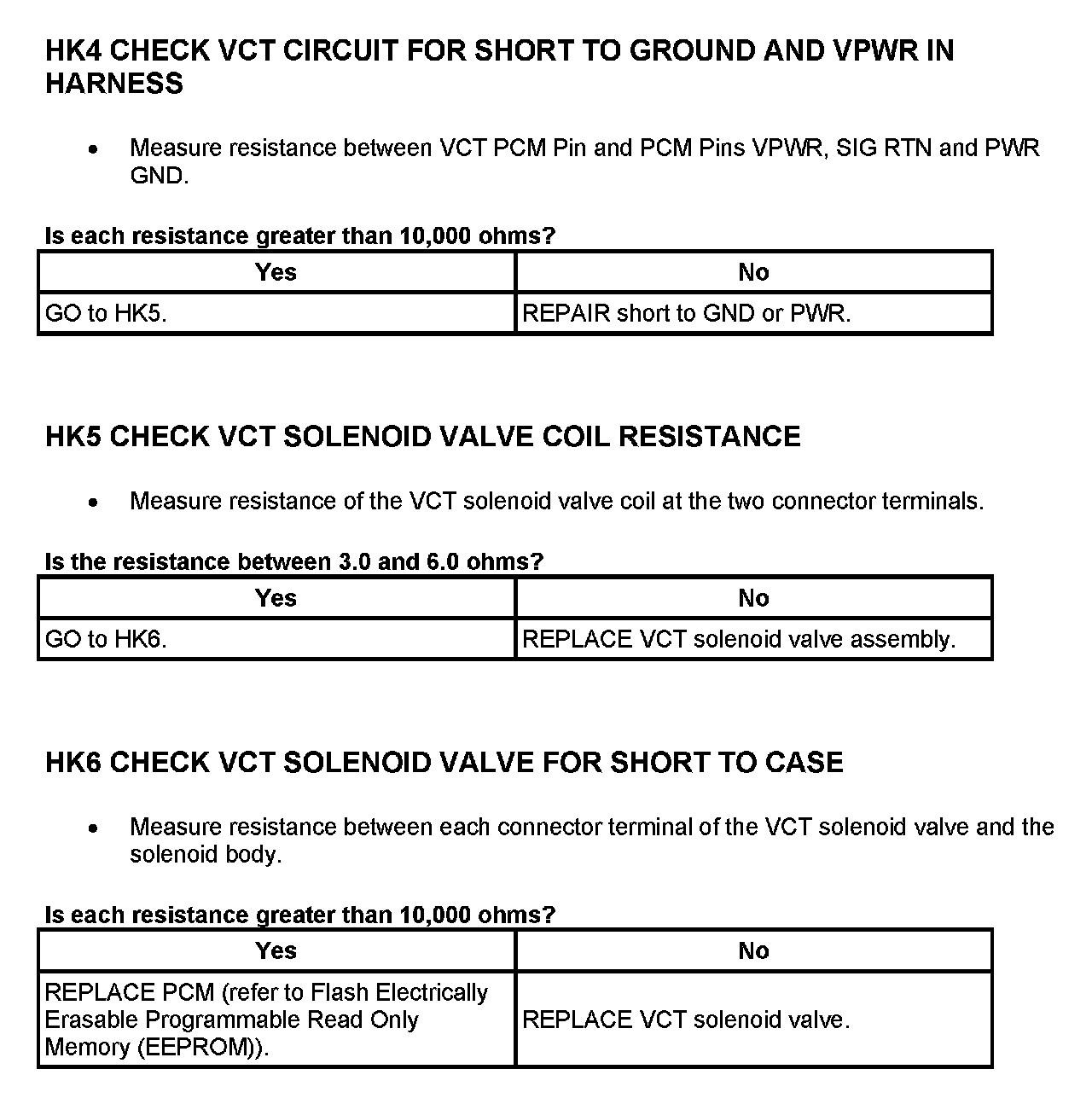

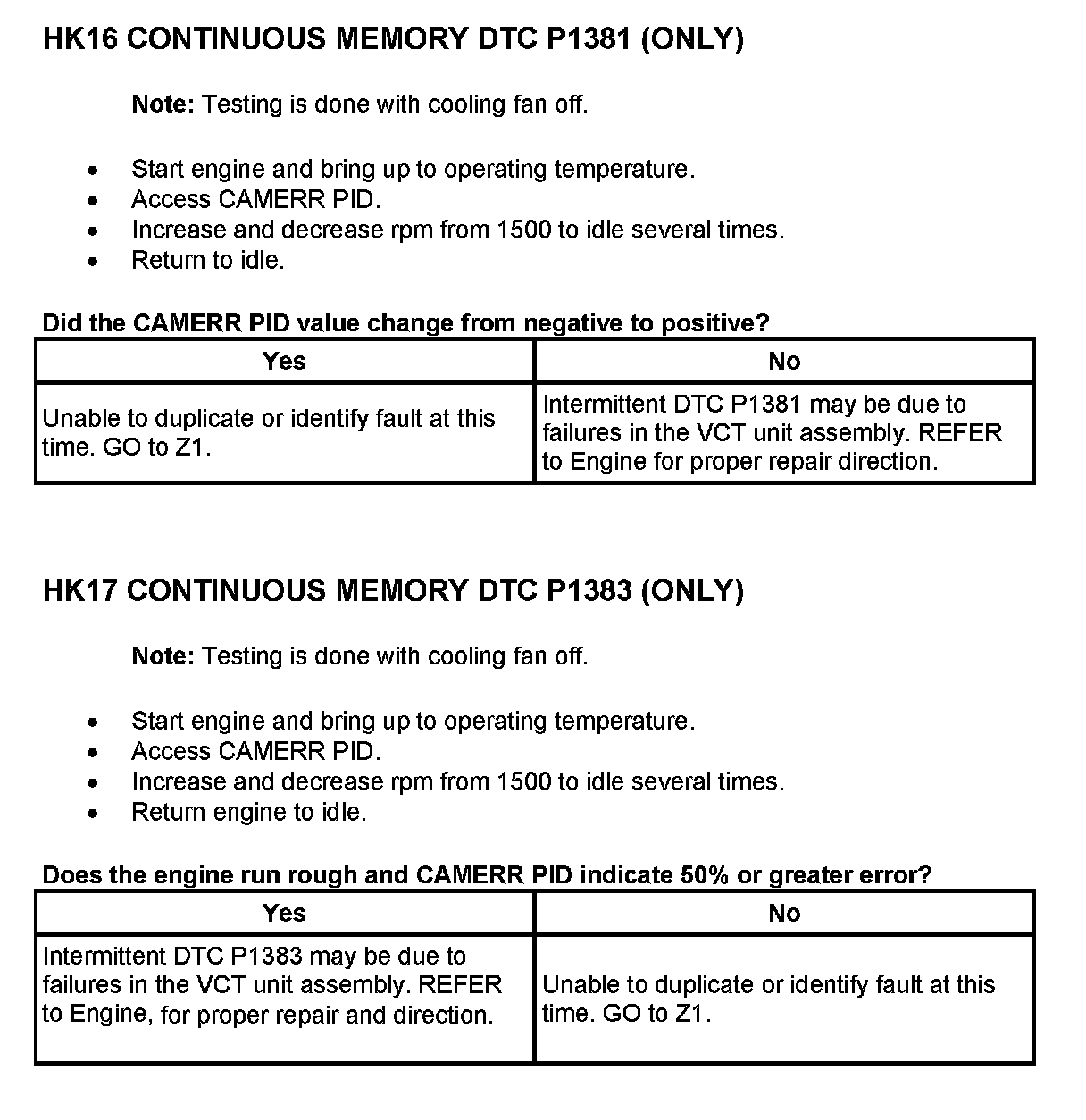

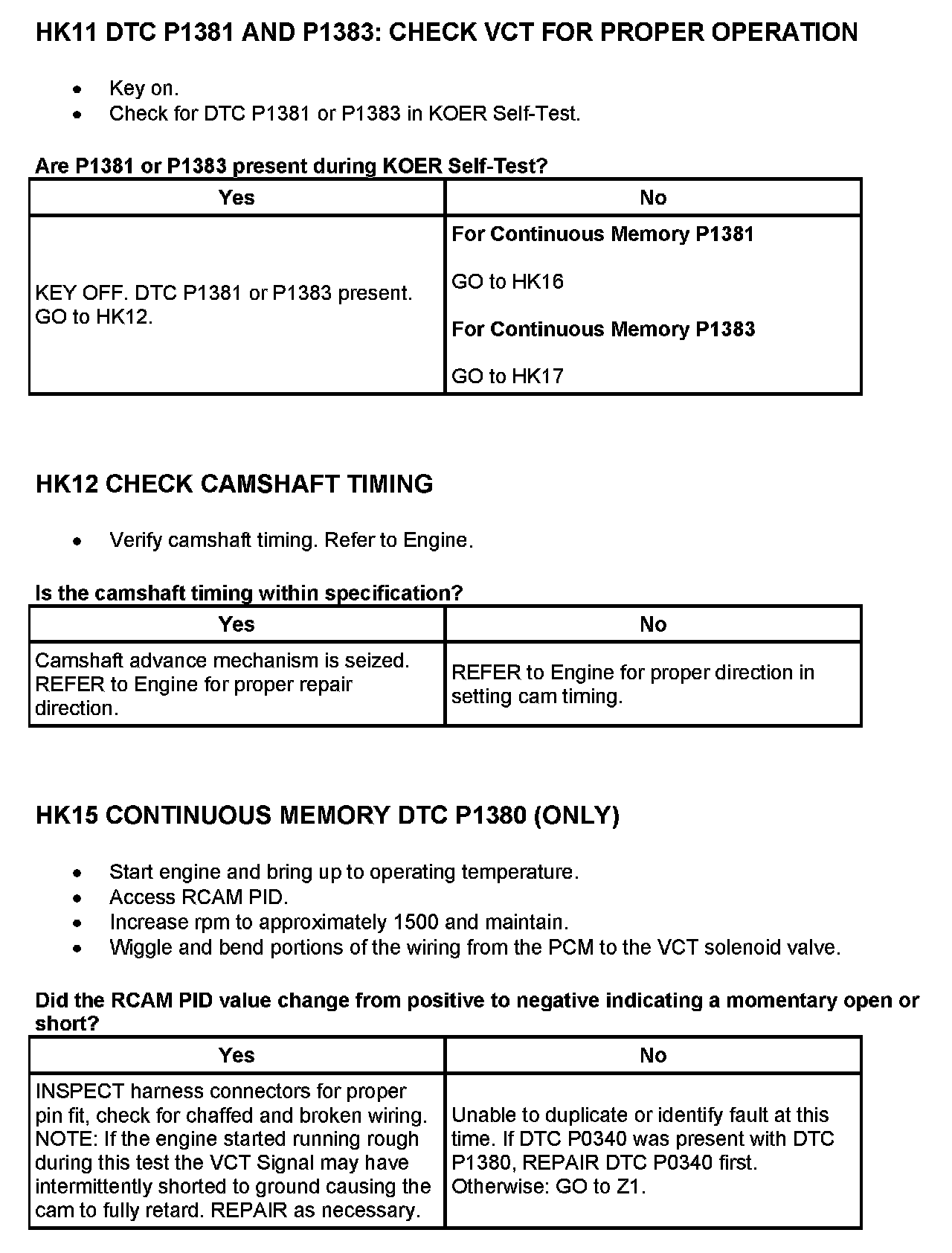

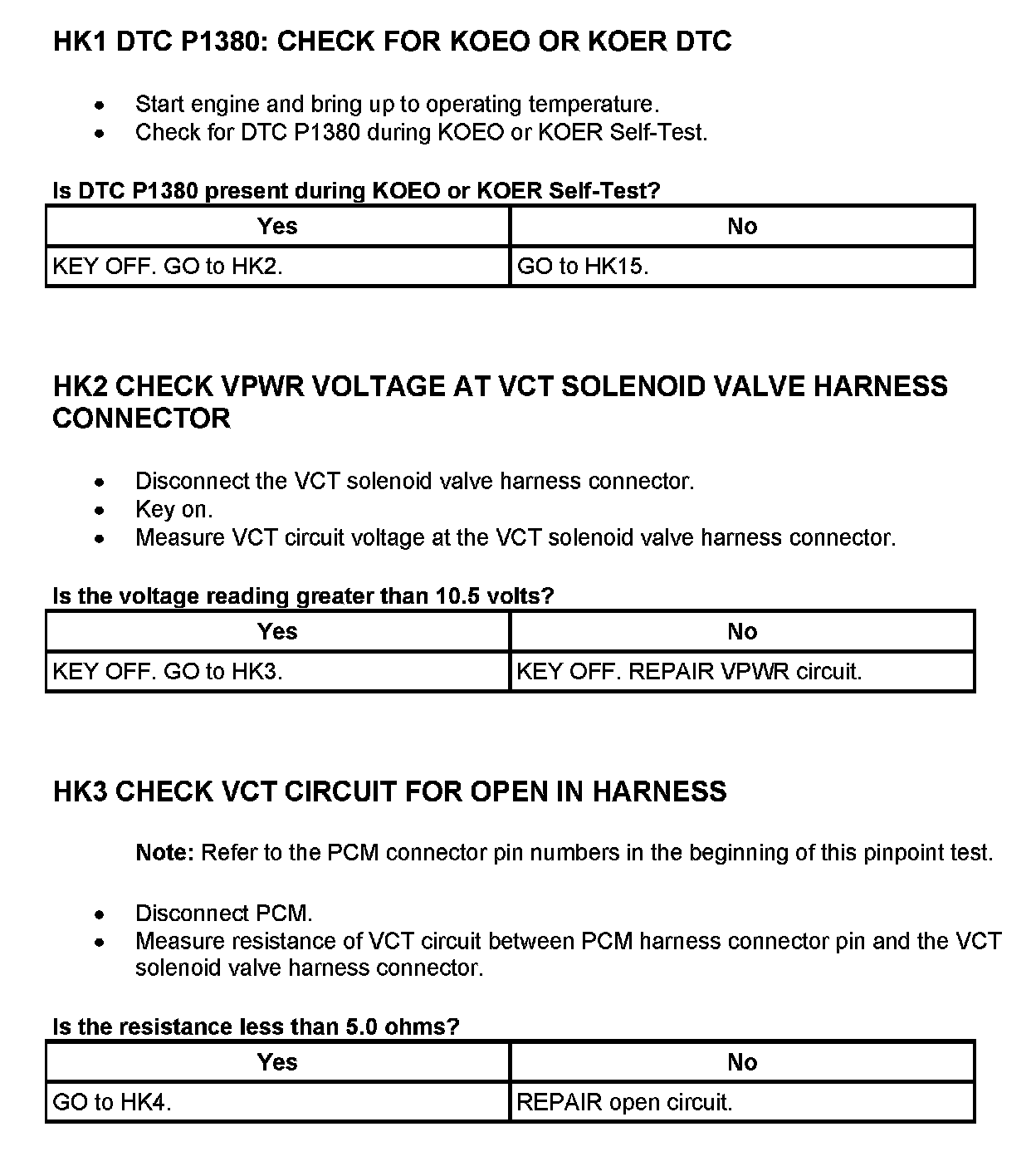

Pinpoint Tests
