Non-Module Communication Circuit Wiring Repair

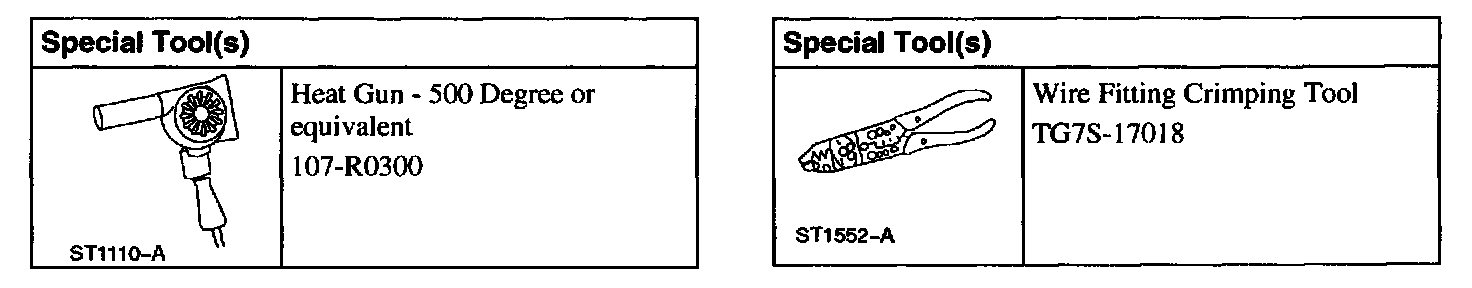

SPECIAL SERVICE TOOLS(S)

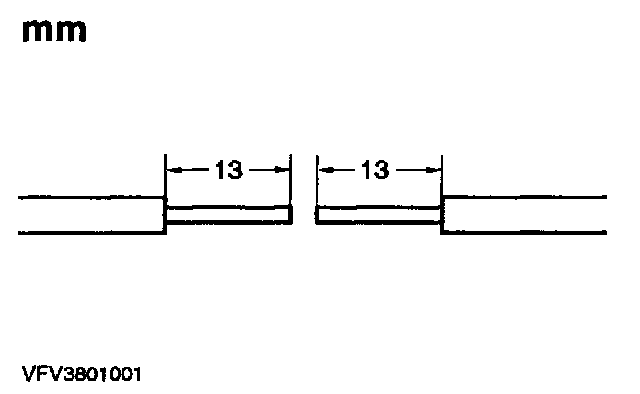

1. Remove the insulation from the two wire ends.







2. Slide a piece of heat-shrink sleeving over one of the wire ends.

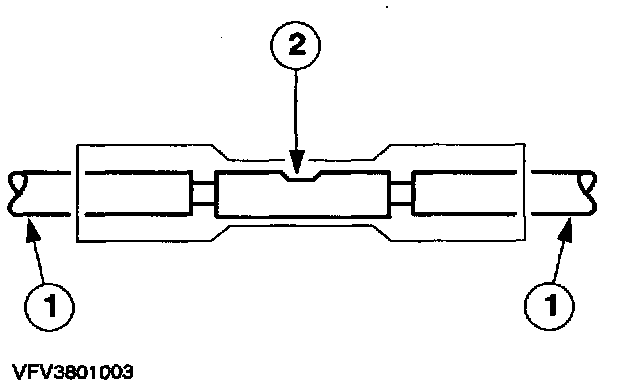

3. Insert the stripped ends (1) in the crimp connector (2).

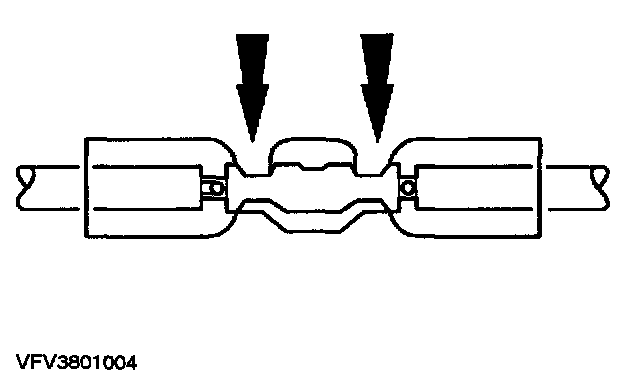

4. Make the connection with the crimping tool.

NOTE: When crimping a connector, make sure that the connector is the correct diameter for the wine and that a matching crimping tool is used. After crimping, test the joint by taking one wire in each hand and pulling.

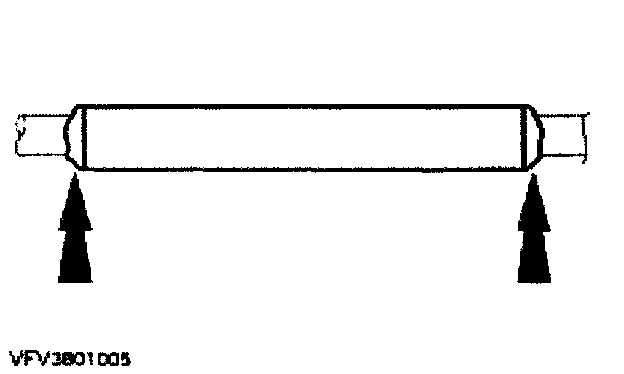

5. Slide the heat-shrink sleeving over the connection and heat it with a hot air blower until the sleeving fits closely around the connection and wax is coming out at both ends.

NOTE: Choose the length of the heat-shrink sleeving so that it extends over the cable insulation by about 15 mm on both sides.
