Headlamp Bulb: Service and Repair

REMOVAL
1. Remove the headlamp assembly.

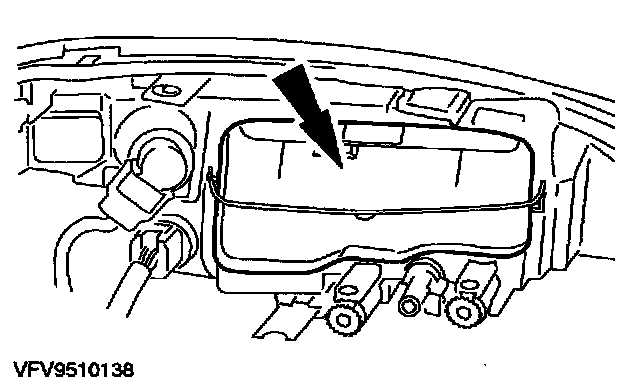

2. Remove the cover.

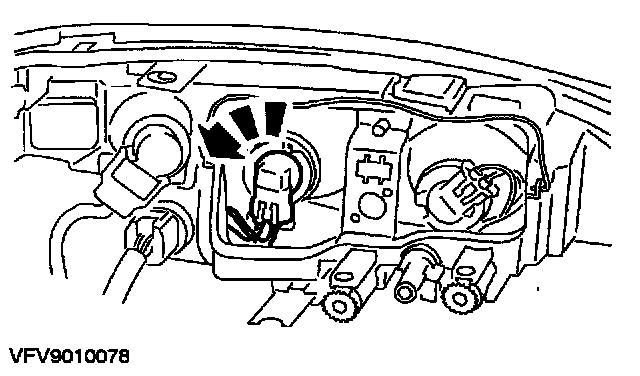

3. Remove the headlamp bulb (low beam bulb shown).

CAUTION: Do not touch the glass of the bulb with your fingers.

INSTALLATION
1. To install, reverse the removal procedure.
^ Check the headlamp adjustment. For additional information, refer to Headlamp Adjustment. Adjustments

CAUTION: Do not touch the glass of the bulb with your fingers.
