Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Lighting and Horns >> Brake Lamp >> Testing and Inspection >> Pinpoint Tests >> Test J: One or More Stop Lamps Are ON Continuously

Test J: One or More Stop Lamps Are ON Continuously

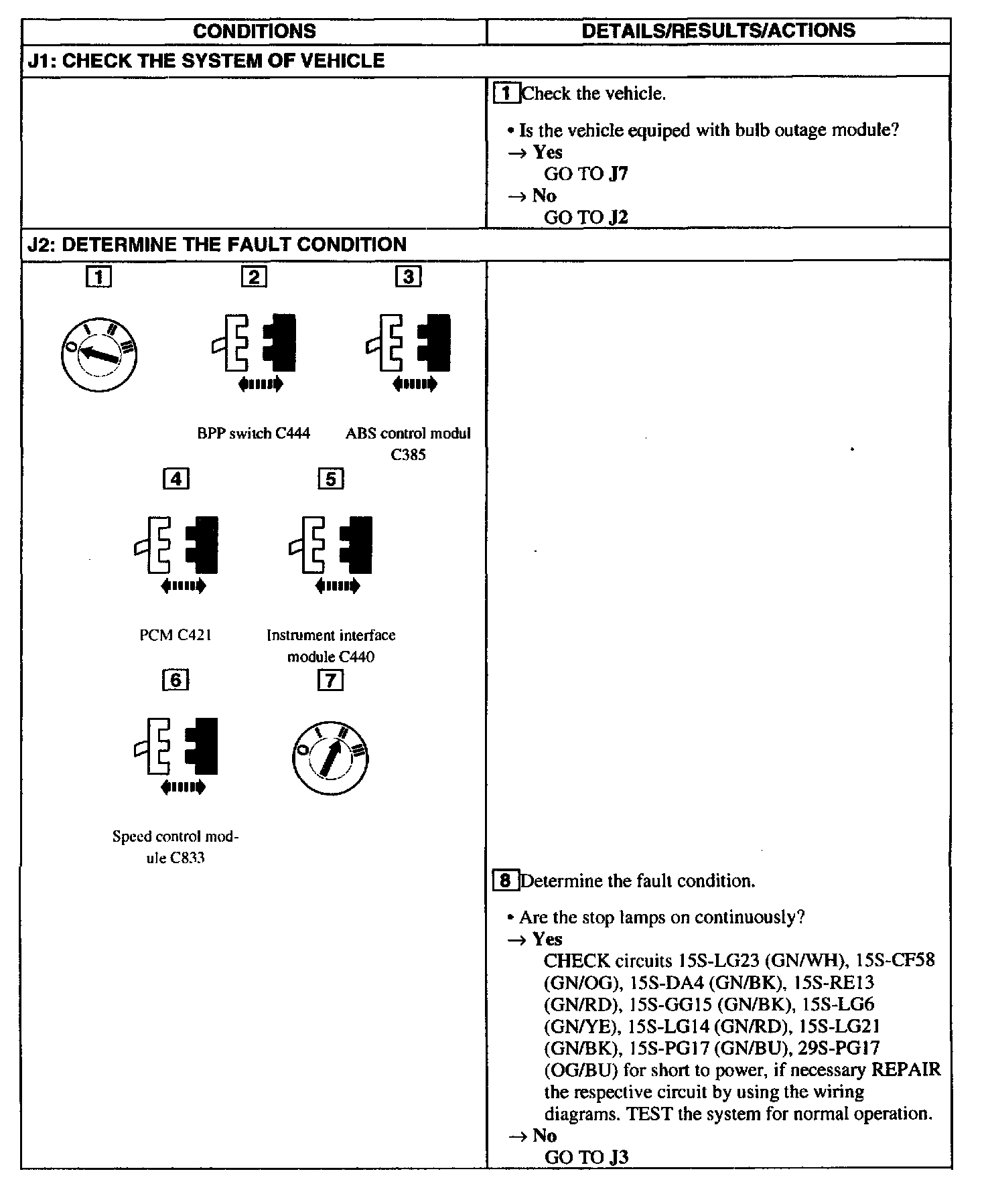

J1 - J2:

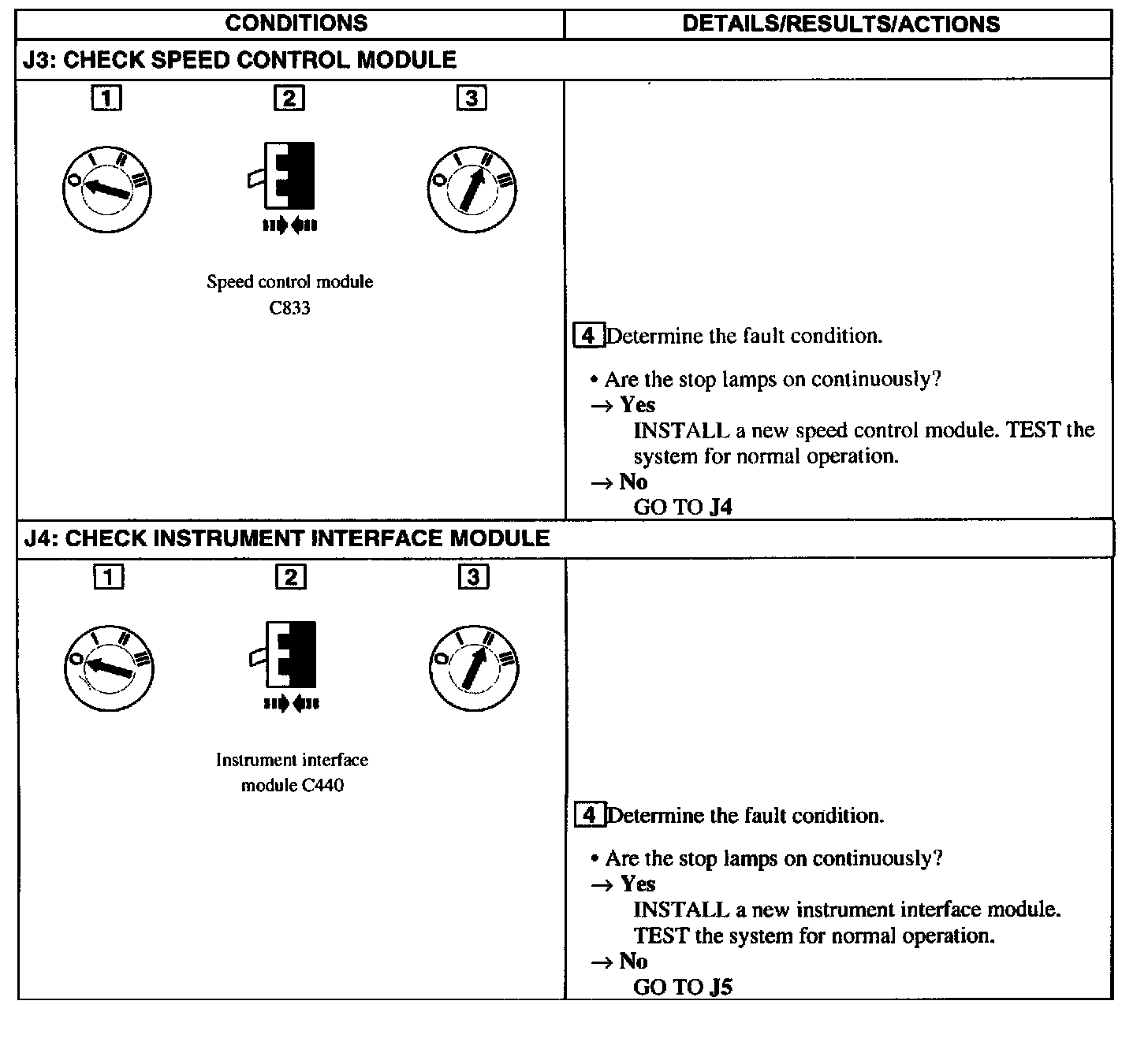

J3 - J4:

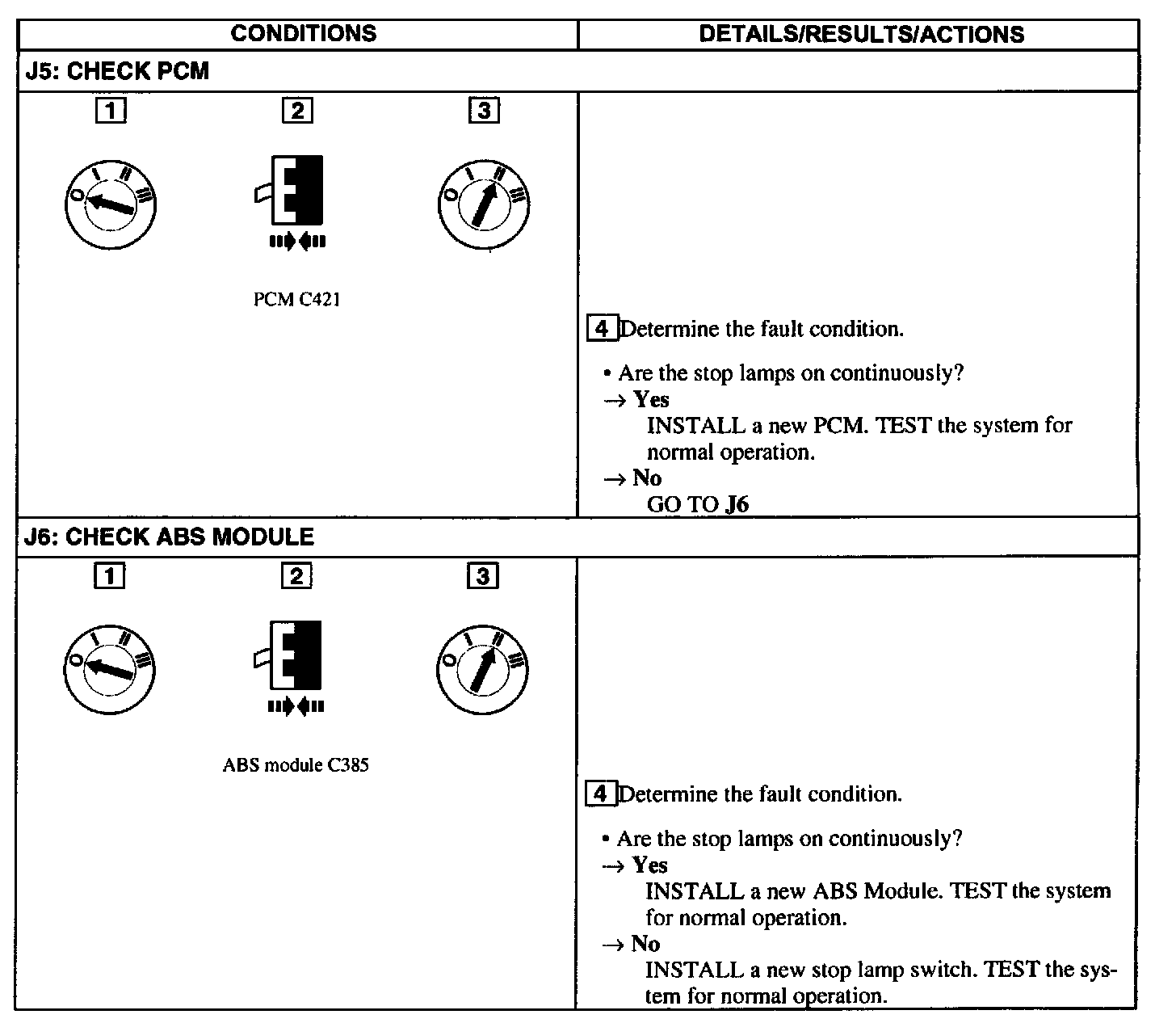

J5 - J6:

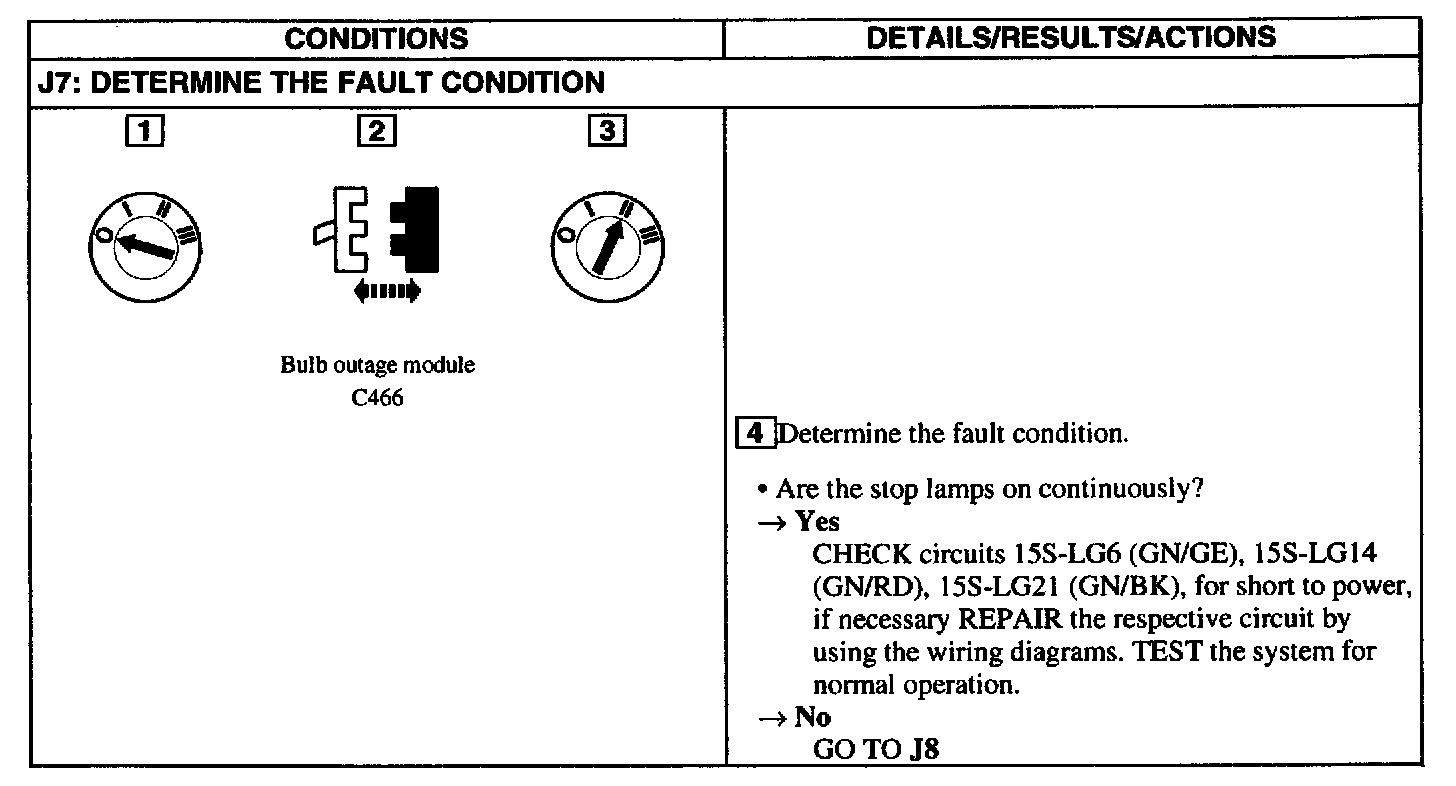

J7:

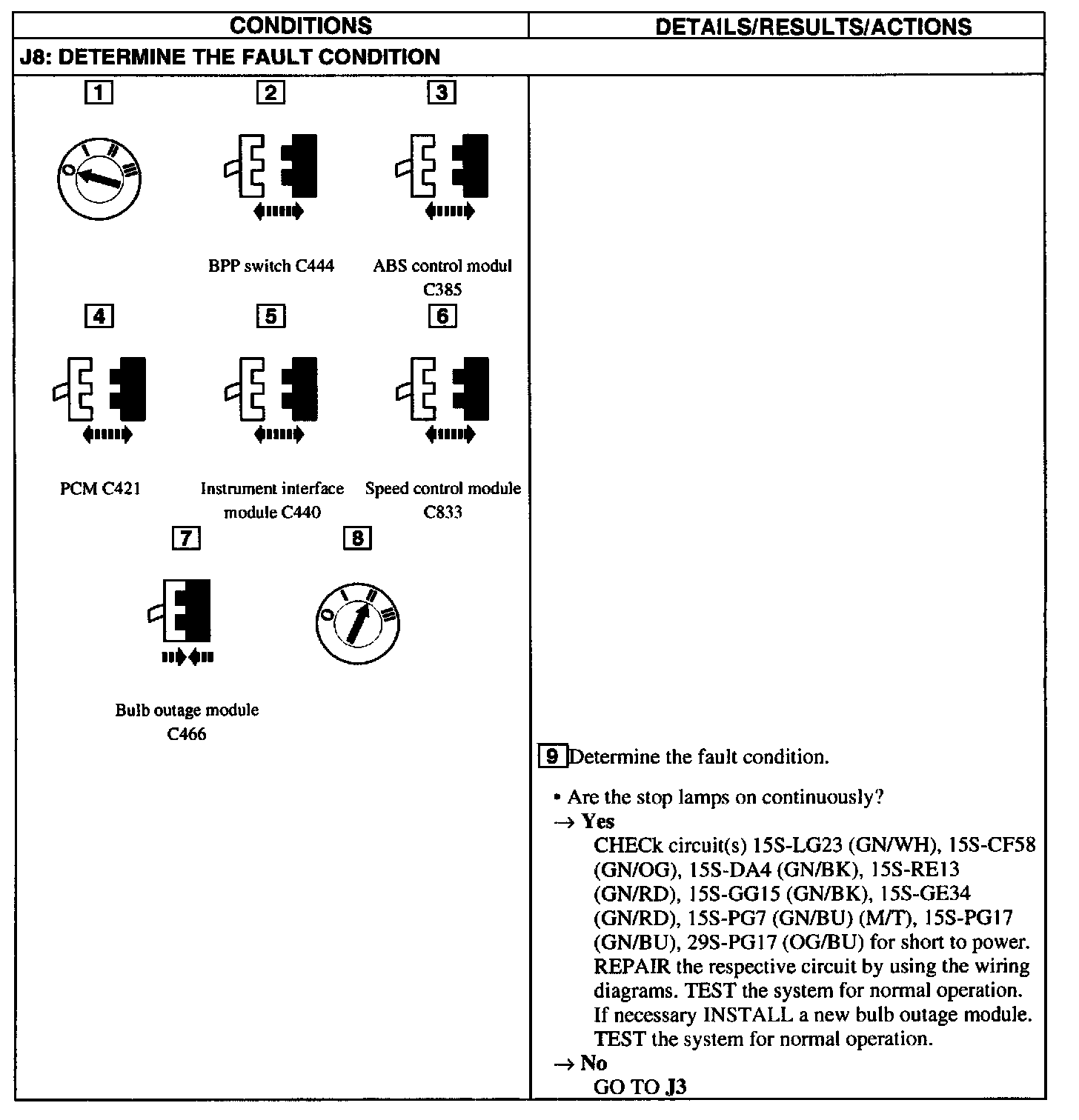

J8:
