Test D: Safety Belt Warning Chime Does Not Operate Correctly
Test D: Safety Belt Warning Chime Does Not Operate Correctly

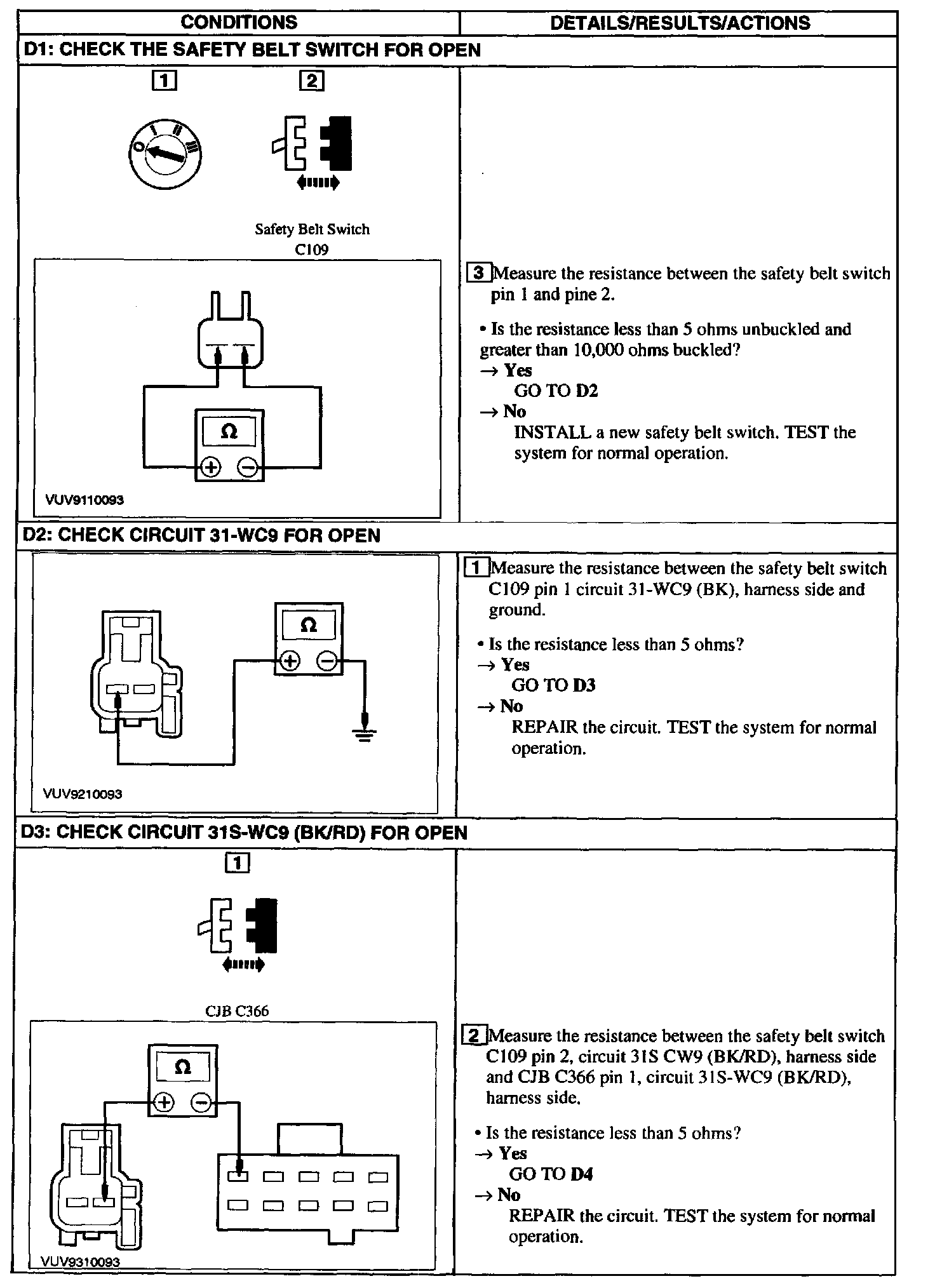

D1 - D3:
D4:
