Test E: A Single Illumination Source Is Inoperative

E1:

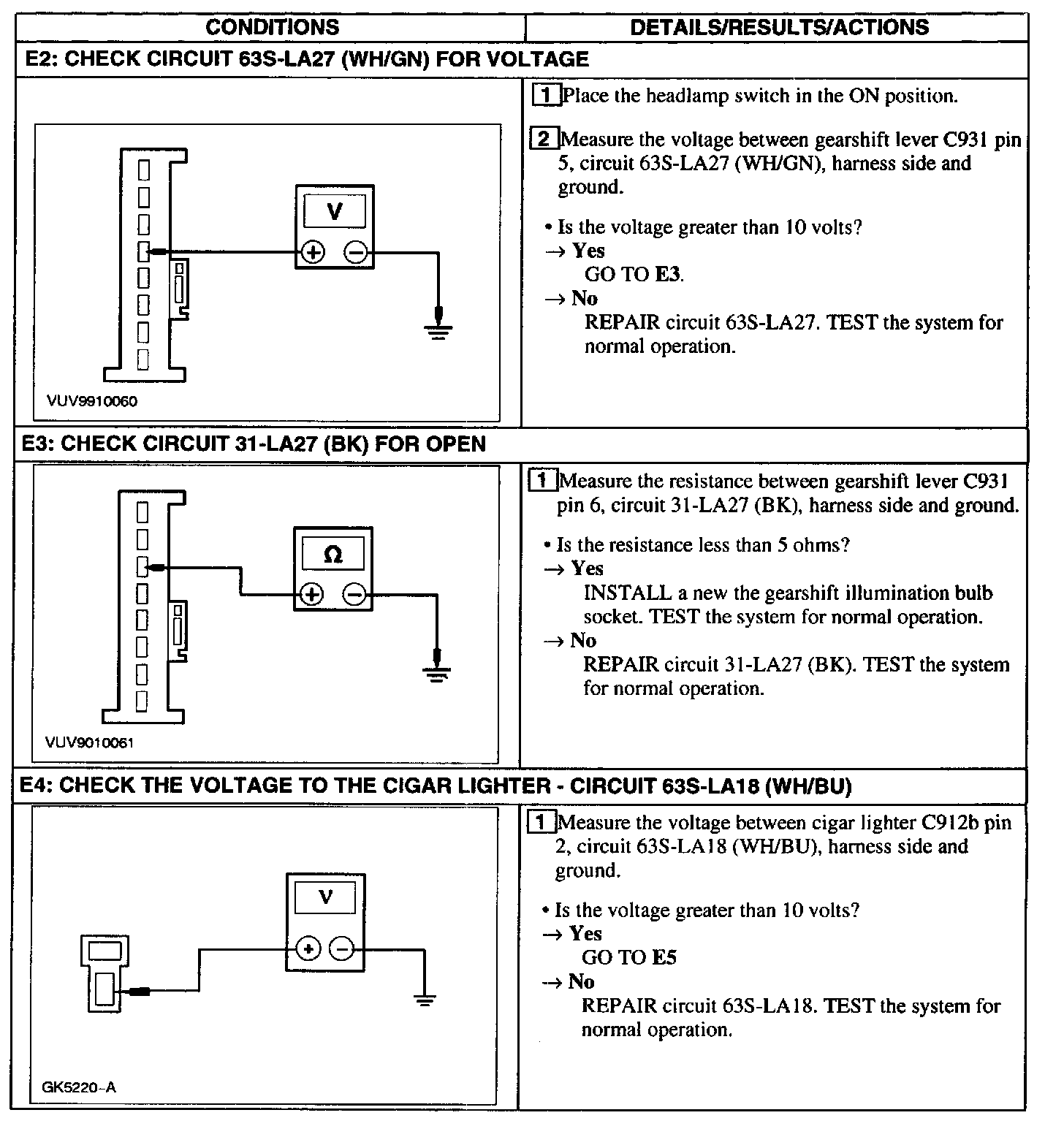

E2 - E4:

E5 - E7:

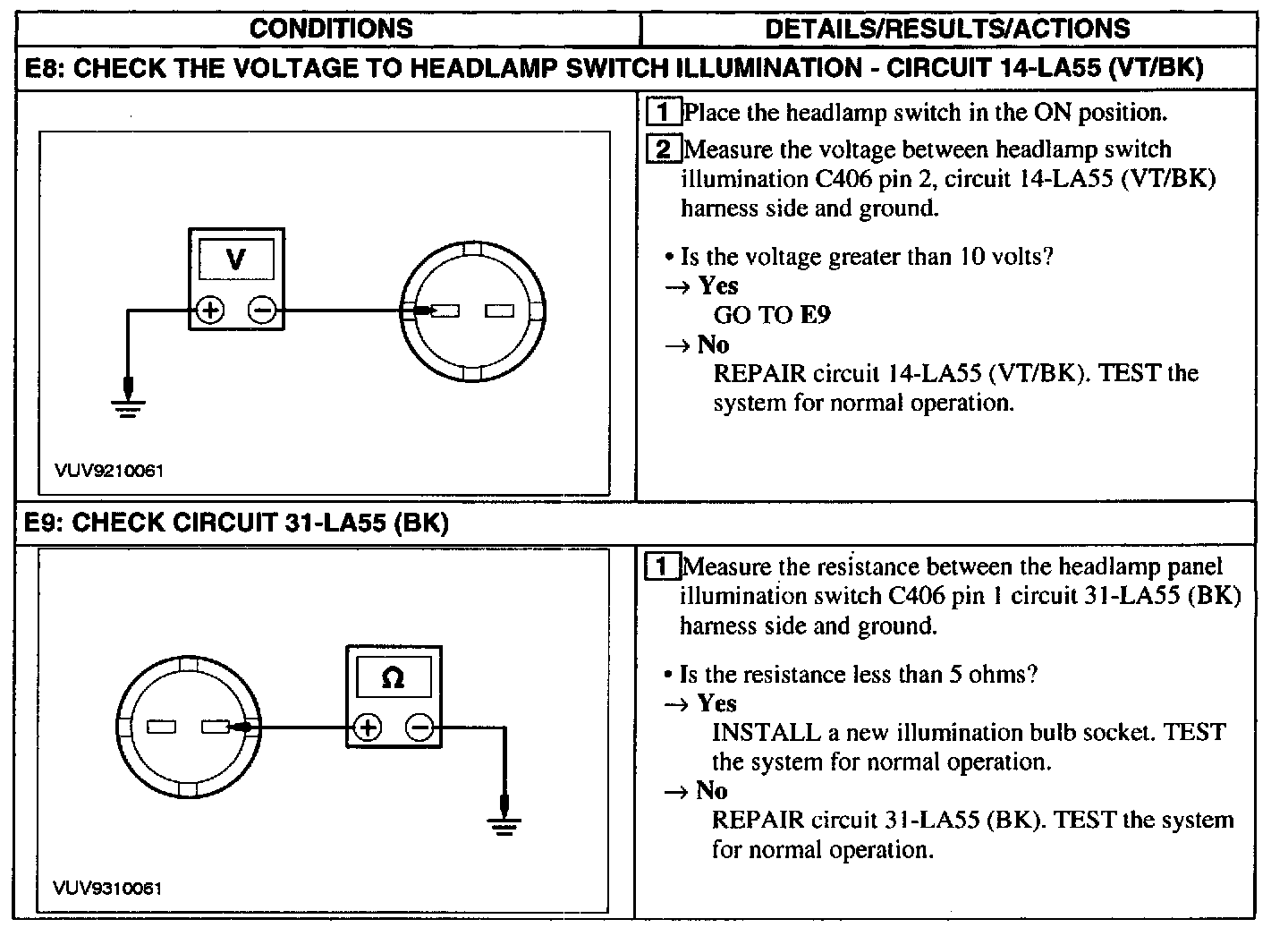

E8 - E9:

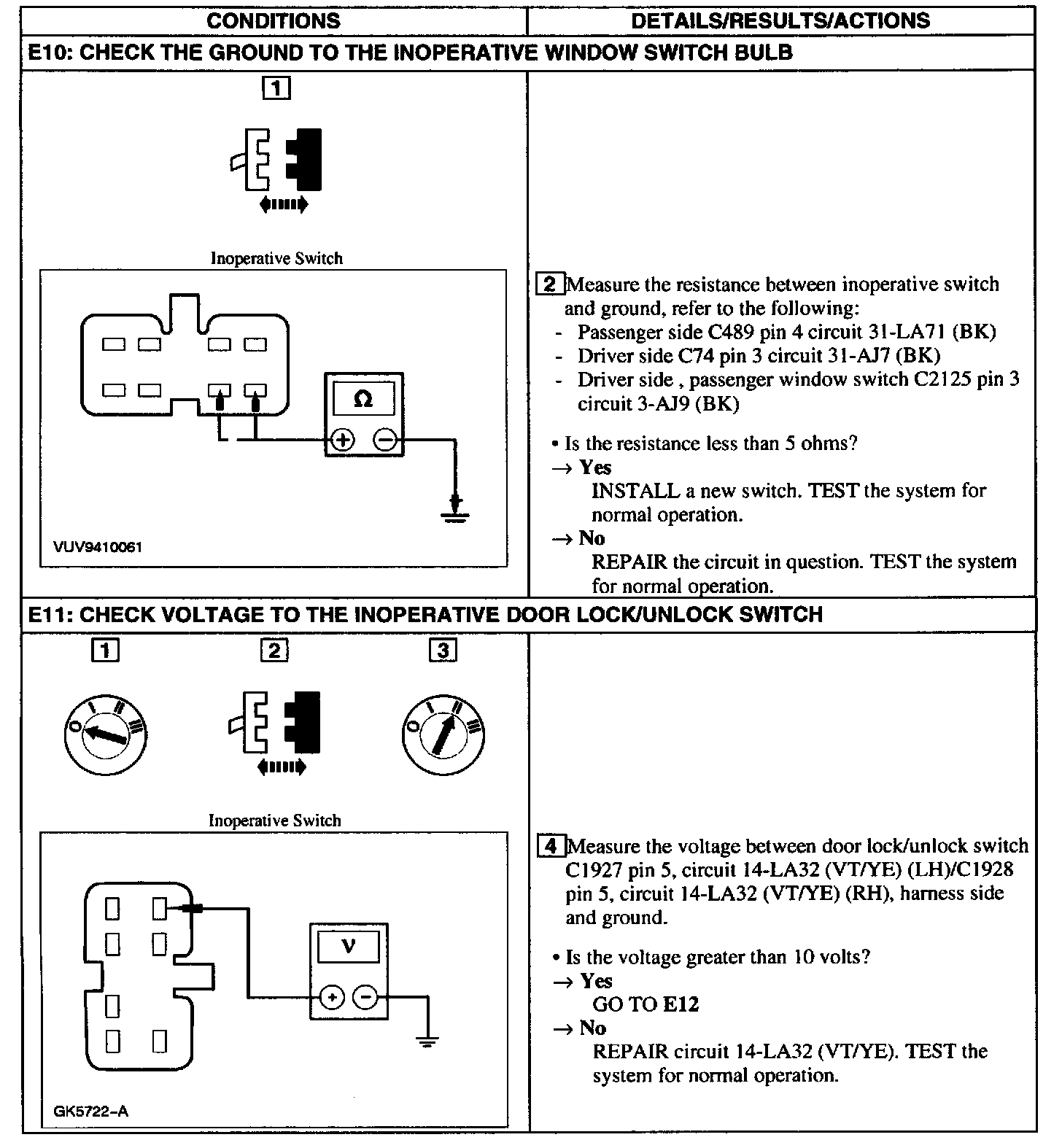

E10 - E11:

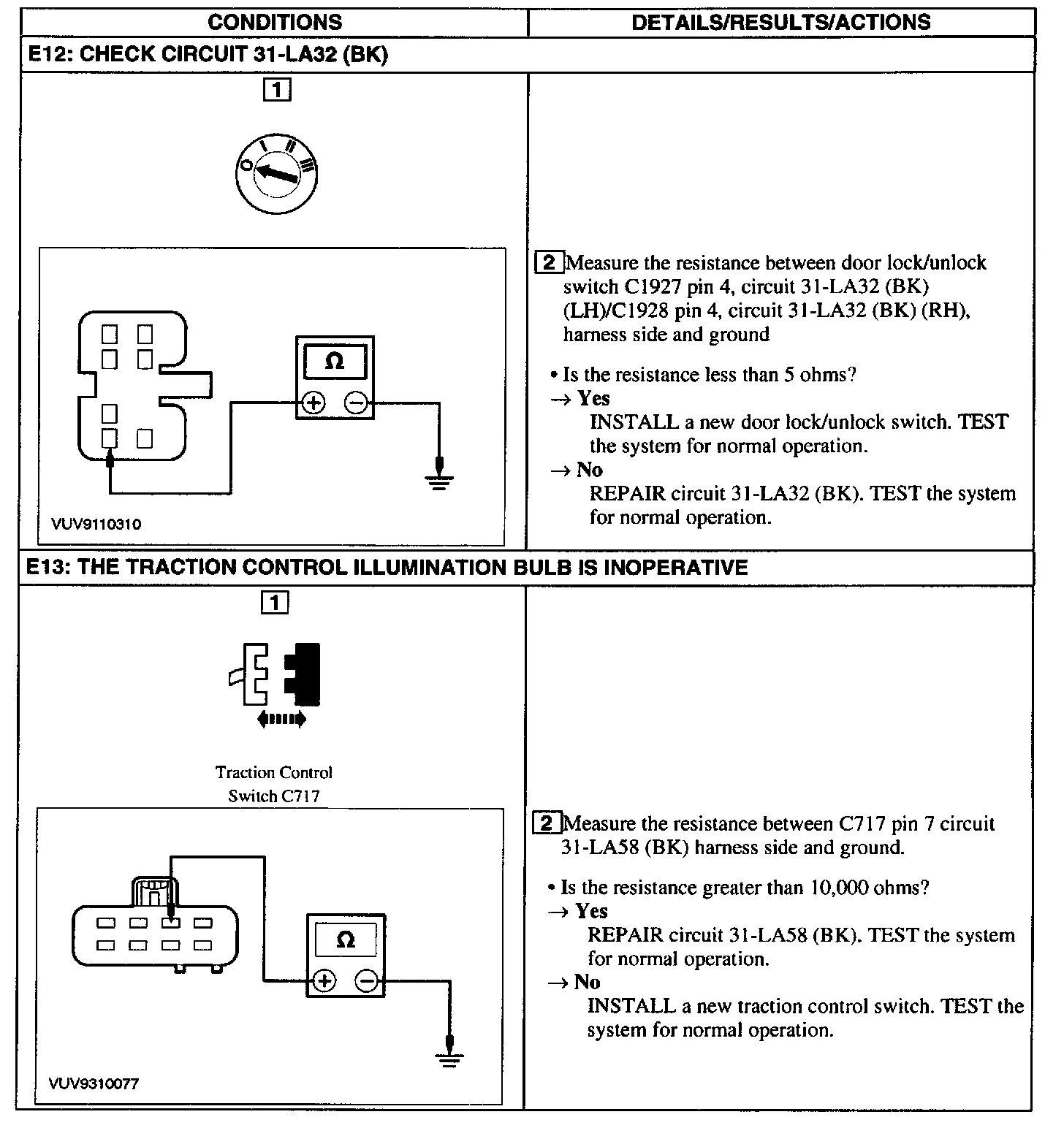

E12 - E13:
