Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test L: An Indicator Is Inoperative/Always ON - Door Ajar Warning Indicator

Test L: An Indicator Is Inoperative/Always ON - Door Ajar Warning Indicator

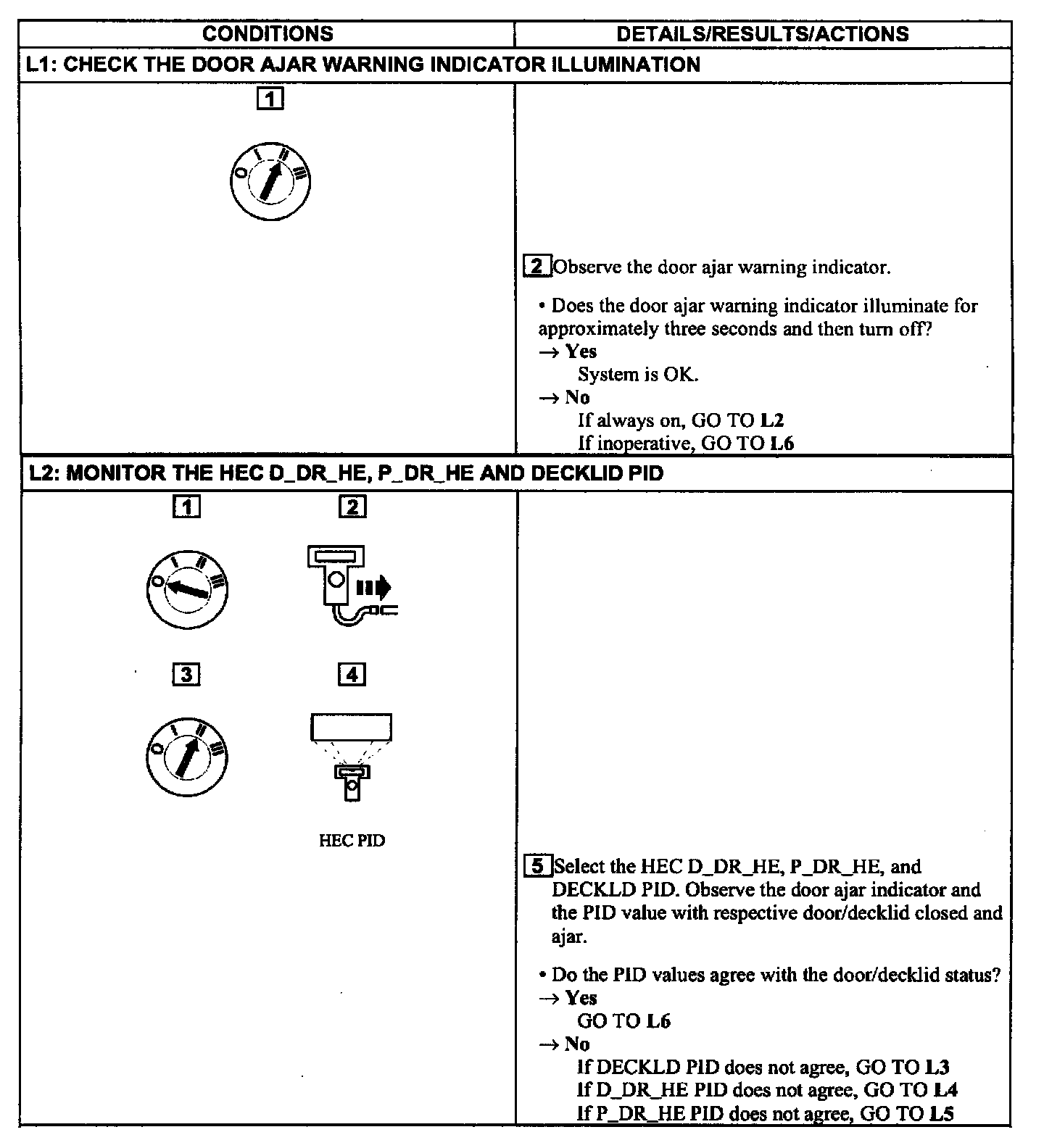

L1 - L2:

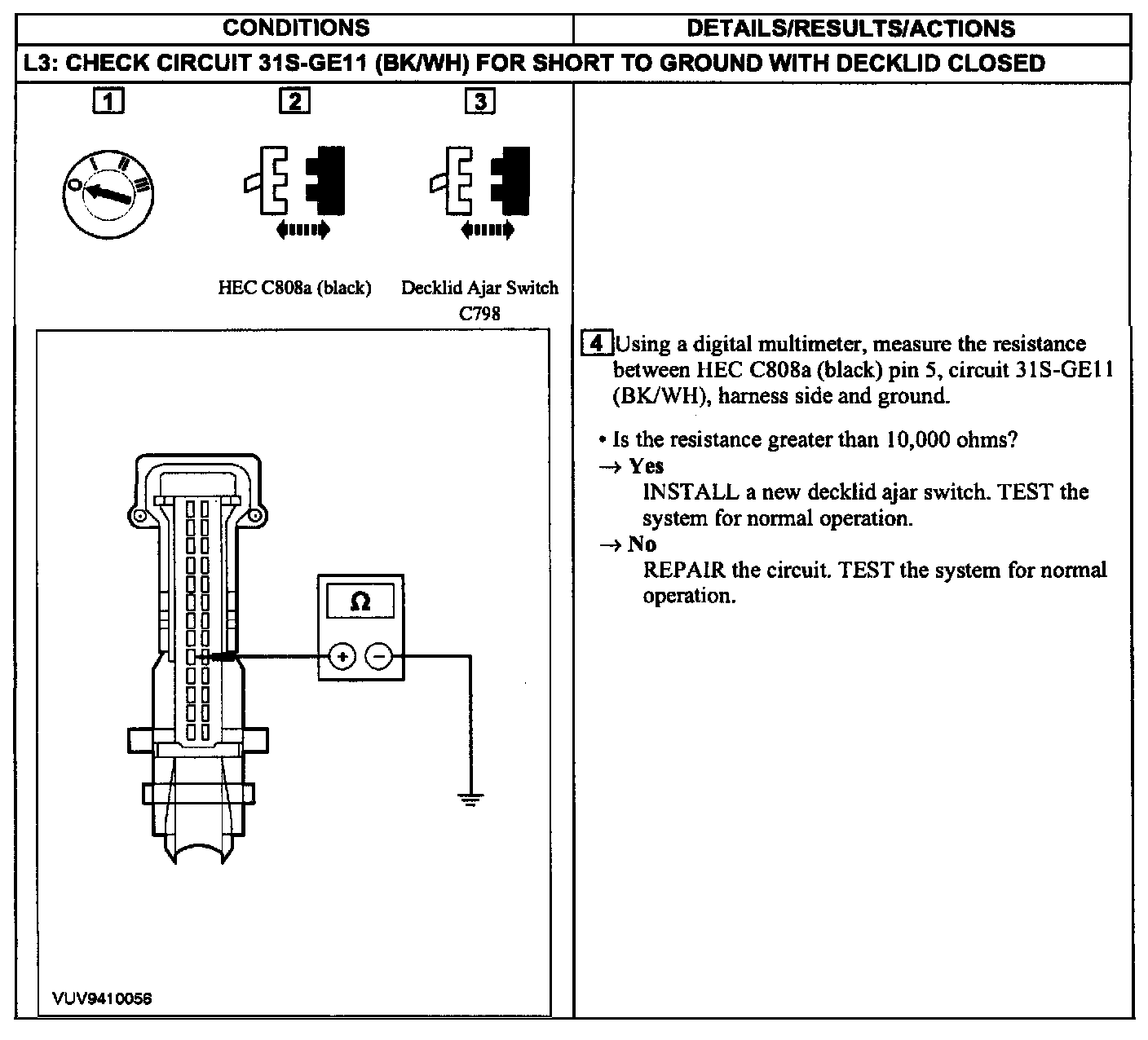

L3:

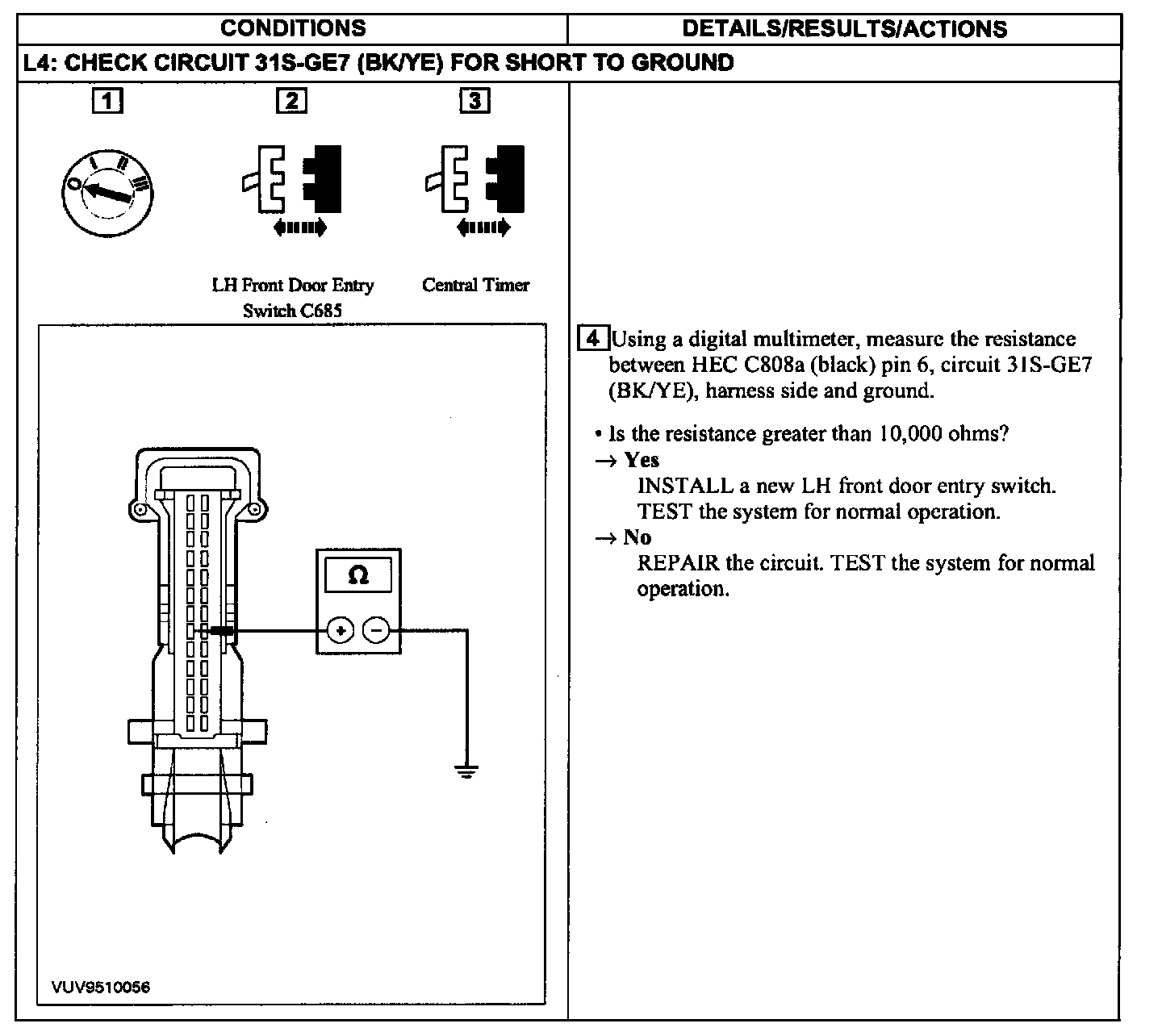

L4:

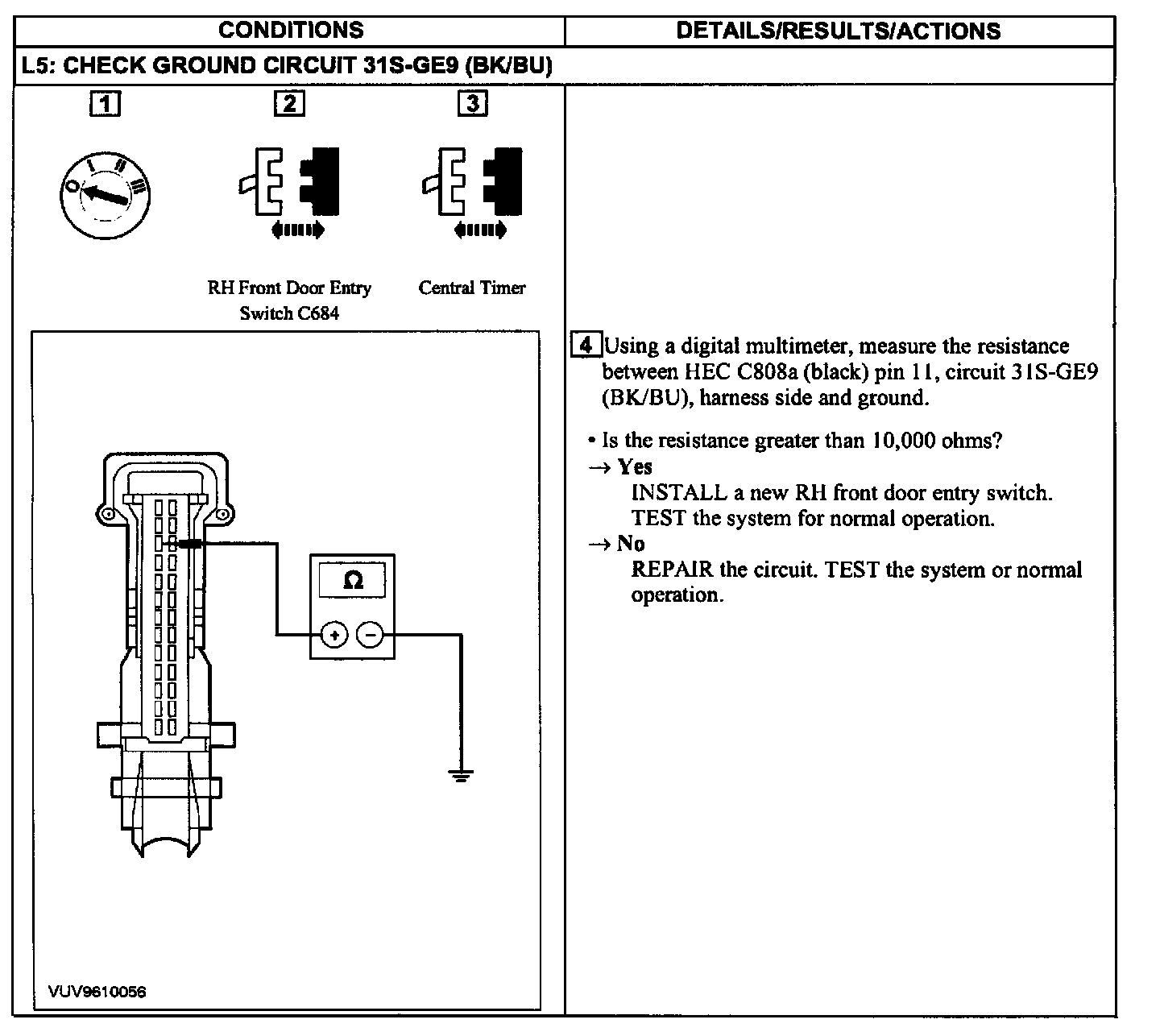

L5:

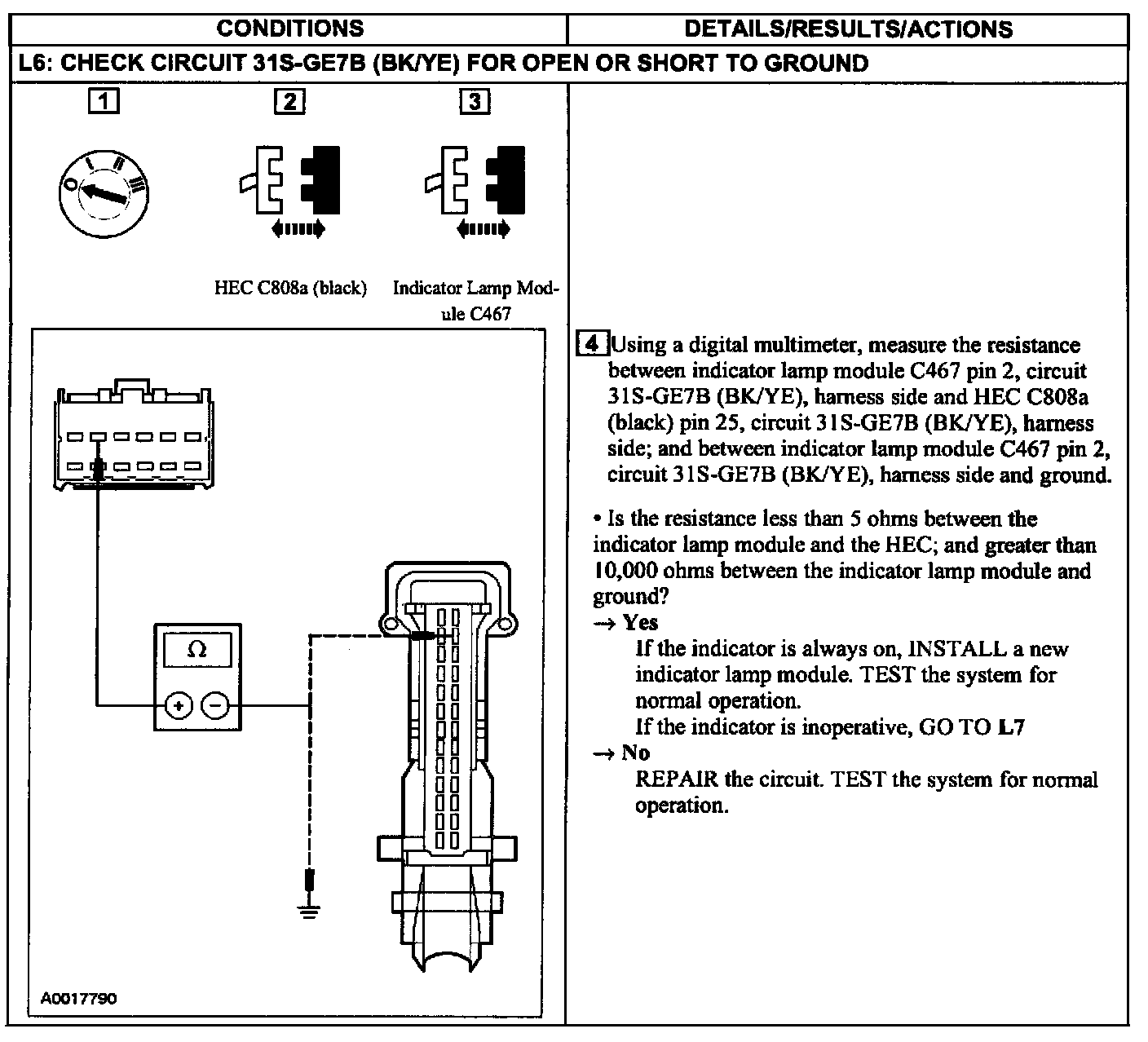

L6:

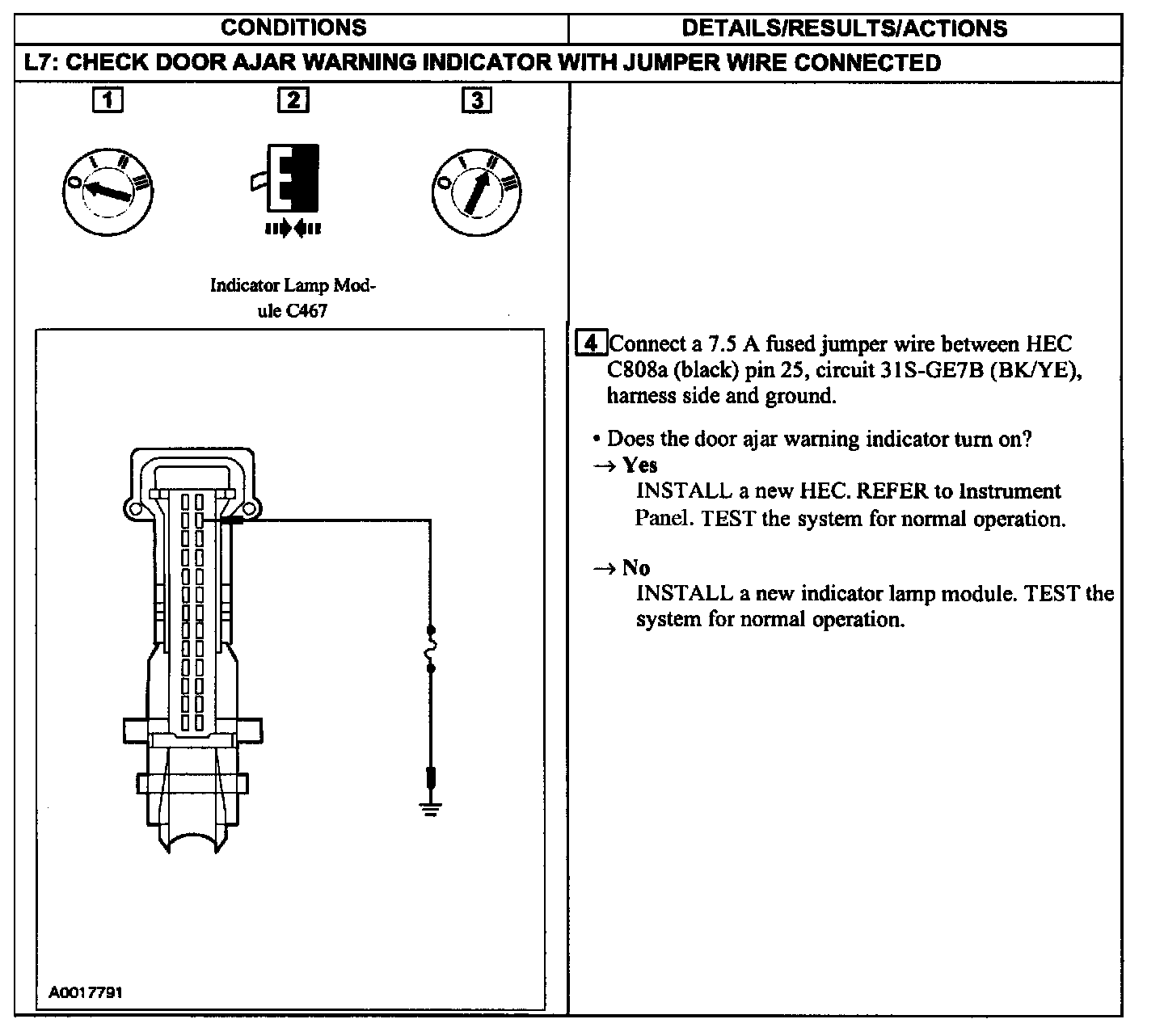

L7:
