Test K: An Indicator Is Inoperative/Always ON - Low Washer Fluid Level Warning Indicator
Test K: An Indicator Is Inoperative/Always ON - Low Washer Fluid Level Warning Indicator
K1 - K2:

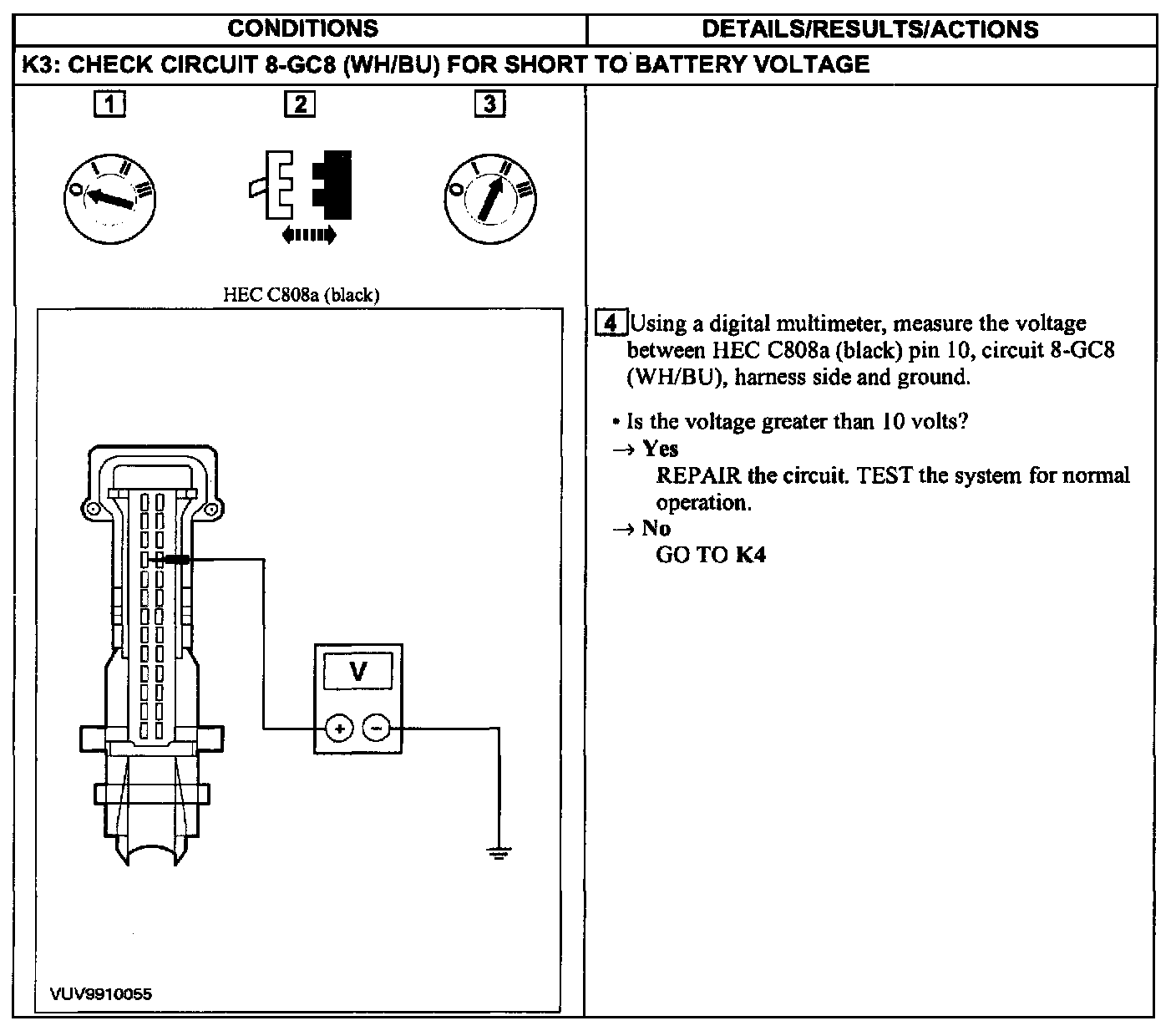

K3:

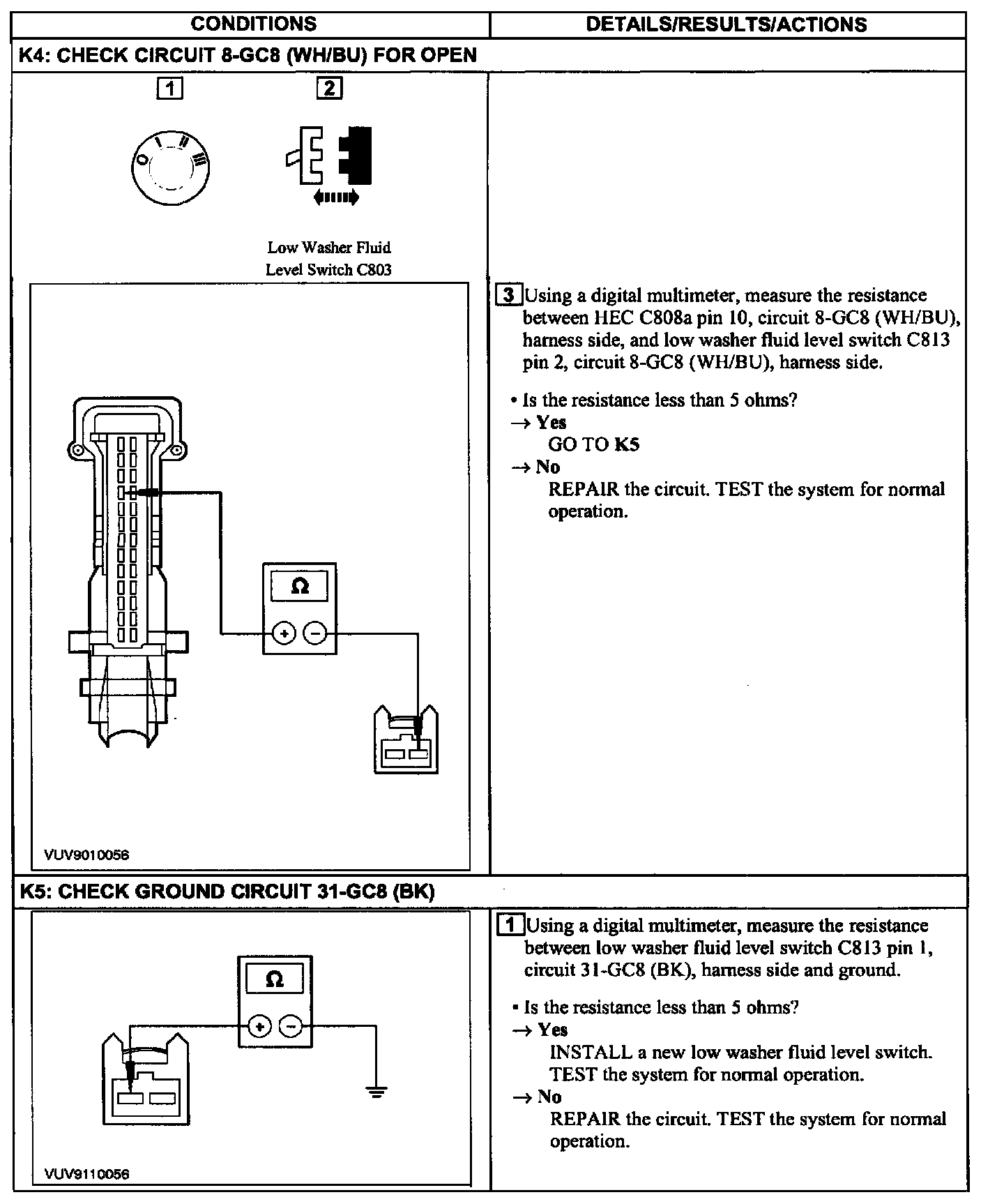

K4 - K5:

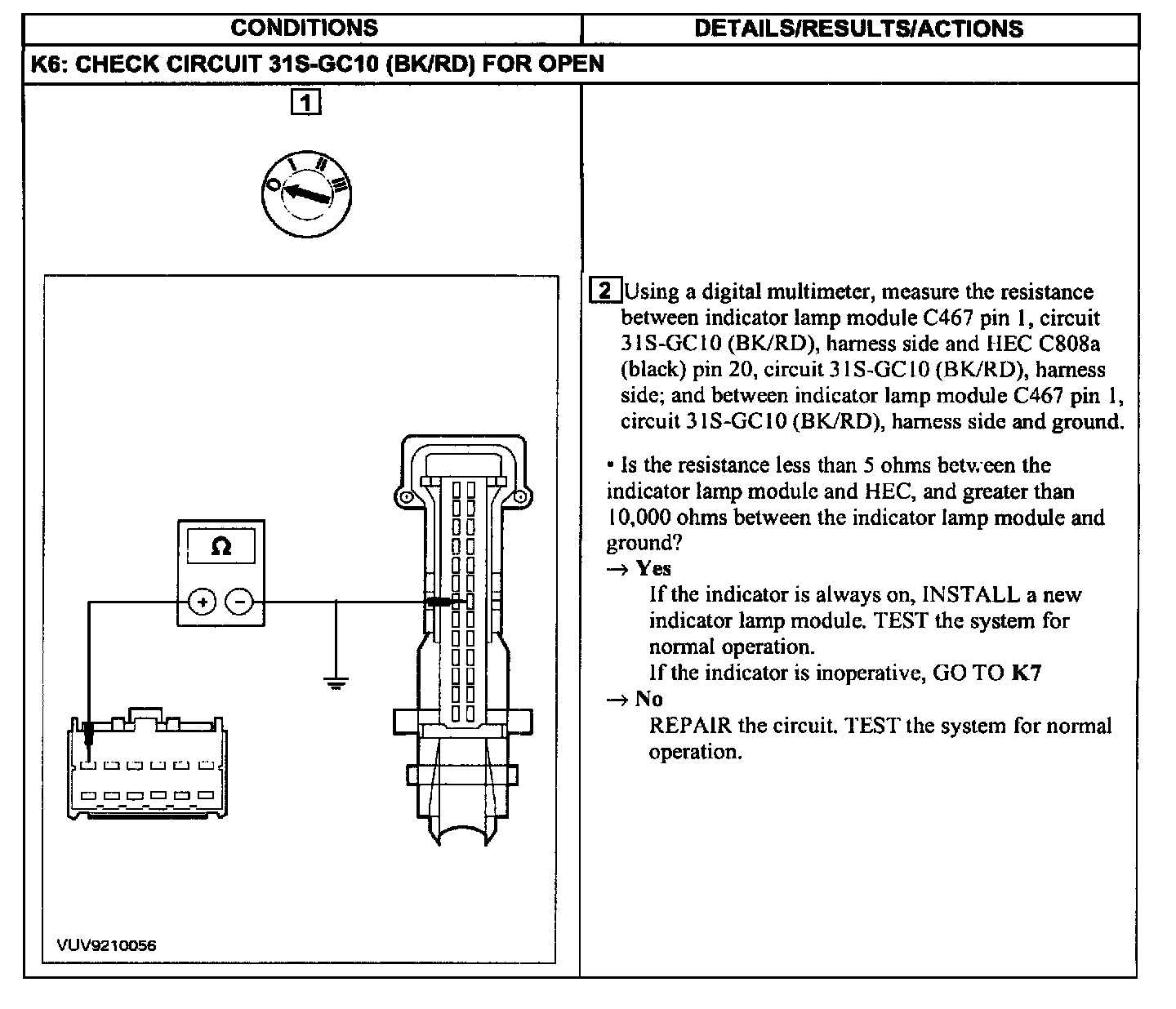

K6:

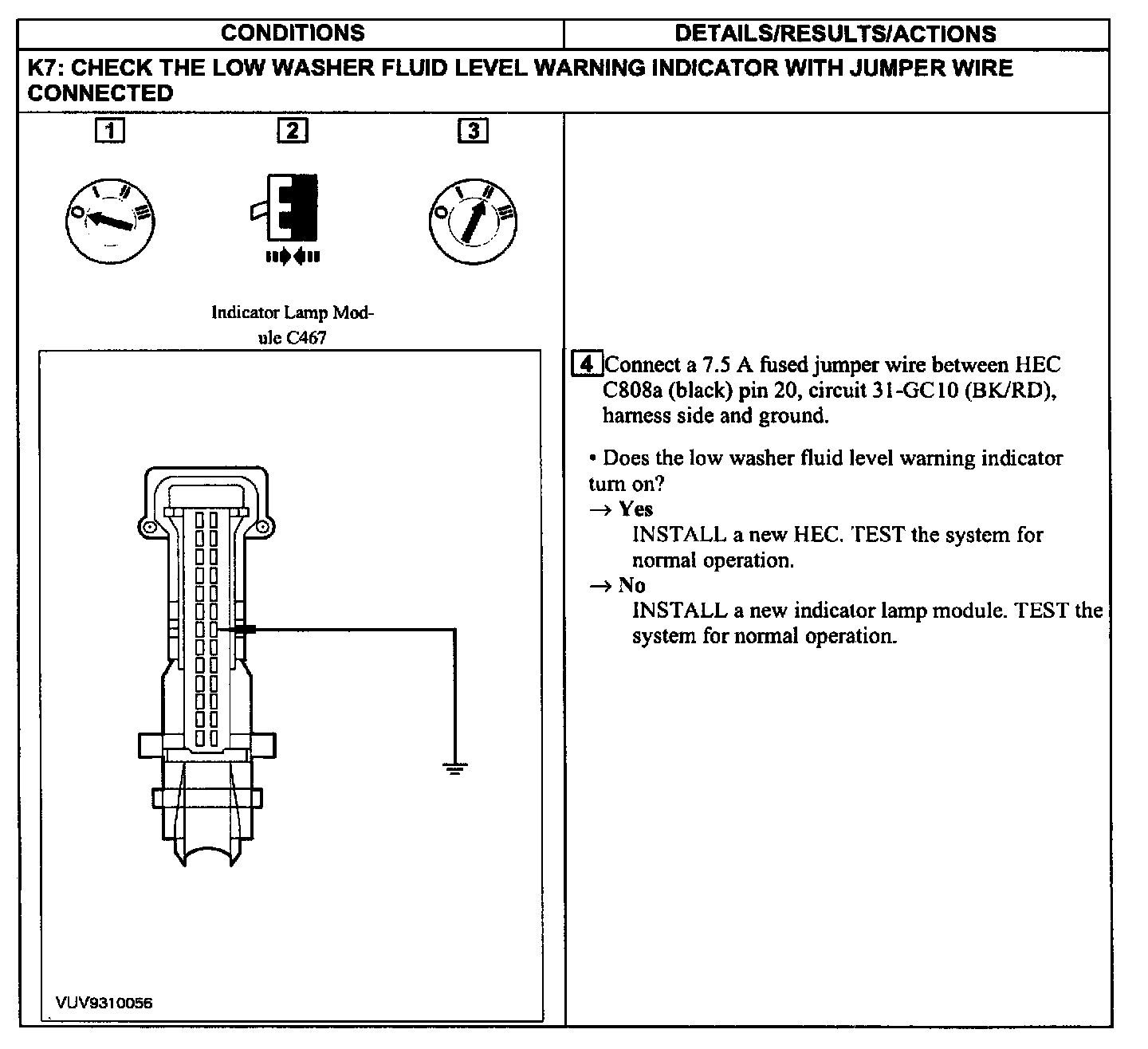

K7:
