Test J: An Indicator Is Inoperative/Always ON - Brake Pad Wear Indicator

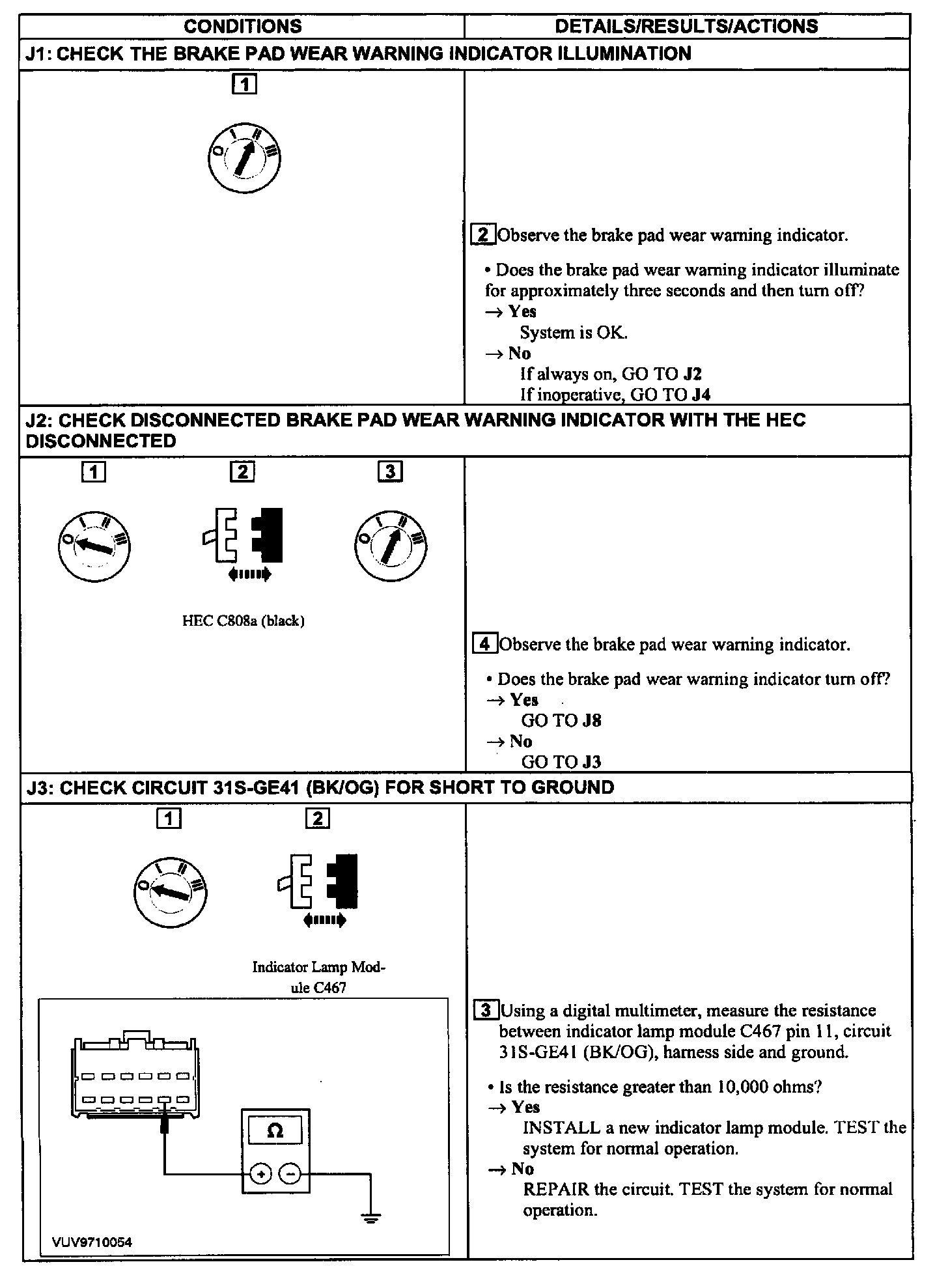

J1 - J3:

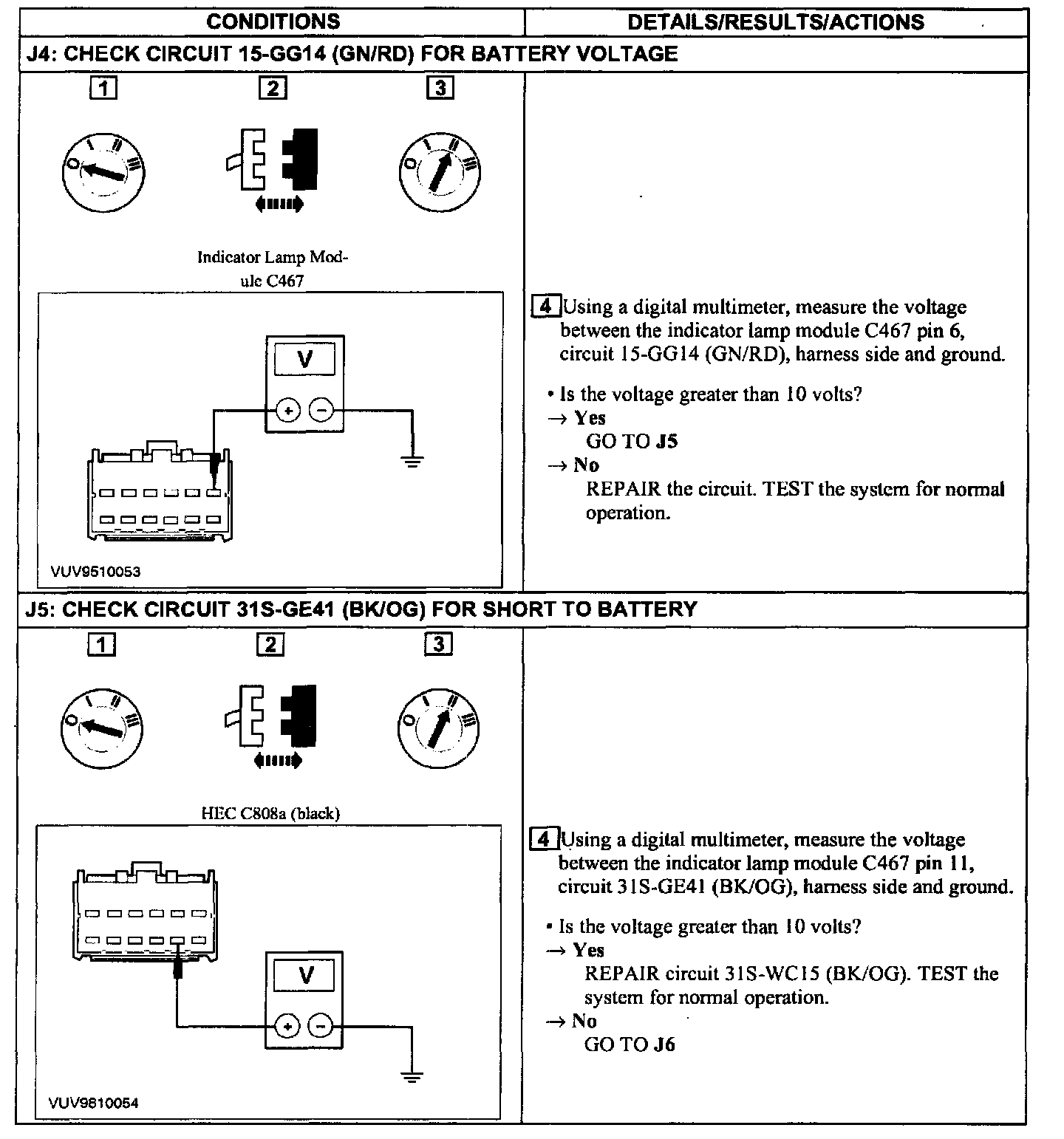

J4 - J5:

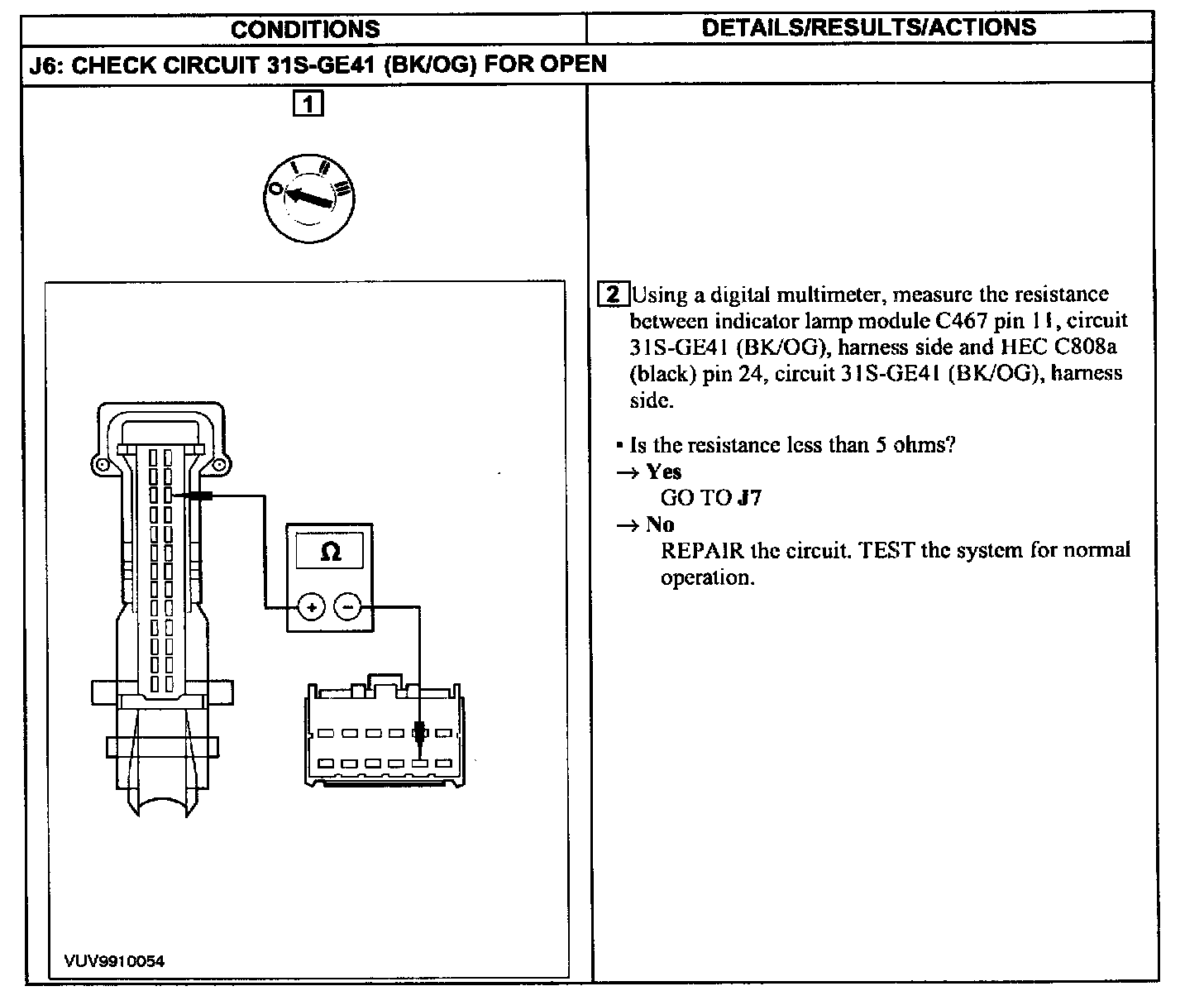

J6:

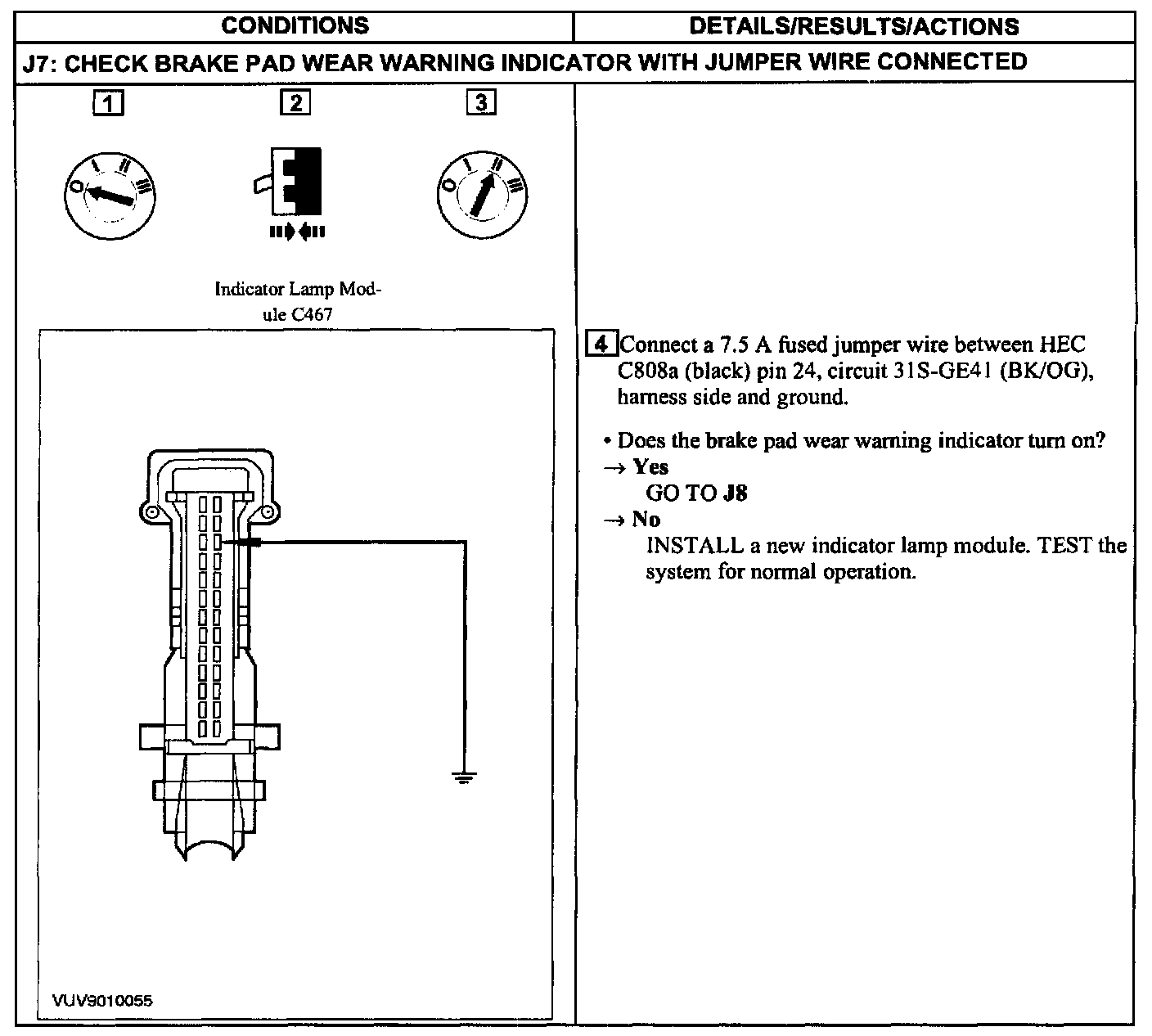

J7:

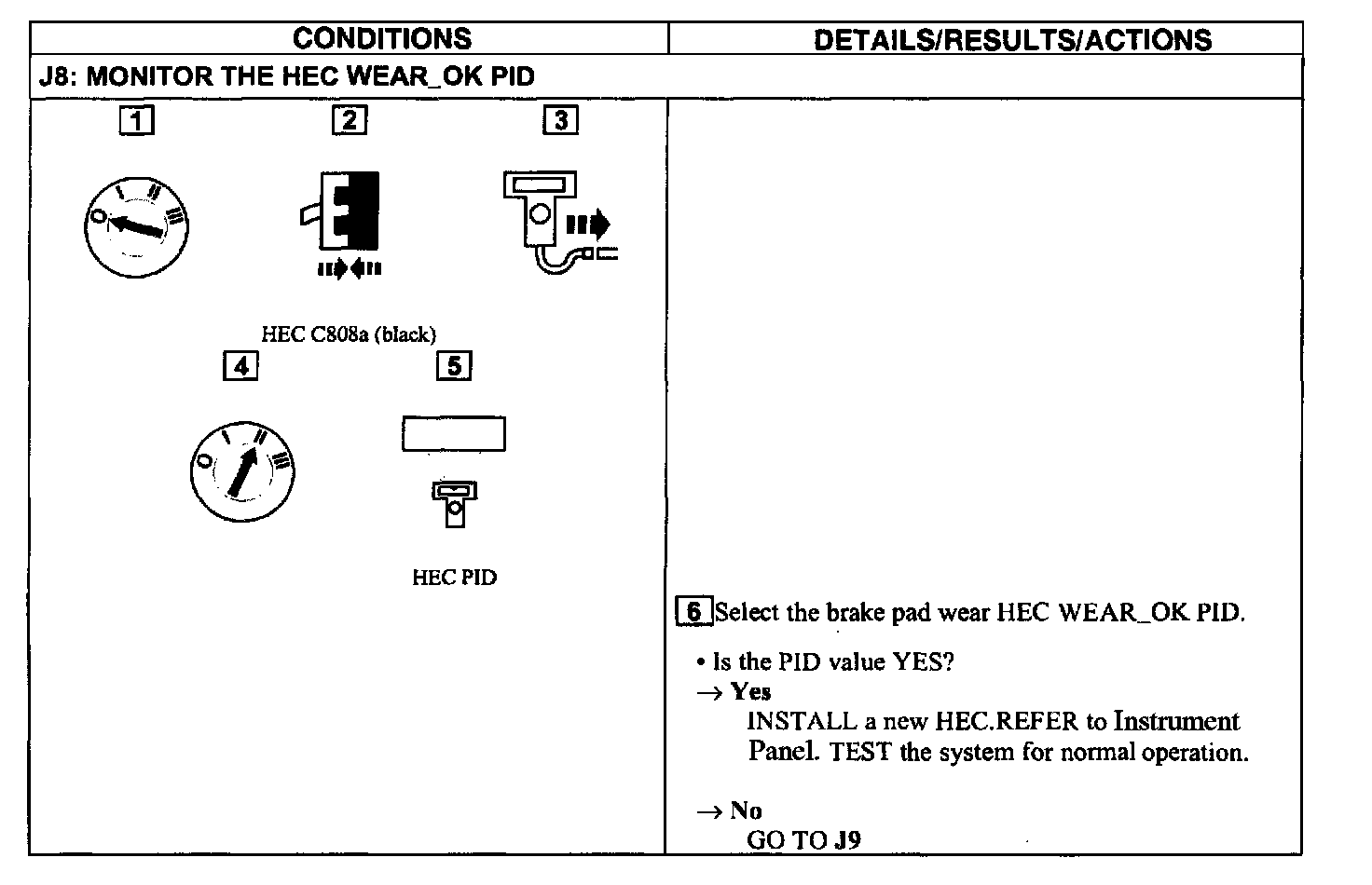

J8:

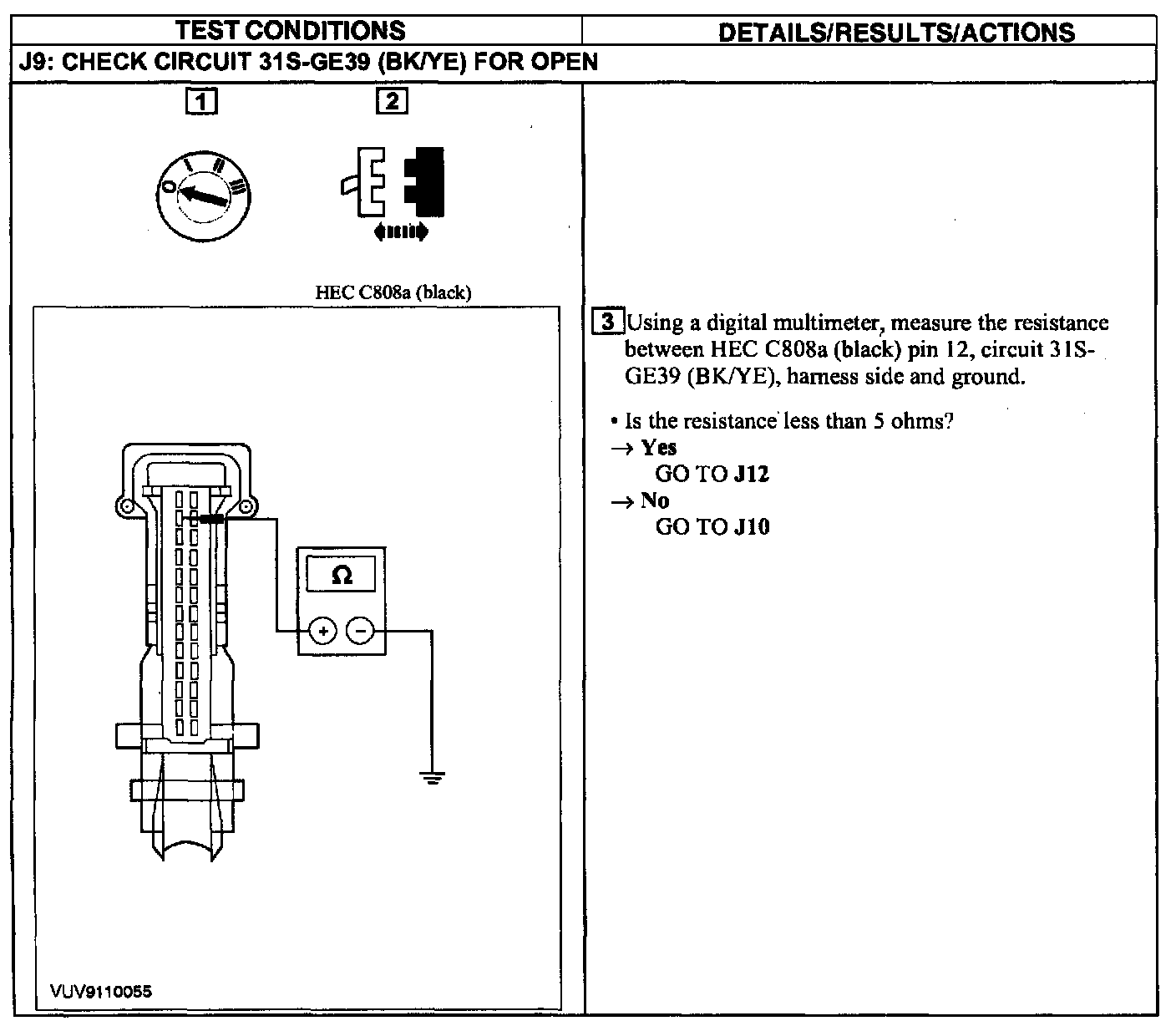

J9:

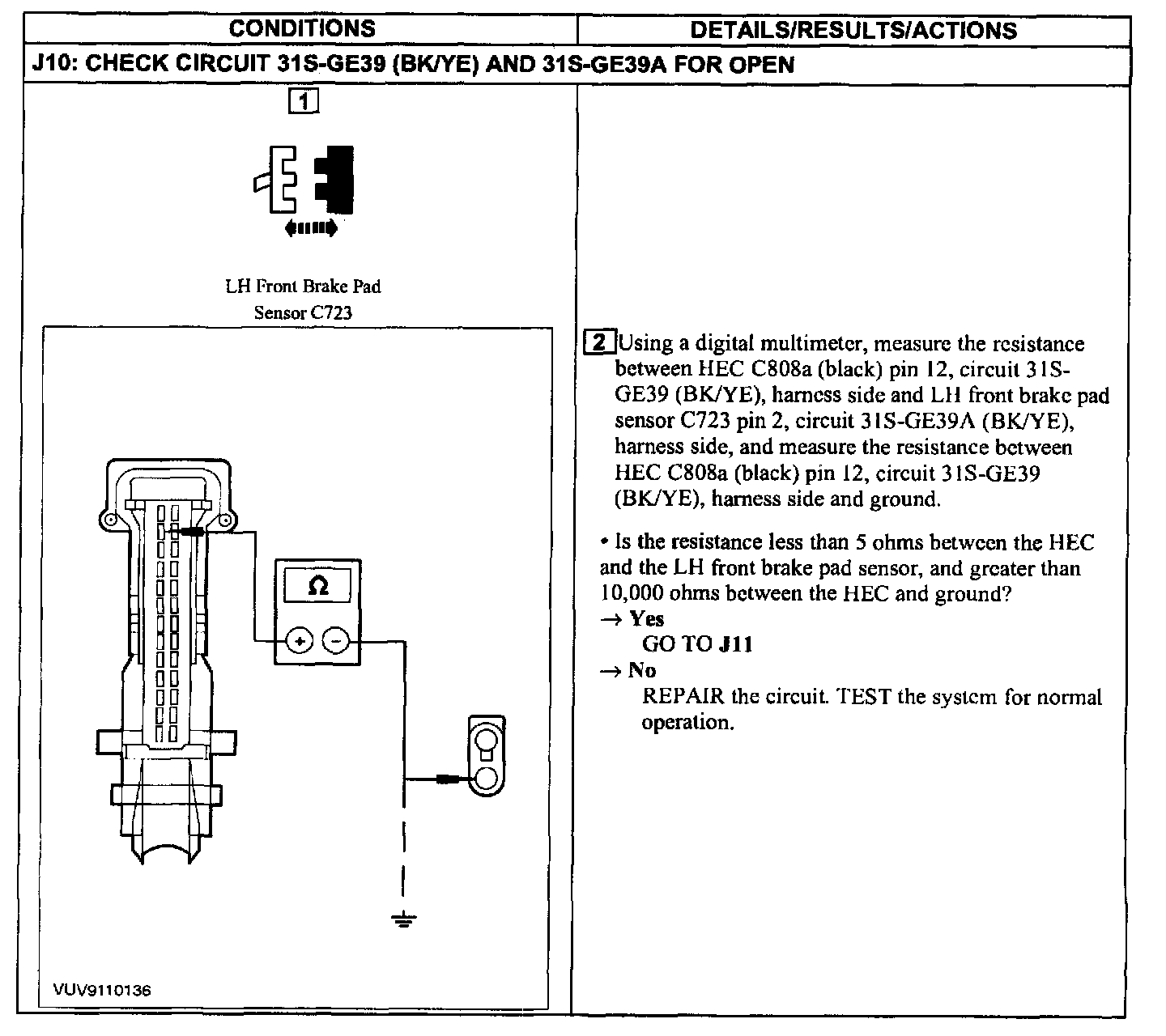

J10:

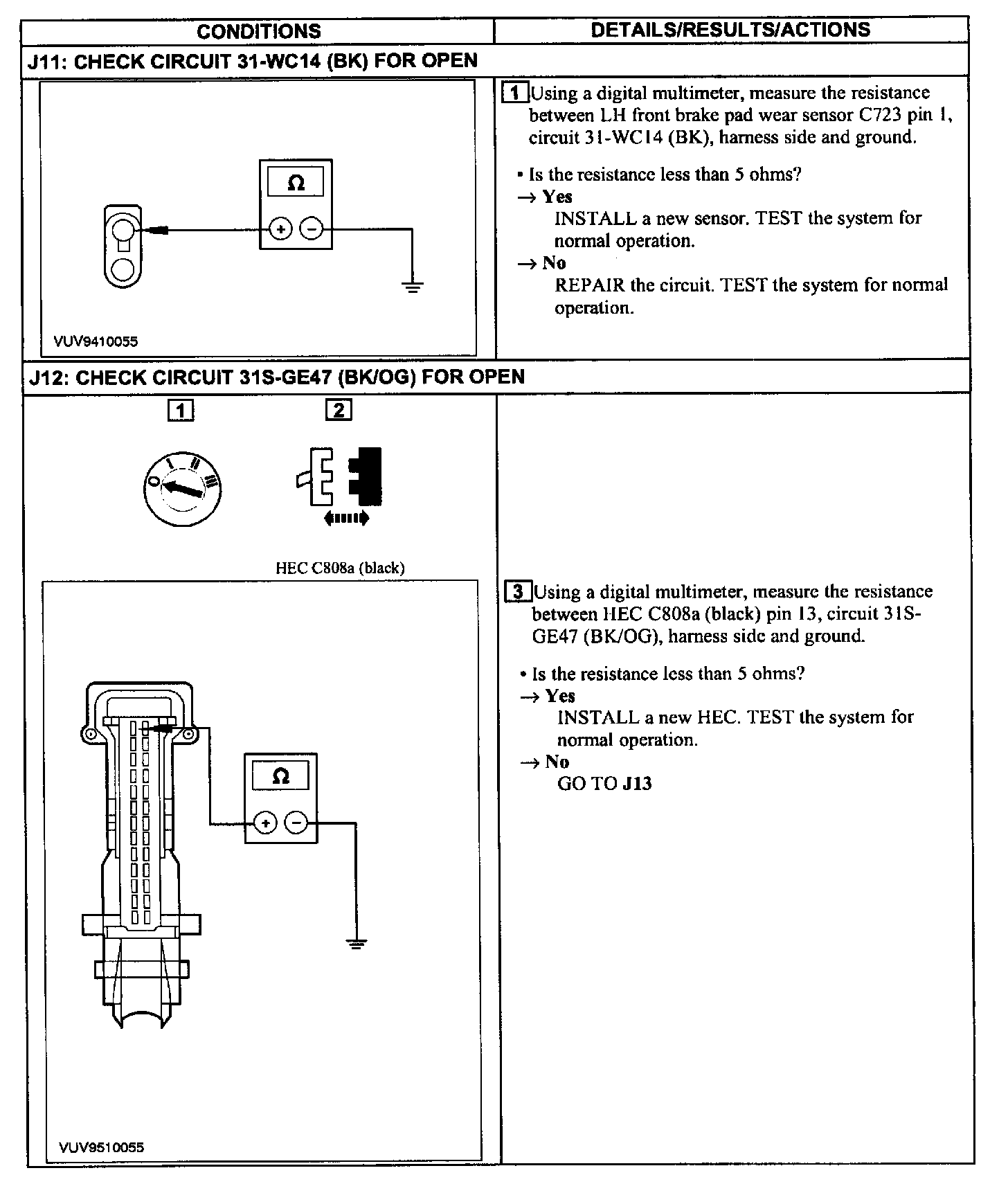

J11 - J12:

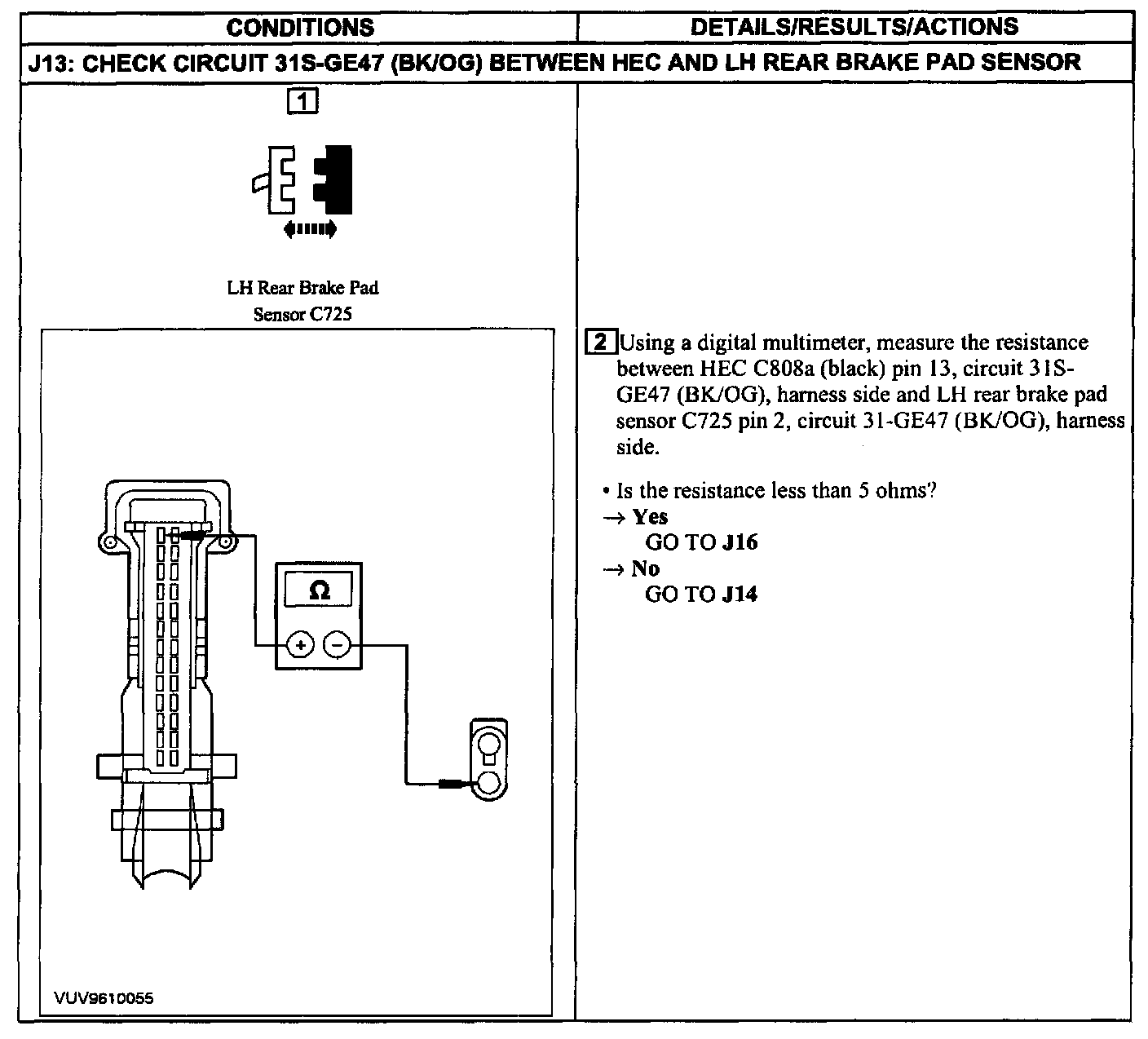

J13:

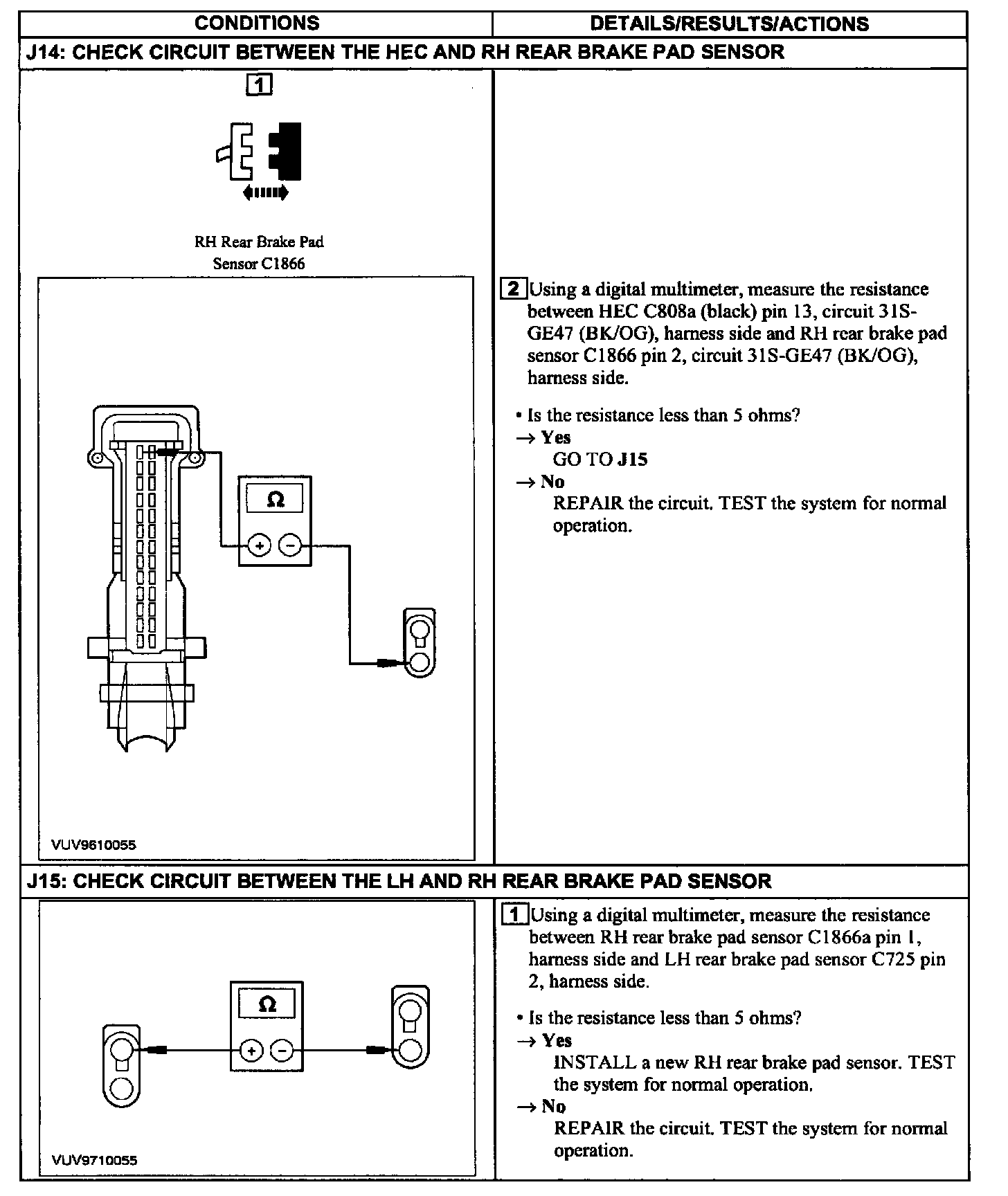

J14 - J15:

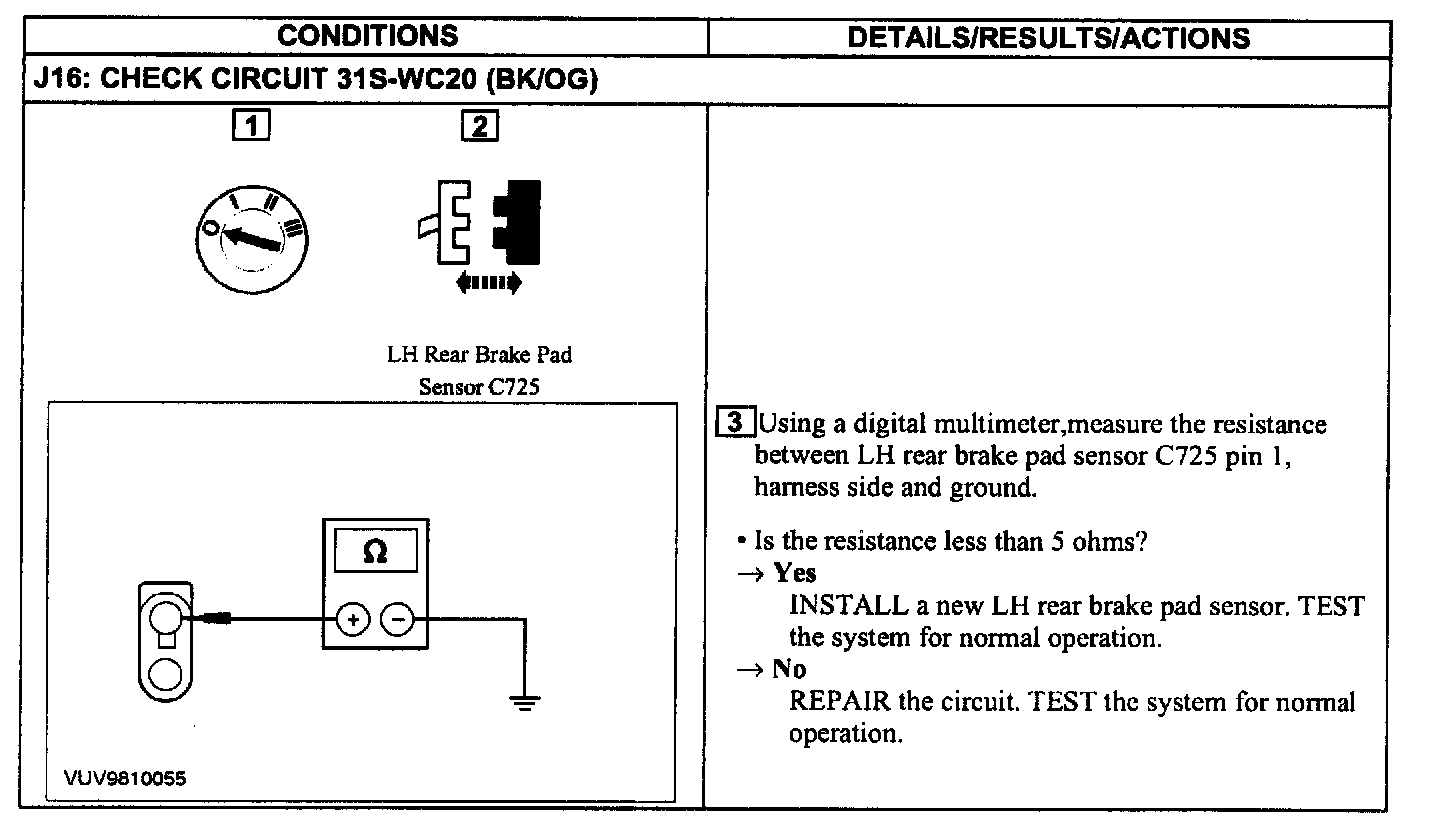

J16:
