Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Pinpoint Tests - Instrument Cluster
>>
Test F: An Indicator Is Inoperative - High Beam
Test F: An Indicator Is Inoperative - High Beam

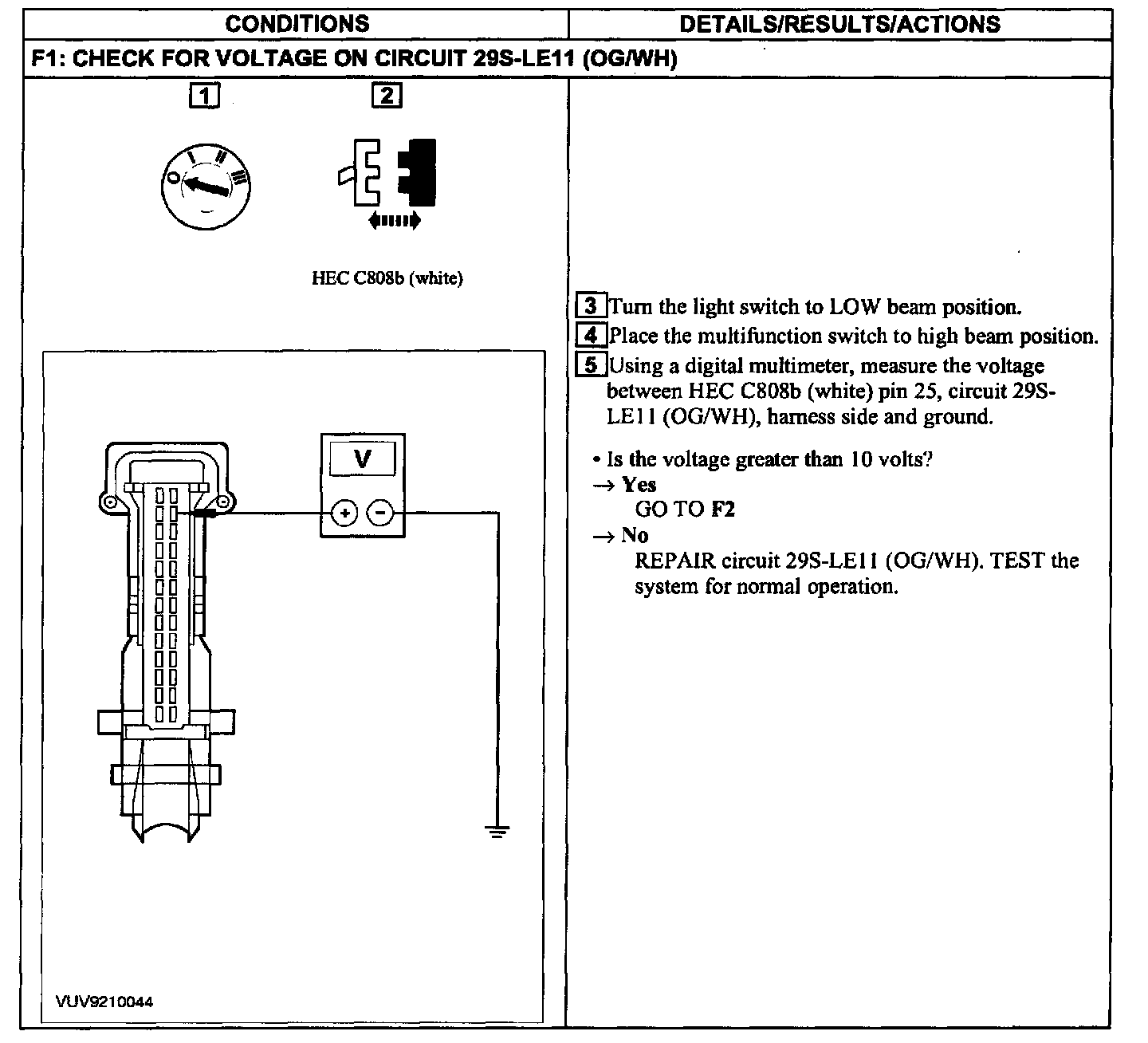

F1:

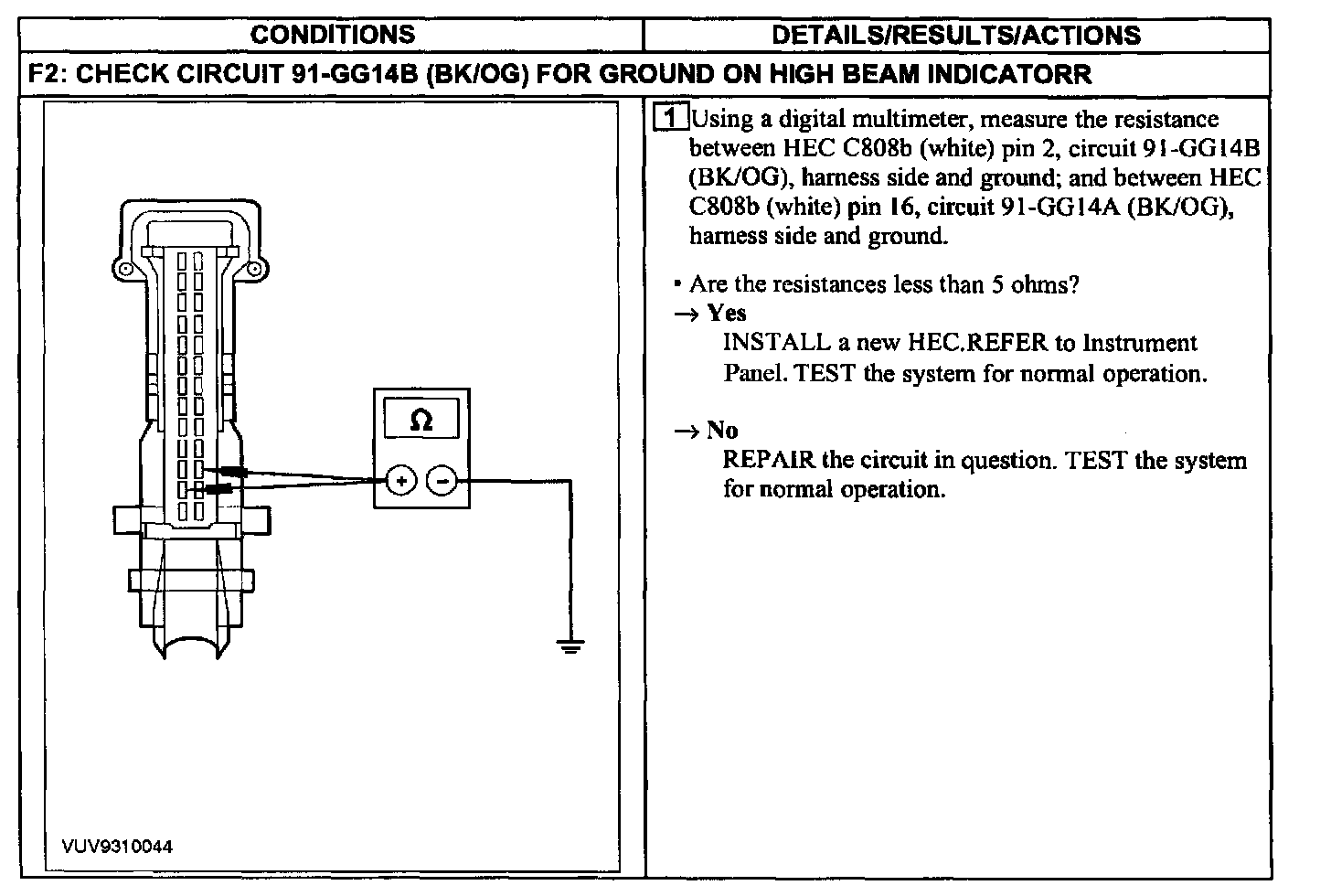

F2:
