Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test E: Insufficient, Erratic or No Heat

Test E: Insufficient, Erratic or No Heat

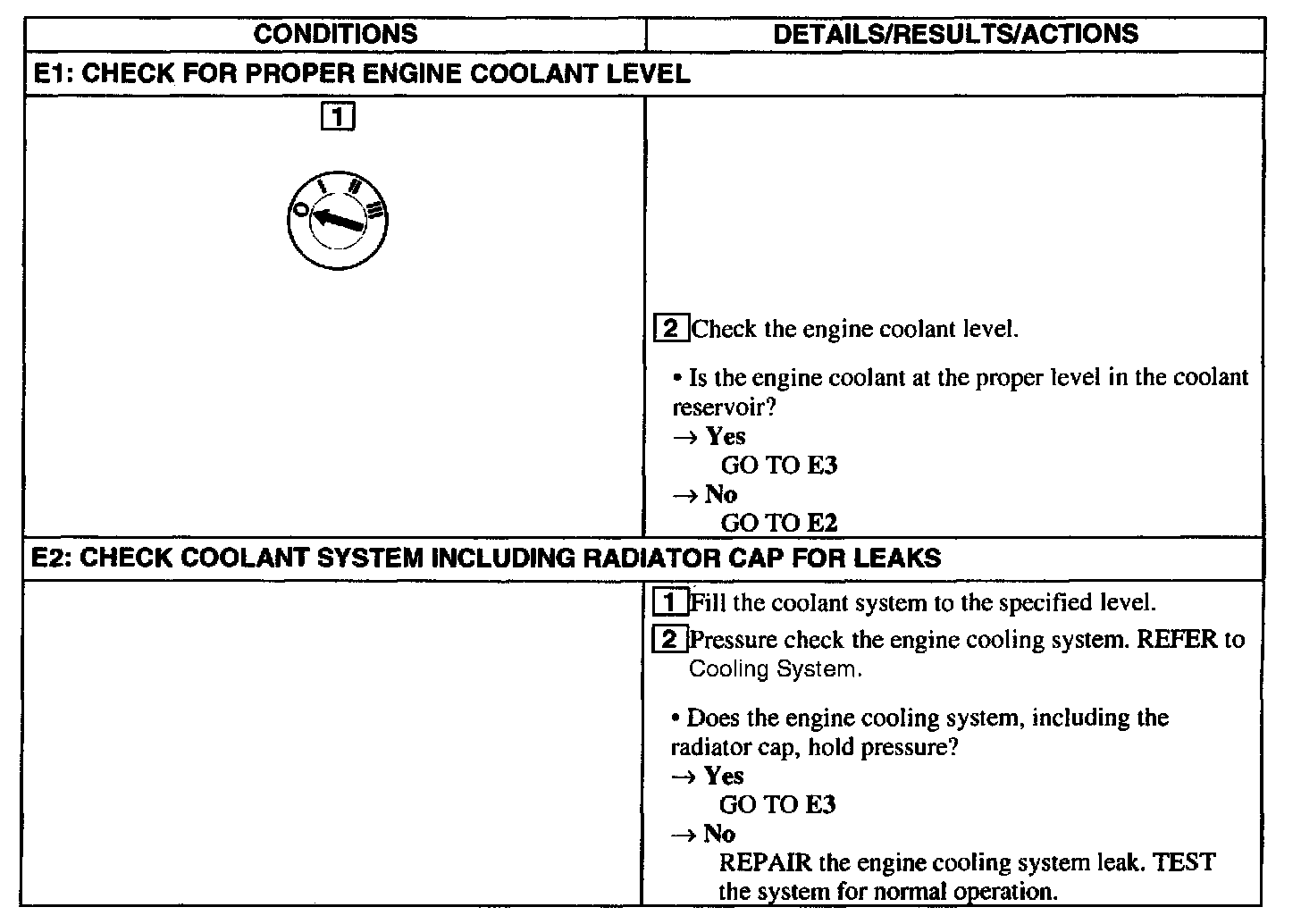

E1 - E2:

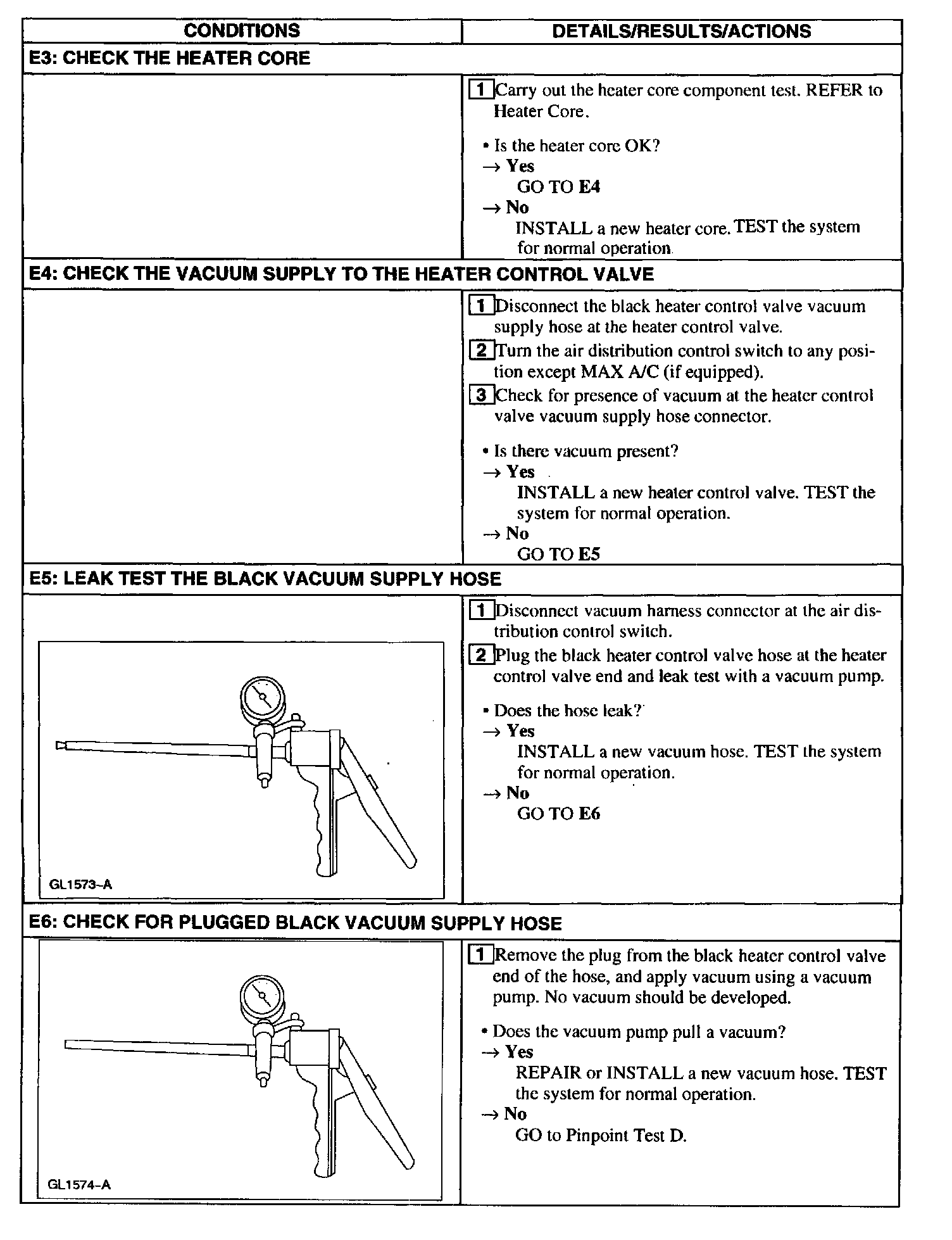

E3 - E6:
