FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2000
>>
Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test D: Incorrect/Erratic Direction of Airflow From Outlet
Test D: Incorrect/Erratic Direction of Airflow From Outlet

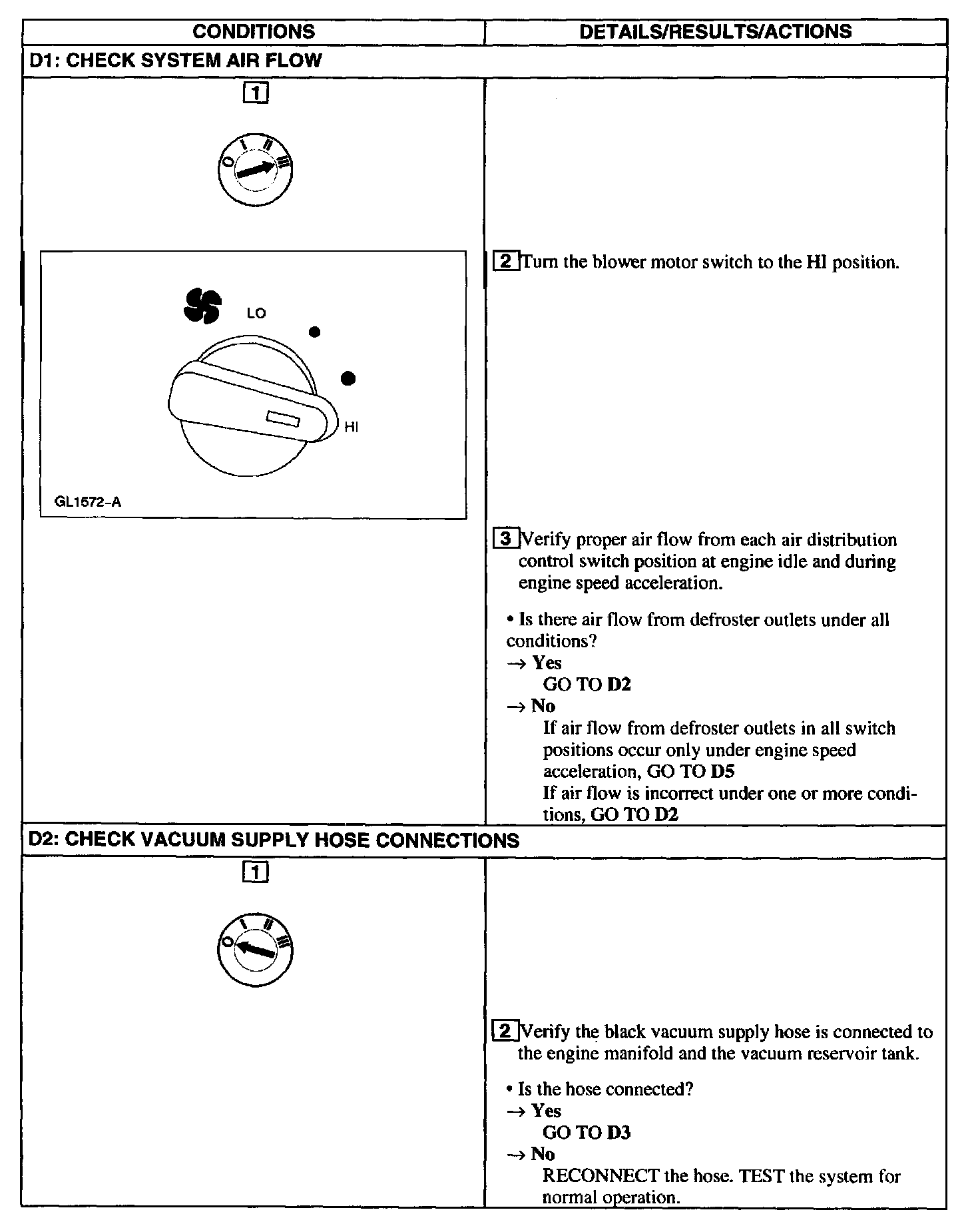

D1 - D2:

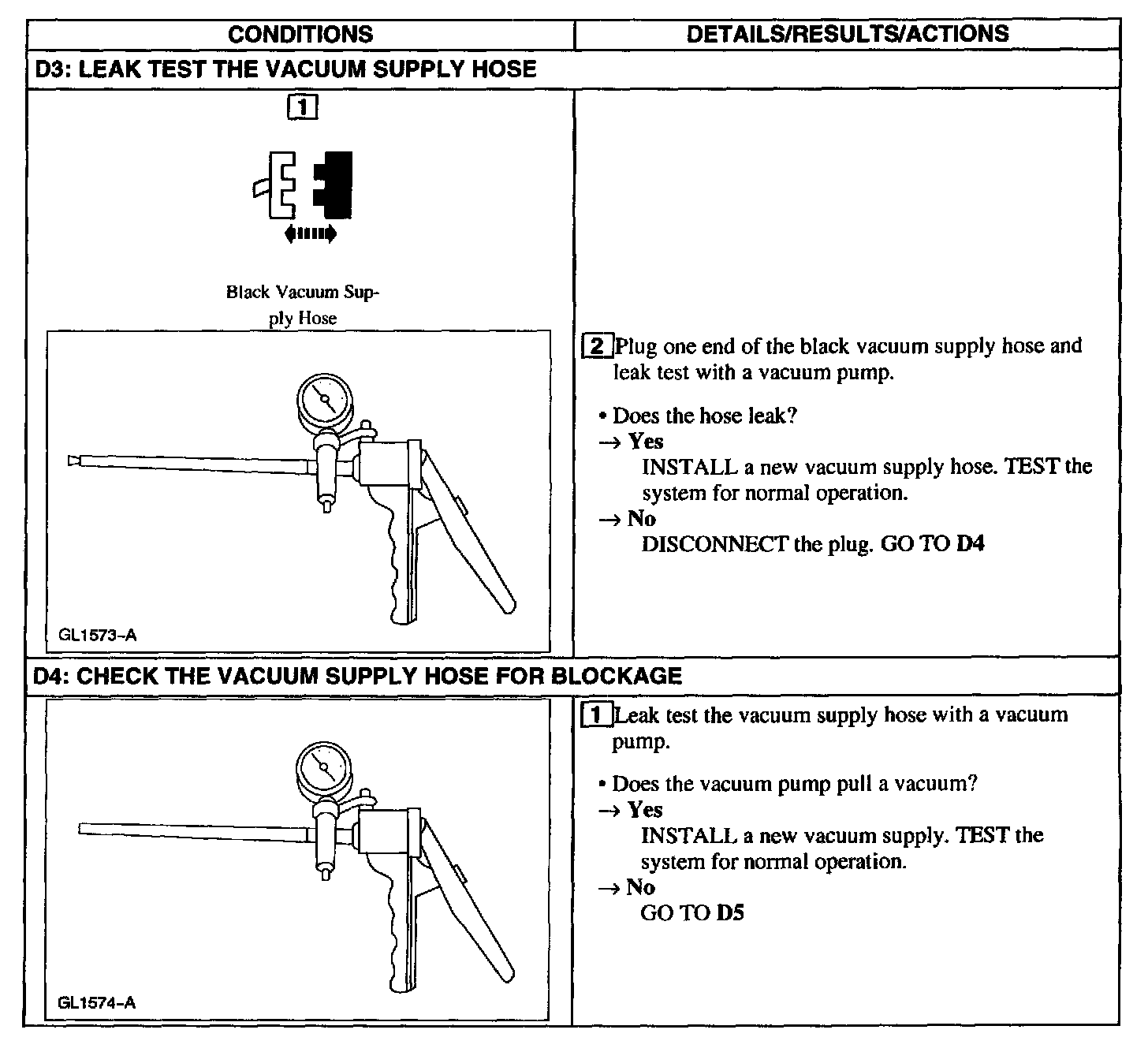

D3 - D4:

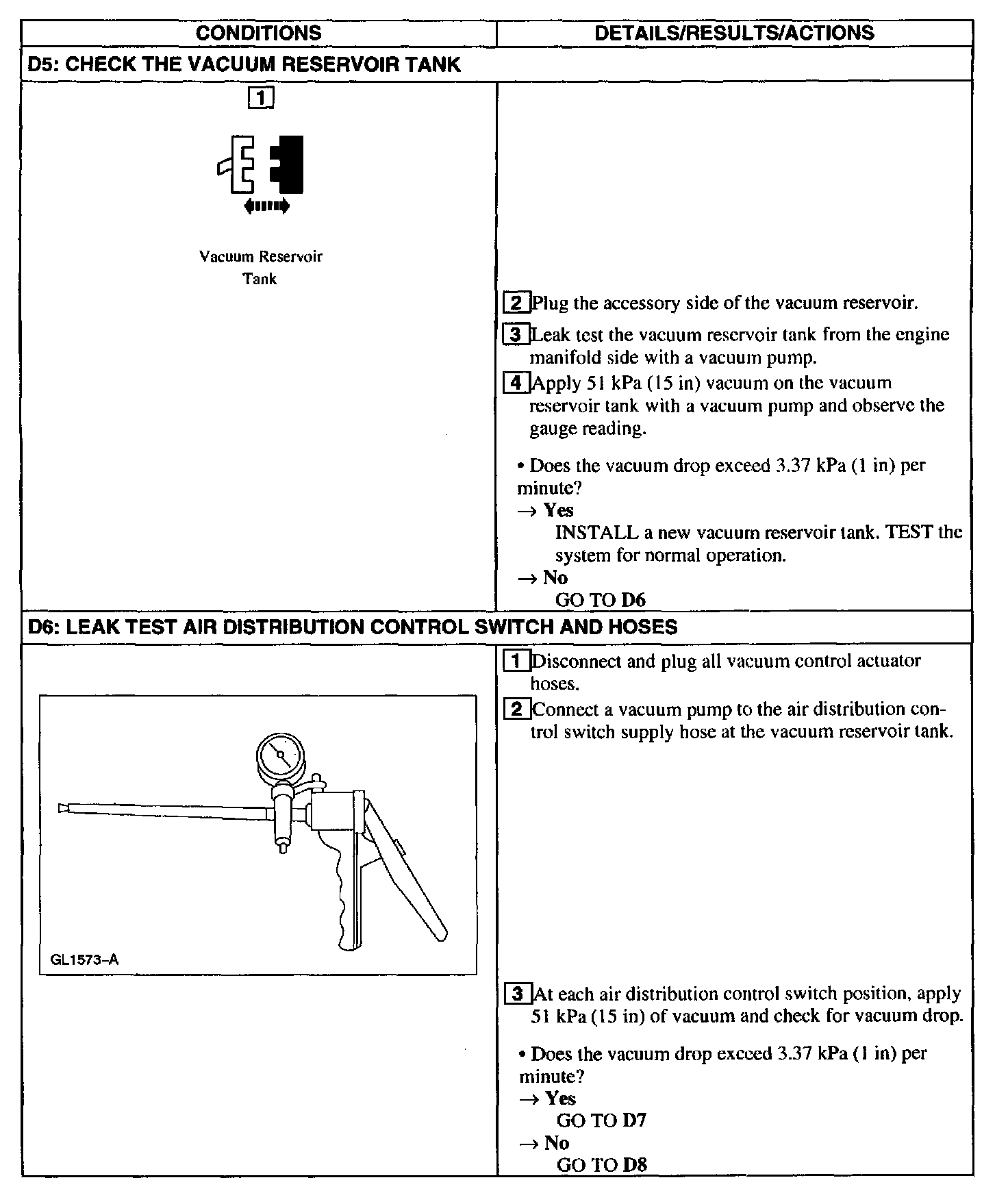

D5 - D6:

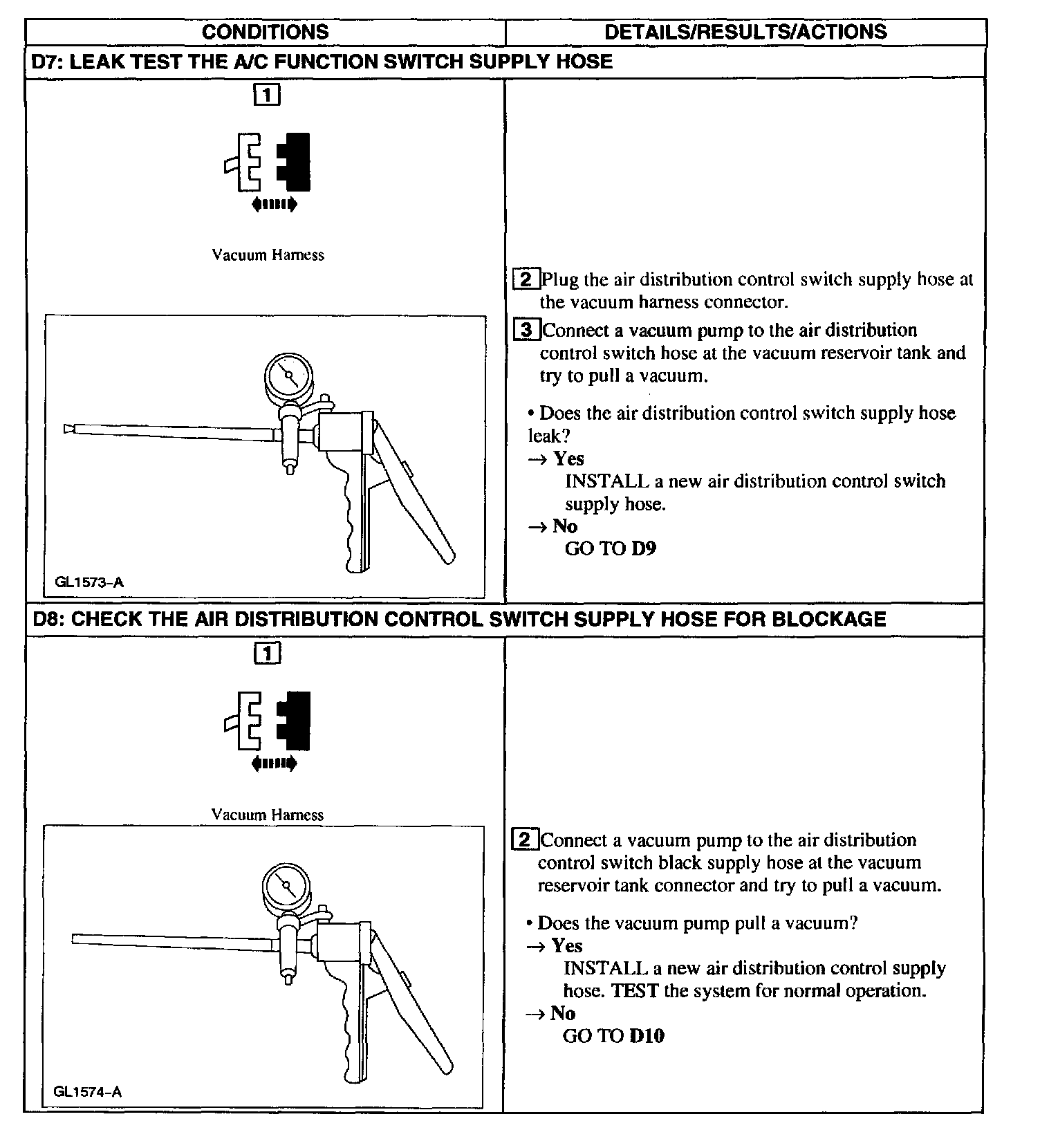

D7 - D8:

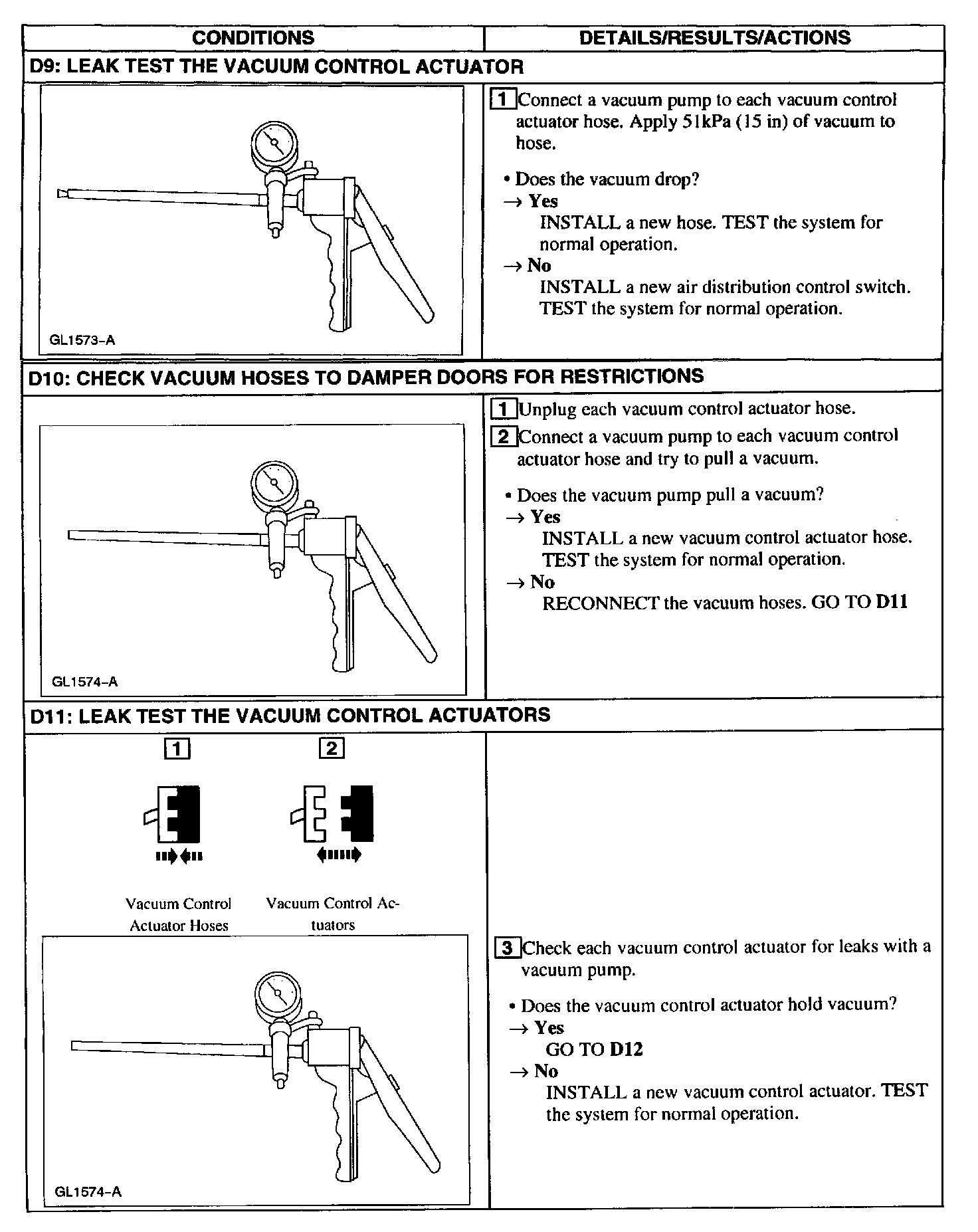

D9 - D11:

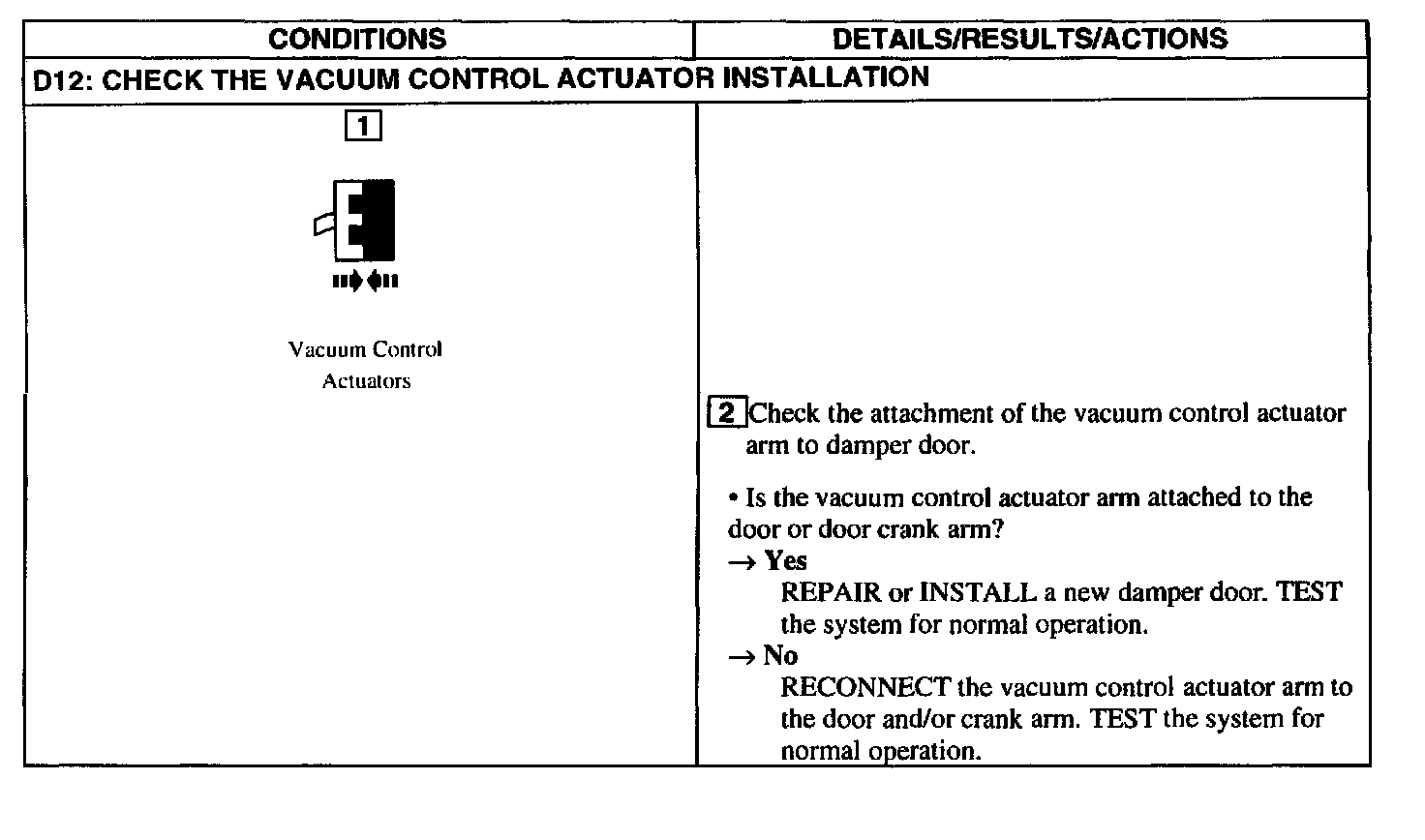

D12:
