Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Test C: Blower Motor Does Not Operate
Test C: Blower Motor Does Not Operate

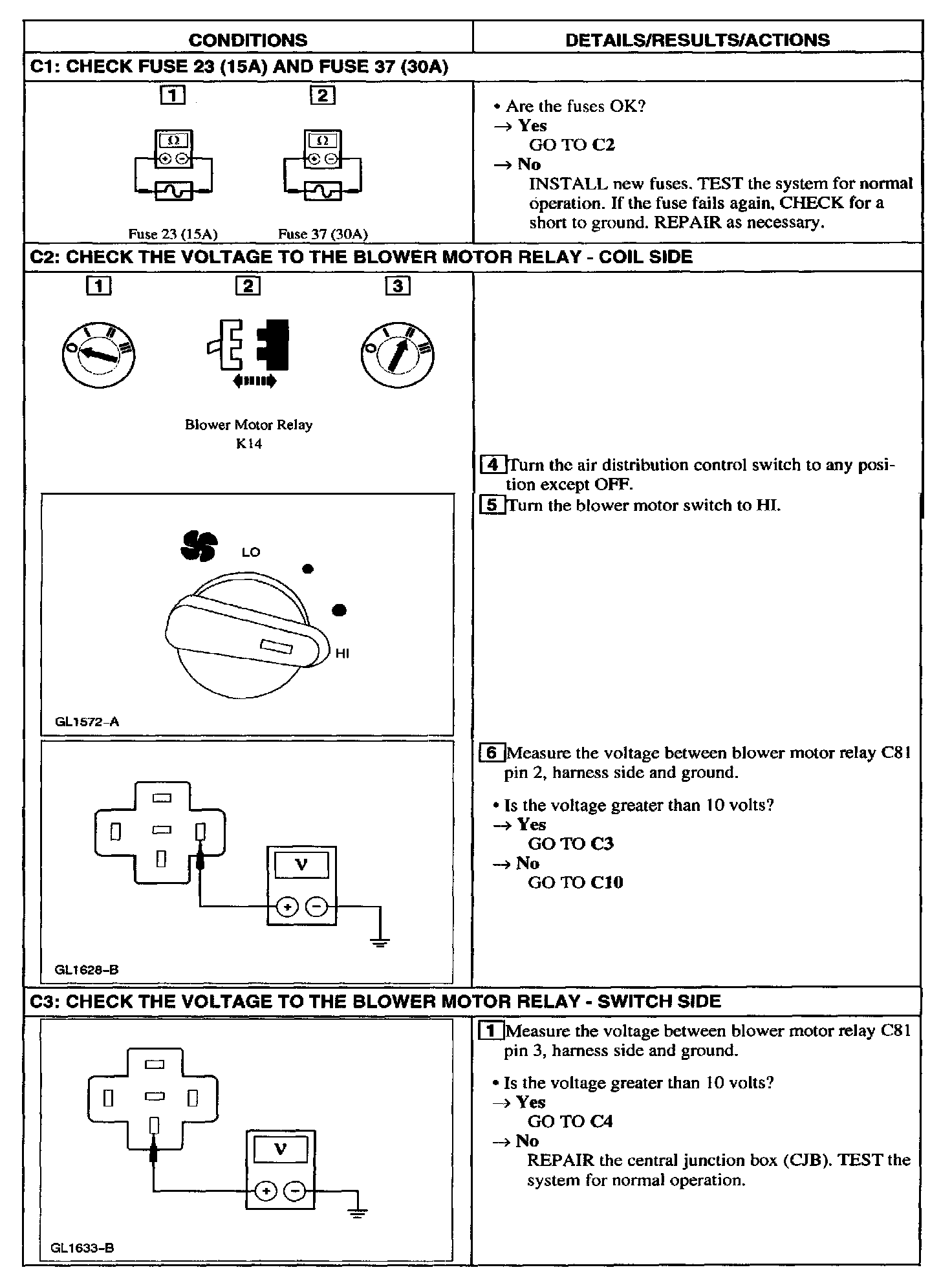

C1 - C3:

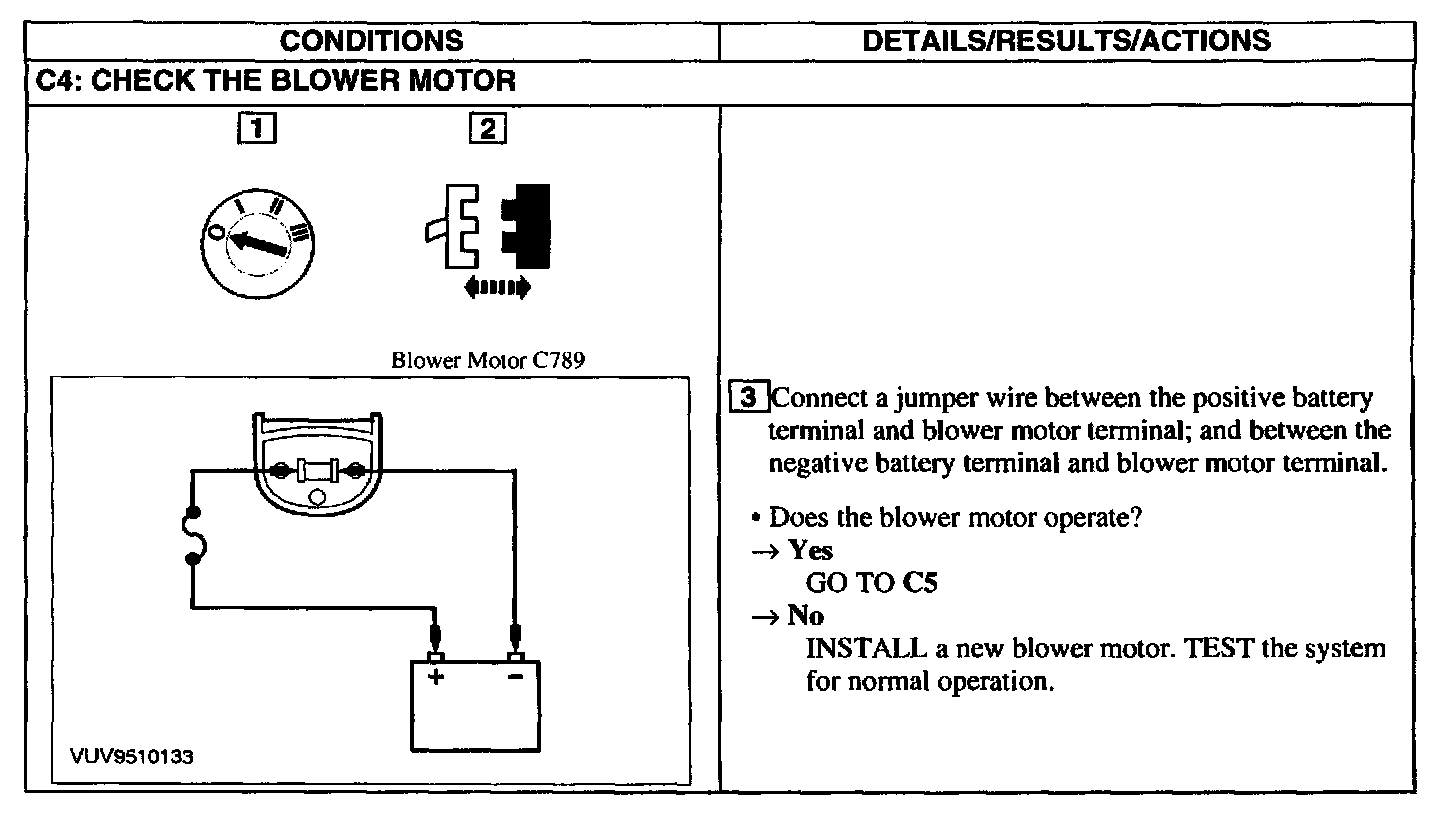

C4:
C5 - C6:

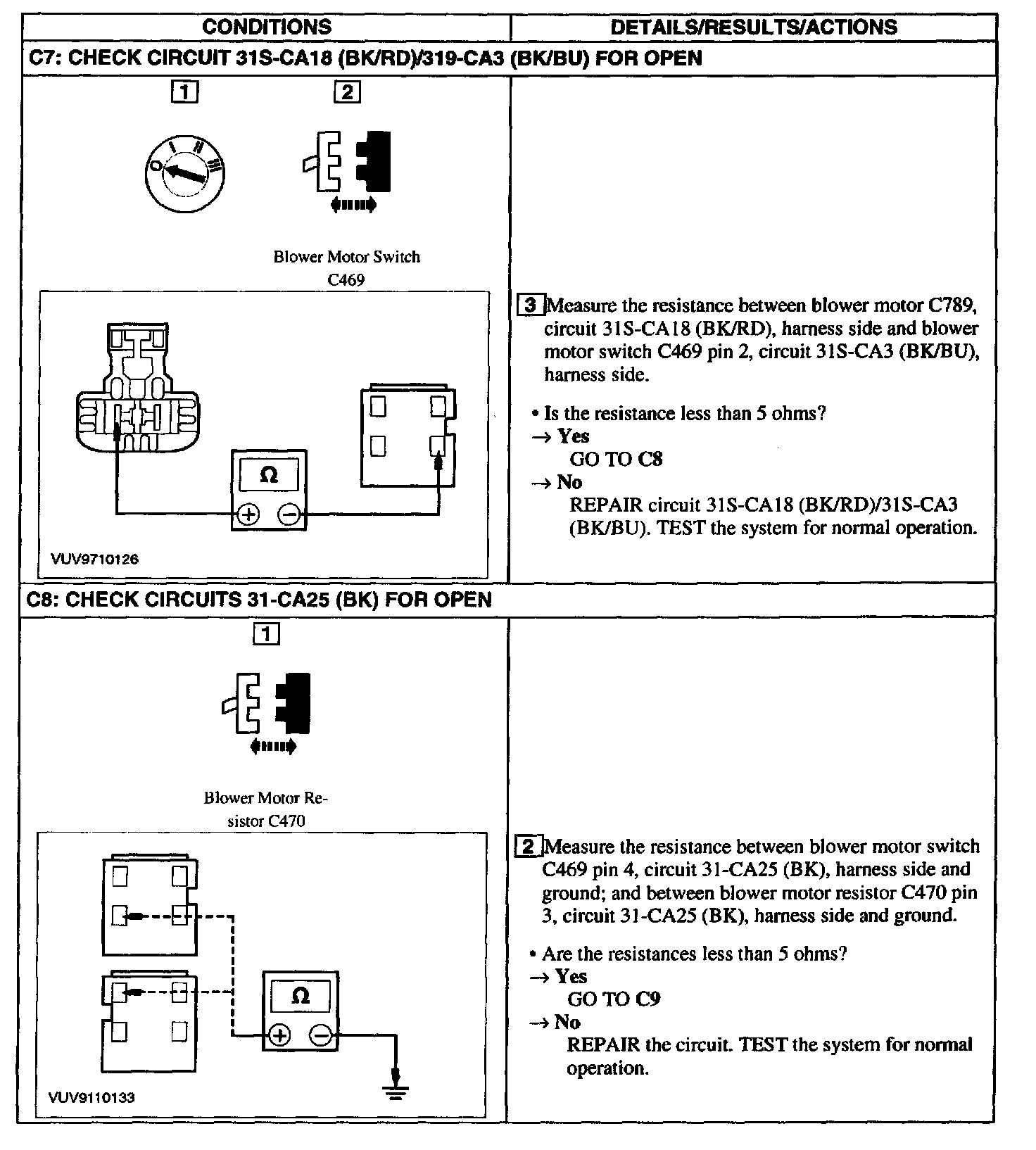

C7 - C8:

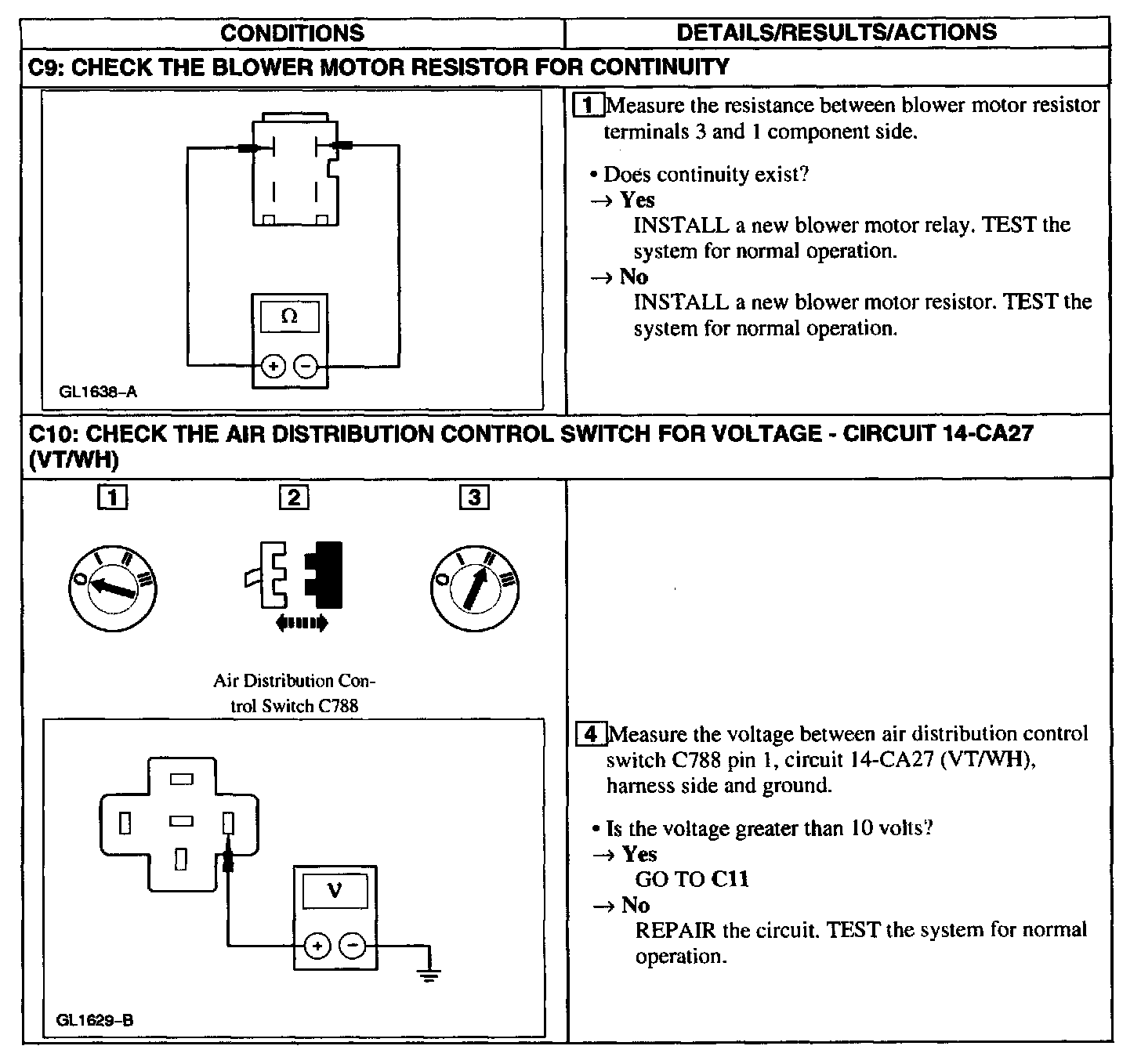

C9 - C10:
C11 - C12:
