Passenger Side

REMOVAL
1. Remove the passenger side register duct. For additional information, refer to Passenger Side Register Duct.

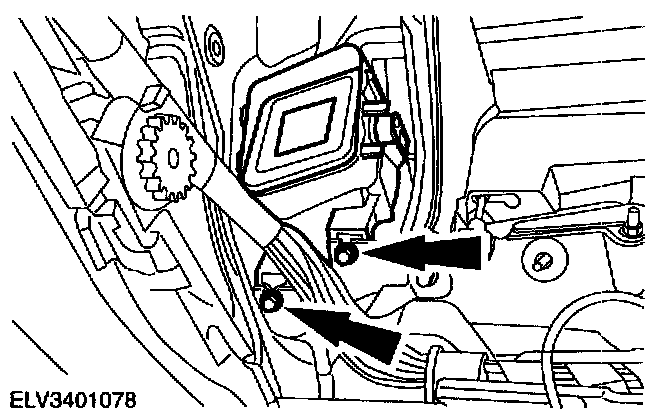

2. Remove the blend door.
- Disconnect the air hose.
- Remove the bolts.
- Remove the blend door.

INSTALLATION
1. To install, reverse the removal procedure.
