Accumulator HVAC: Service and Repair

SPECIAL TOOL(S)

REMOVAL
1. Perform the Refrigerant Discharging and Recovery Procedure. Refrigerant Discharging and Recovery procedure

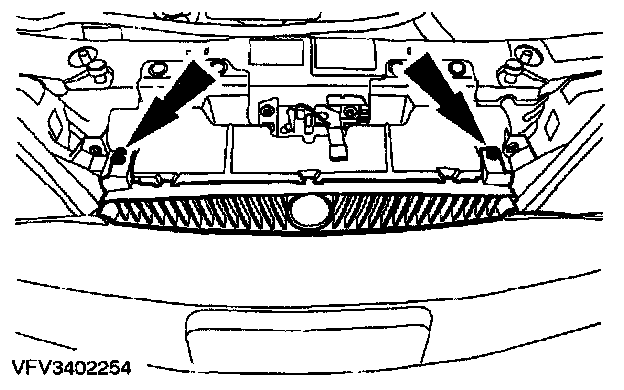

2. Remove the radiator grille.

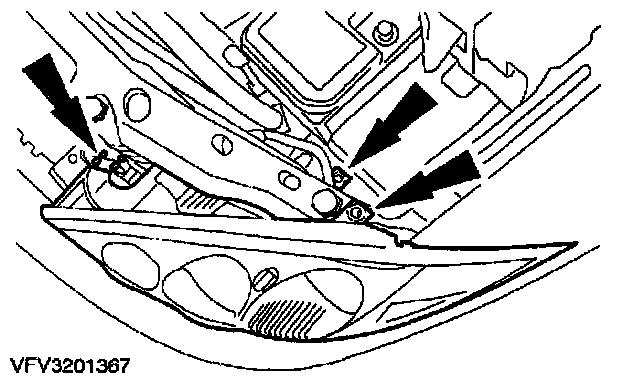

3. Remove the left-hand headlamp assembly.







4. Disconnect electrical connectors.

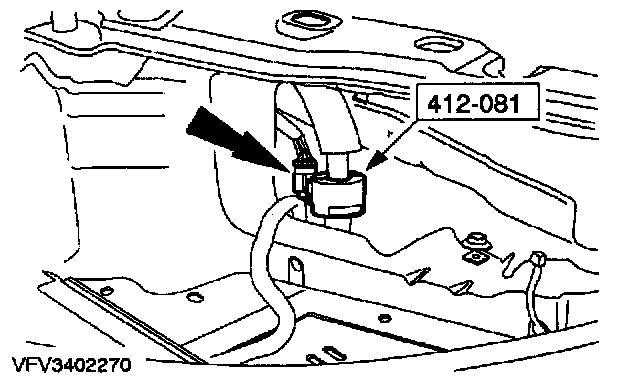

5. Using the special tool disconnect the upper tube from the suction accumulator to the A/C compressor.
- Disconnect the electrical connector.

NOTE: Seal the tube and the connection with plugs







6. Support the radiator with pins (left-hand side shown).
7. Raise and support the vehicle. For additional information, Maintenance/Service and Repair.







8. Remove the radiator splash shield.







9. Remove the radiator bracket (left-hand side only).
- Rotate the radiator bracket clockwise 90 degrees.

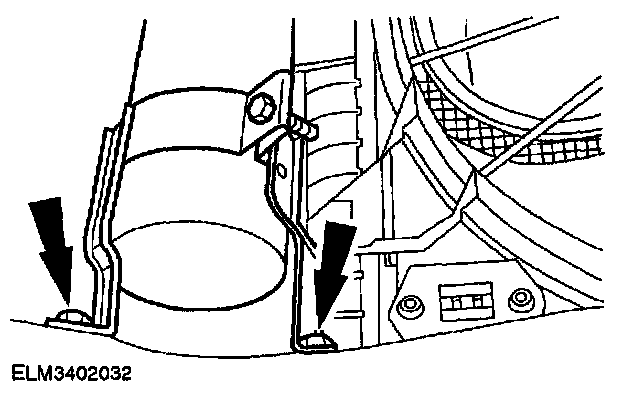

10. Detach the suction accumulator bracket from the subframe.
11. Remove the suction accumulator.

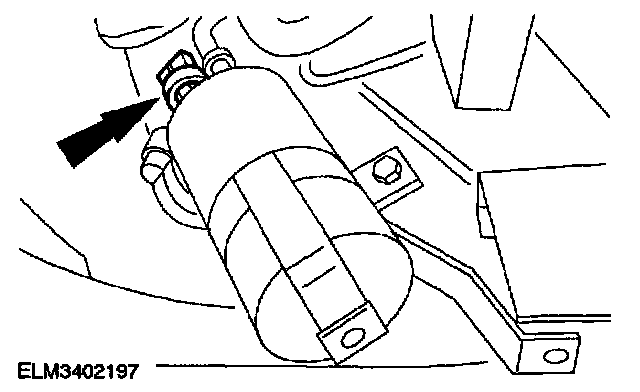

12. Remove the A/C cycling switch.

INSTALLATION

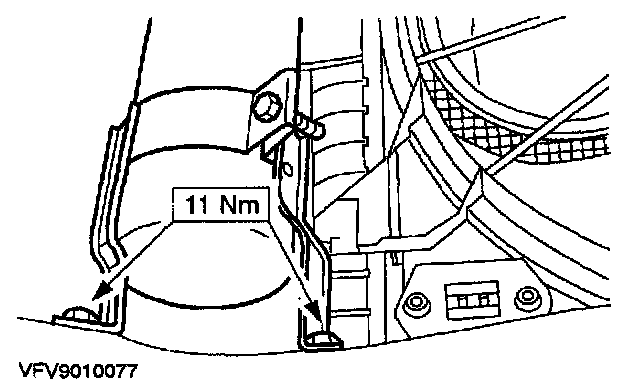

1. To install, reverse the removal procedure.
- Check the air conditioning system for normal operation.

NOTE: Install new O-ring seals and coat them with refrigerant oil.
