Tailpipe

Removal
1. Raise and support the vehicle.

2. Note: Support the front and rear muffler with a suitable jackstand.

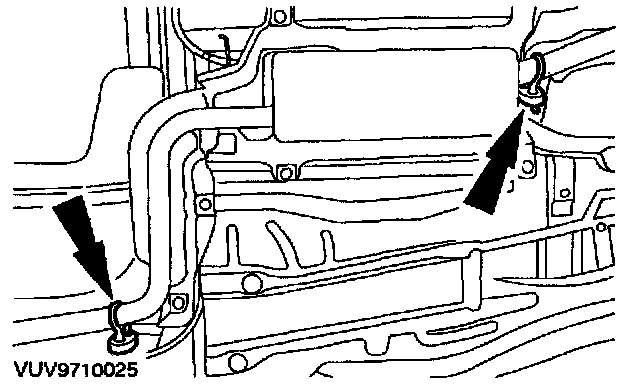

Remove the nuts.





3. Detach the front muffler exhaust hanger insulators.





4. Remove the front and rear muffler.

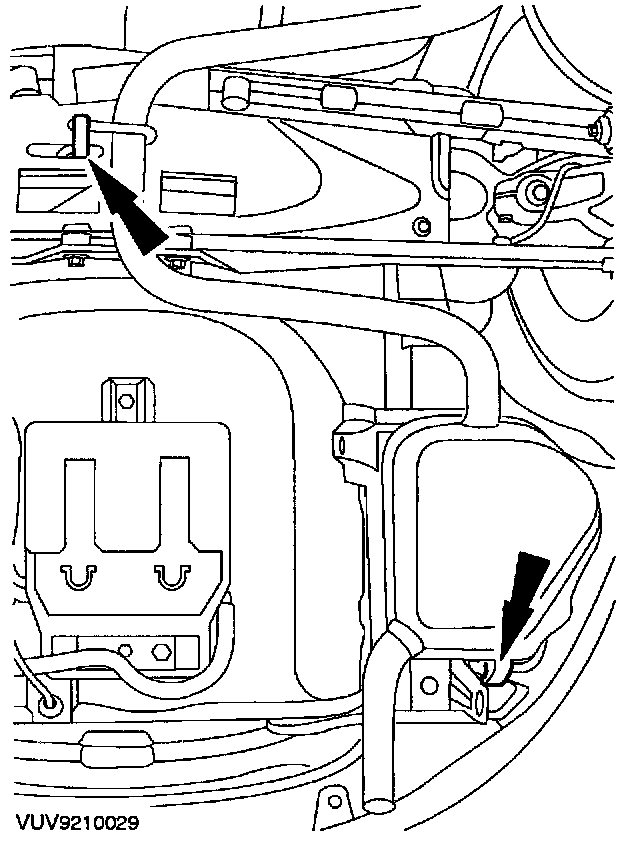

^ Detach the rear muffler exhaust hanger insulators.

Installation

Caution: The hanger insulators are constructed of a special material. Use only the correct specification insulators.

Note: Check the hanger insulators for damage or fatigue. Install new insulators if required.





1. To install, reverse the removal procedure.
^ Lubricate the exhaust hanger insulators with Myrpol Lubricant D7AZ-19553-AA or equivalent meeting Ford specification ESEM99B 144-B.
