Timing Component Alignment Marks: Locations

Special Service Tools:





Timing Tool, Camshaft Alignment T94P-6256-CH





Timing Peg, Crankshaft Position T97P-6000-A





Cam Sprocket Holding/Removing Tool T74P-6256-B

CAUTION: Incorrect removal or installation of the timing belt can result in damage to internal engine components.

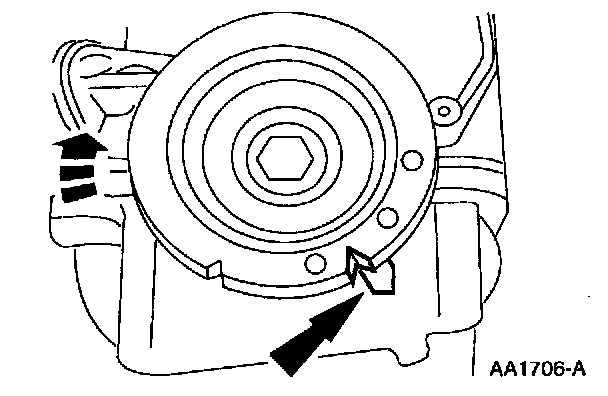

Crankshaft to TDC on cylinder No.1

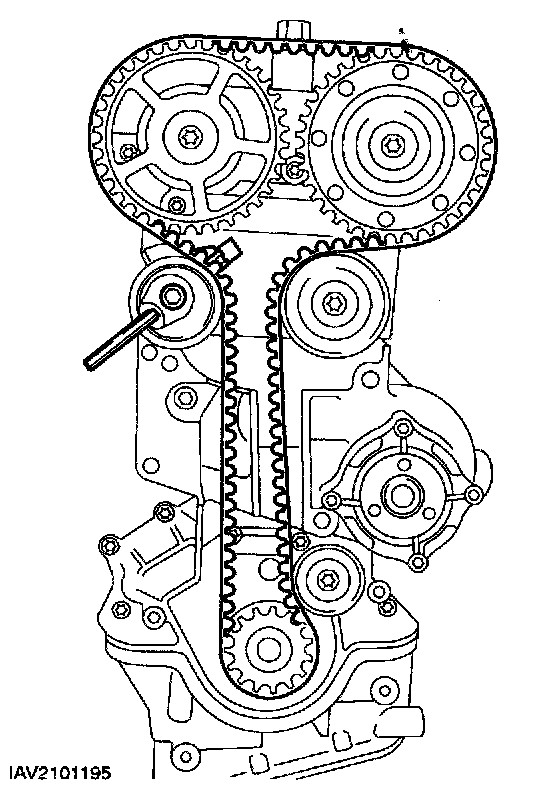

Design WITH lower idler pulley shown (built up to 06/1999)

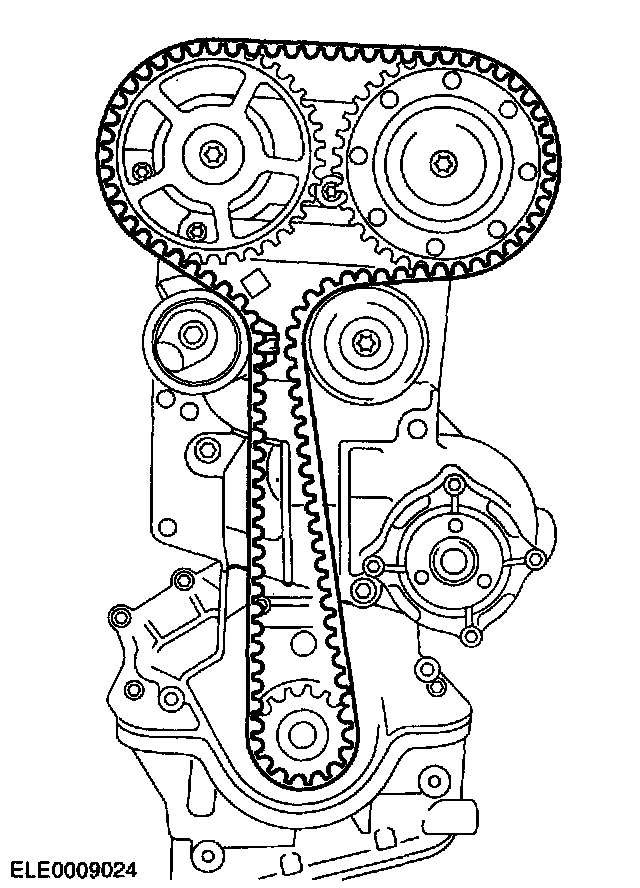

Design WITHOUT lower idler pulley shown (built up to 06/1999)


For complete Timing Belt Removal and Installation information: Service and Repair
