Camshaft End Play

1. Note: Make sure that the camshaft is to specification.

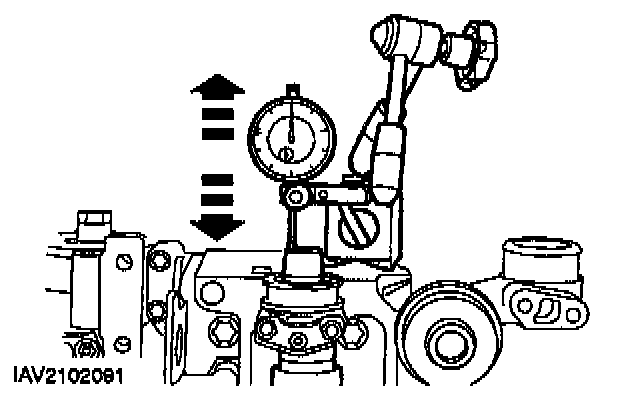

Using a Dial Indicator Gauge, measure the end play.
^ Slide the camshaft in both directions. Read and note the maximum and minimum values on the Dial Indicator Gauge.
^ End play = maximum value minus minimum value If the measurement is out of specification, install new components.
