Front Crankshaft Seal: Service and Repair

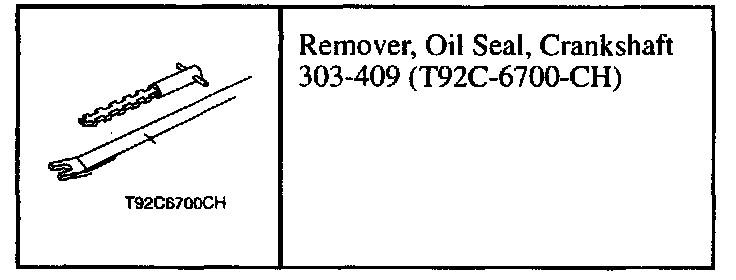

Special Tools:

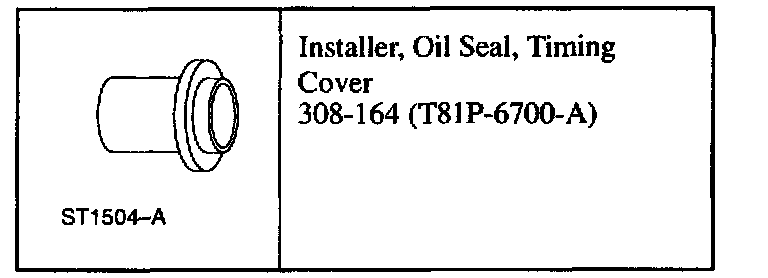

Special Tools:

Removal
1. Remove the timing belt.

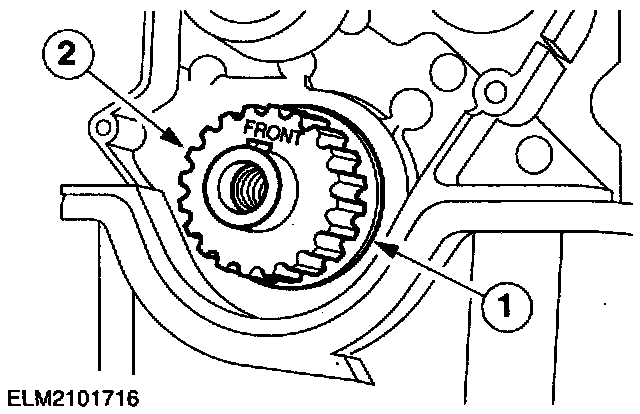

2. Note: FRONT marking and position of the timing belt thrust washer.





Remove the crankshaft timing pulley.
1. Remove the crankshaft timing pulley.
2. Remove the timing belt thrust washer.

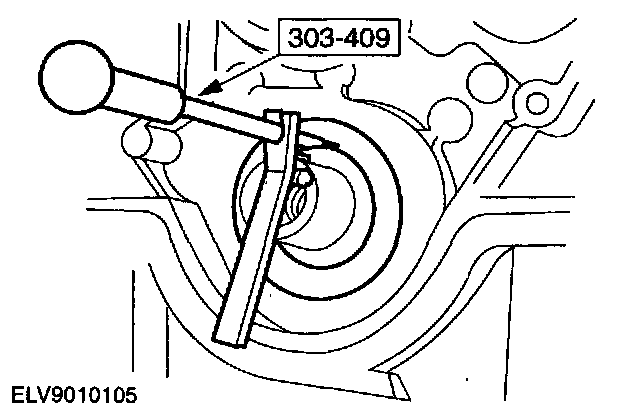

3. Using the special tool, remove the crankshaft front oil seal.

Installation

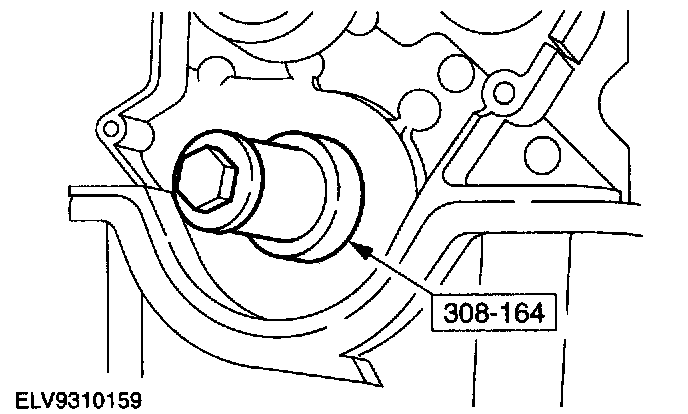

1. Using the special tool, install the crankshaft front oil seal.

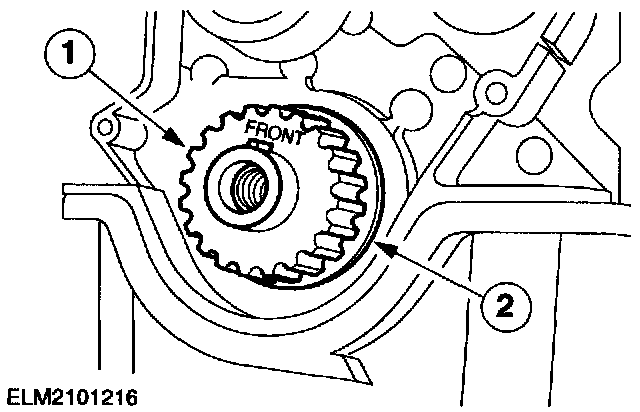

2. Note: FRONT marking and position of the timing belt thrust washer. Install the crankshaft timing pulley.





1. Install the timing belt thrust washer.
2. Install the crankshaft timing pulley.

3. Install the timing belt.
