Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams >> Fuse Circuits >> F34

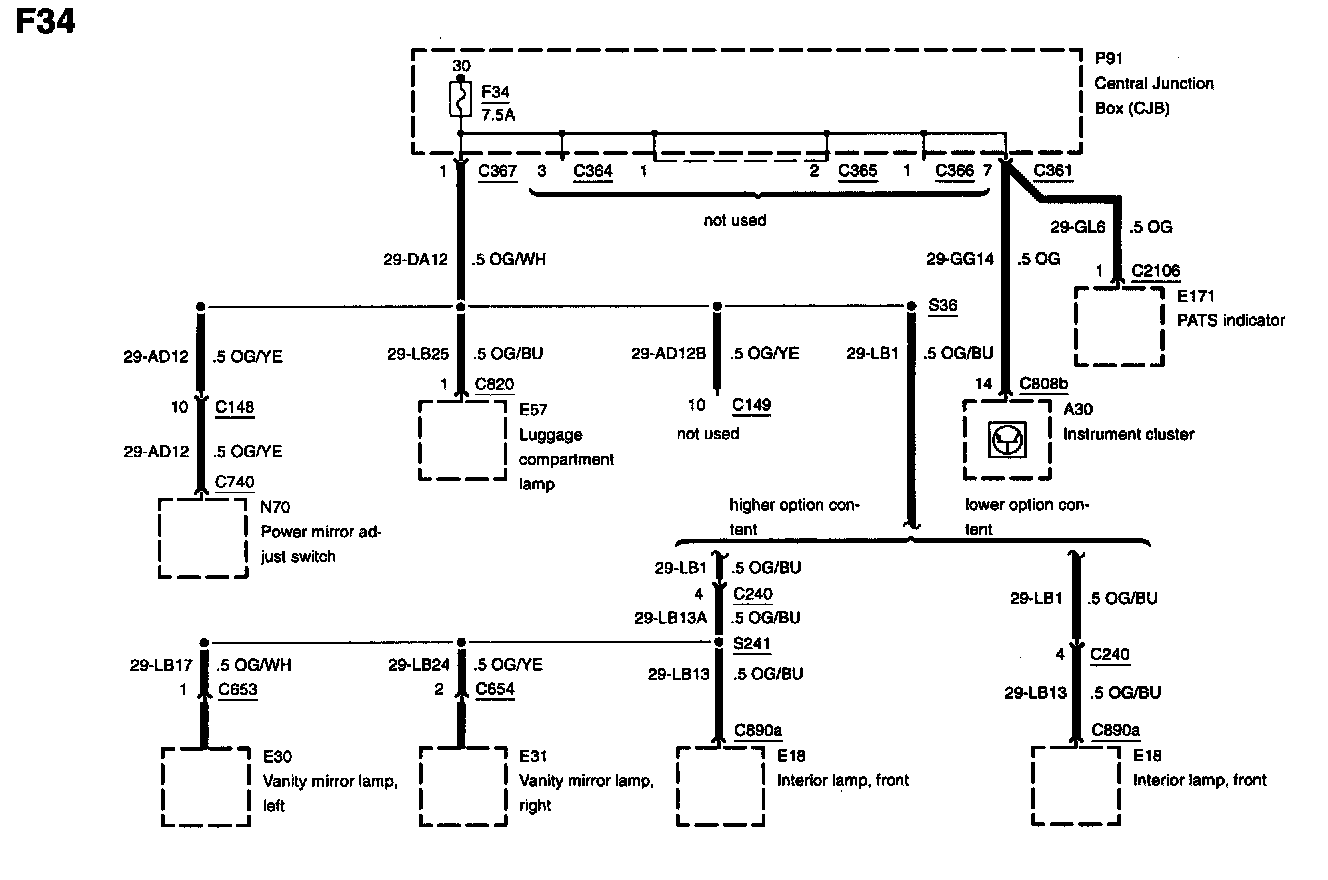

F34

Diagram 700-03-00-23:






Diagram 700-02-00-3:
