Home >> Mercury >> 2000 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Brake Lamp

Brake Lamp

DETAILED DIAGRAMS

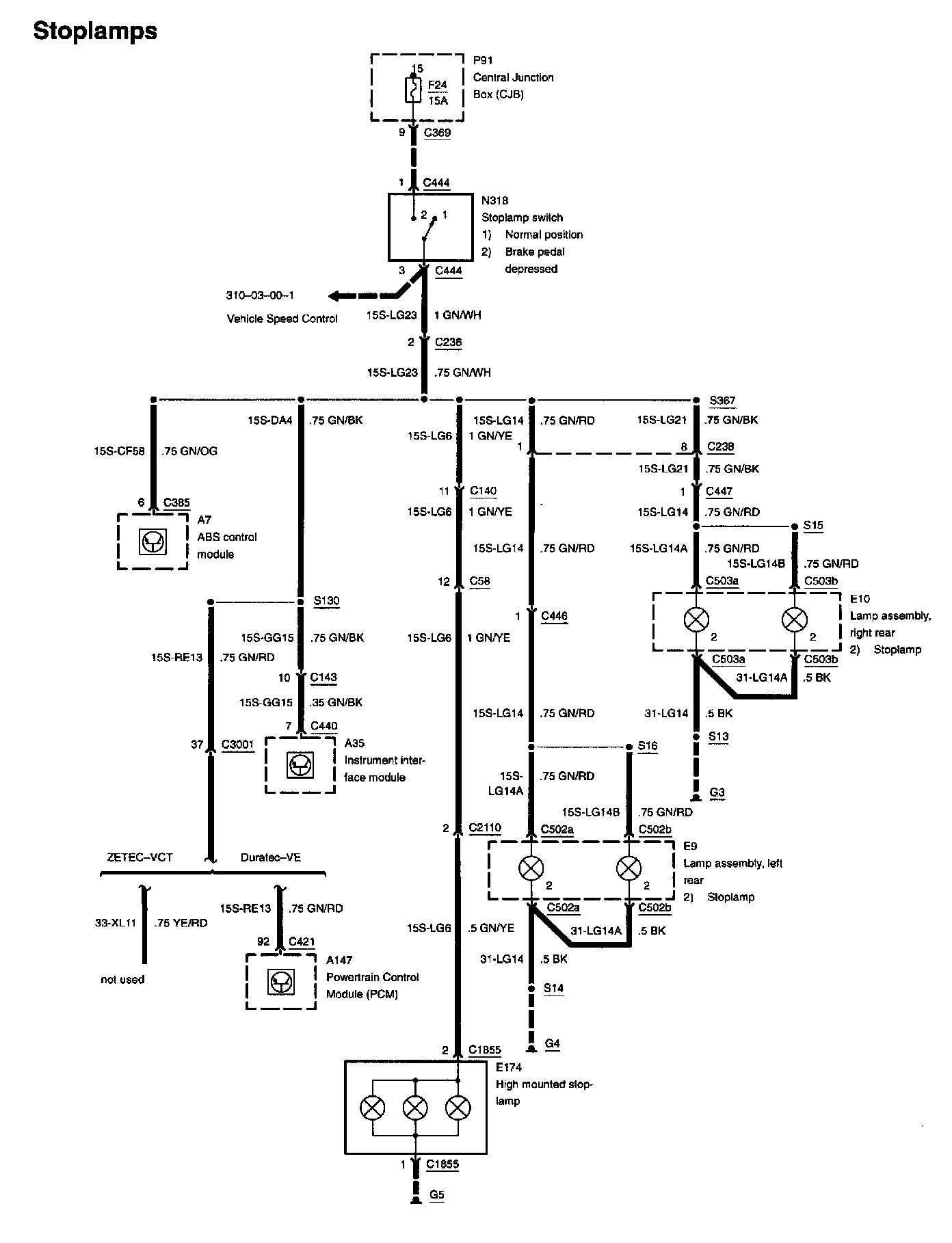

Diagram 417-01-00-2:






RELATED DIAGRAMS


Diagram 310-03-00-1:
