Mercury
>>
2000
>>
Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
General Module
>>
Instrument Interface Module
Instrument Interface Module
DETAILED DIAGRAMS

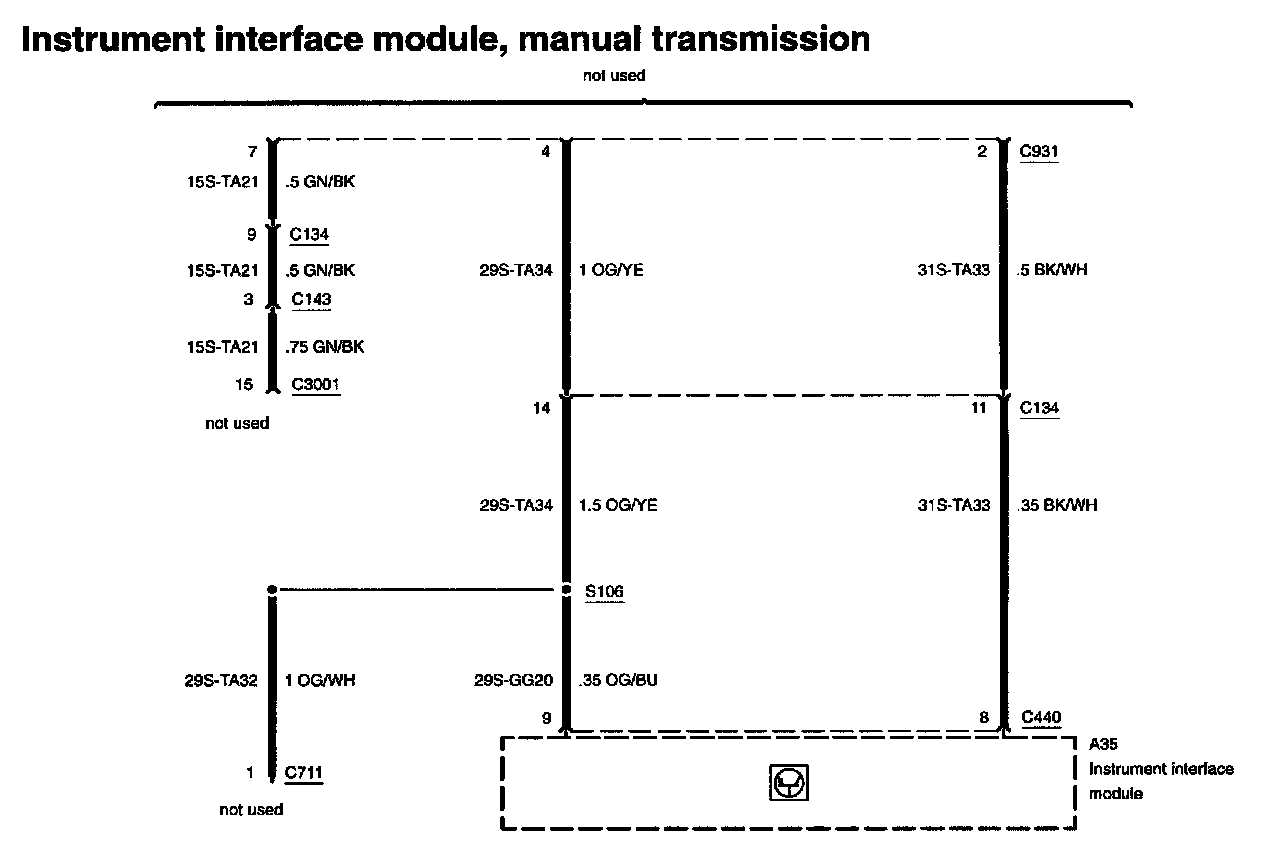

Diagram 419-10-00-4:

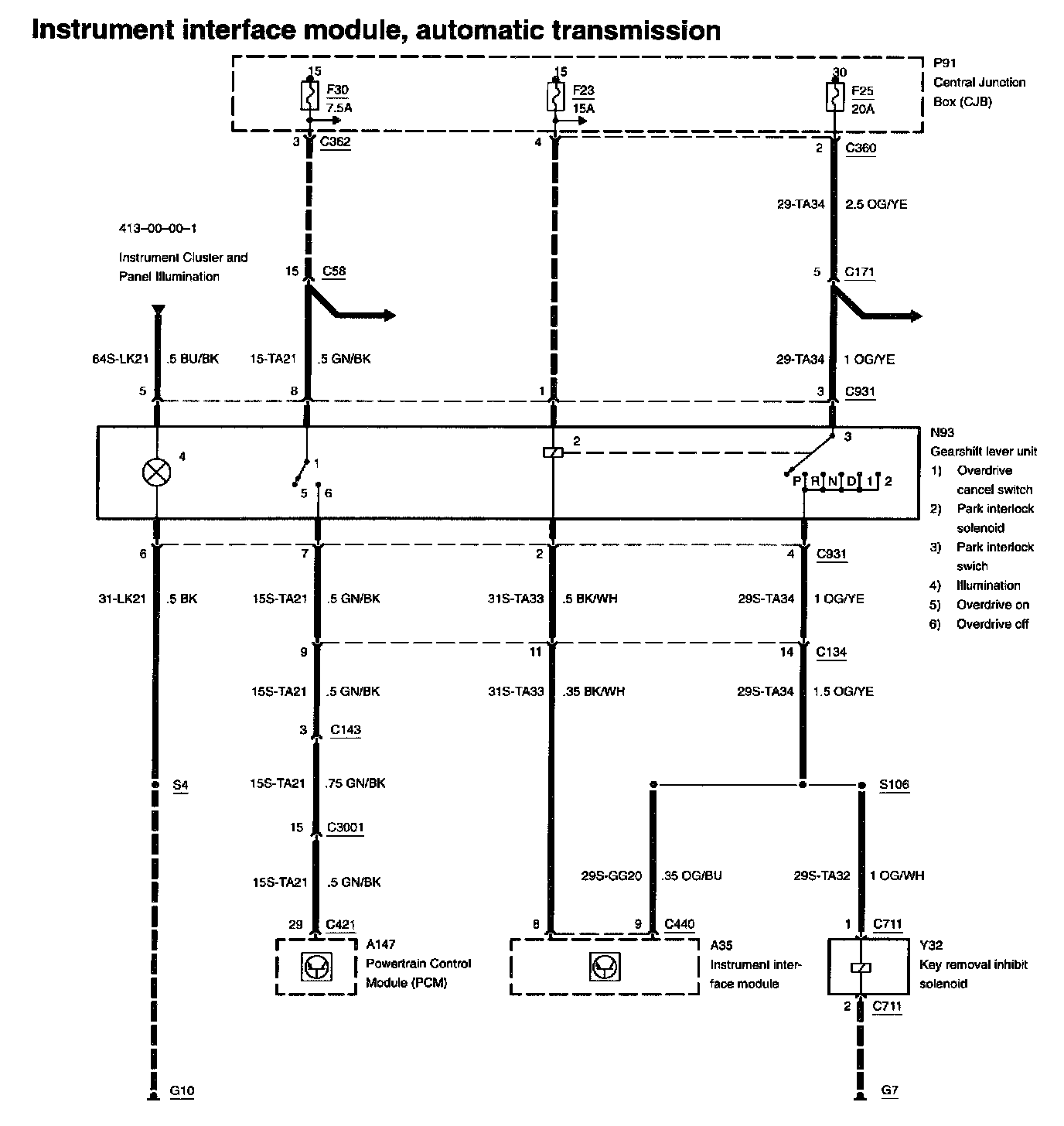

Diagram 419-10-00-5:

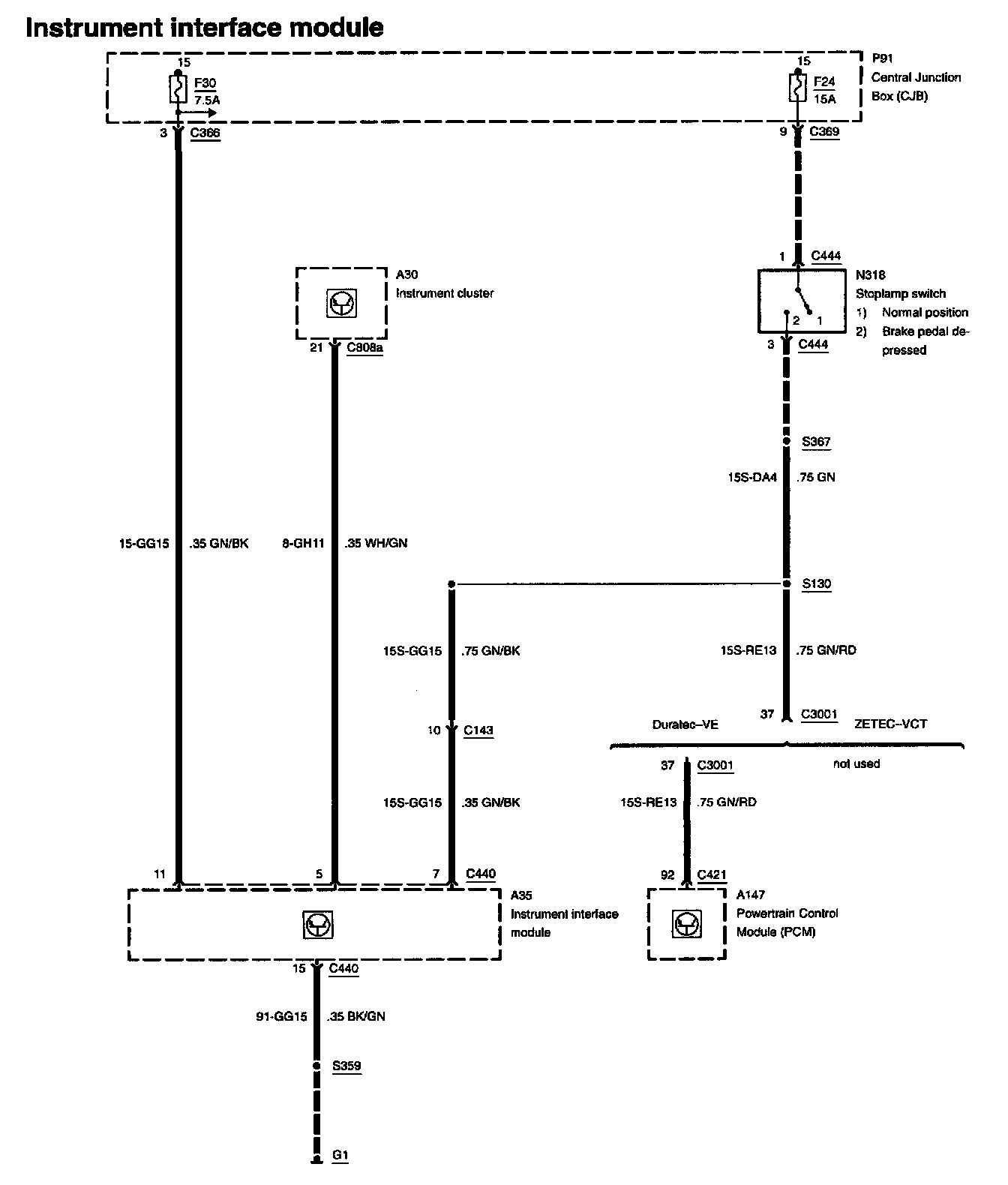

Diagram 419-10-00-6:
RELATED DIAGRAMS

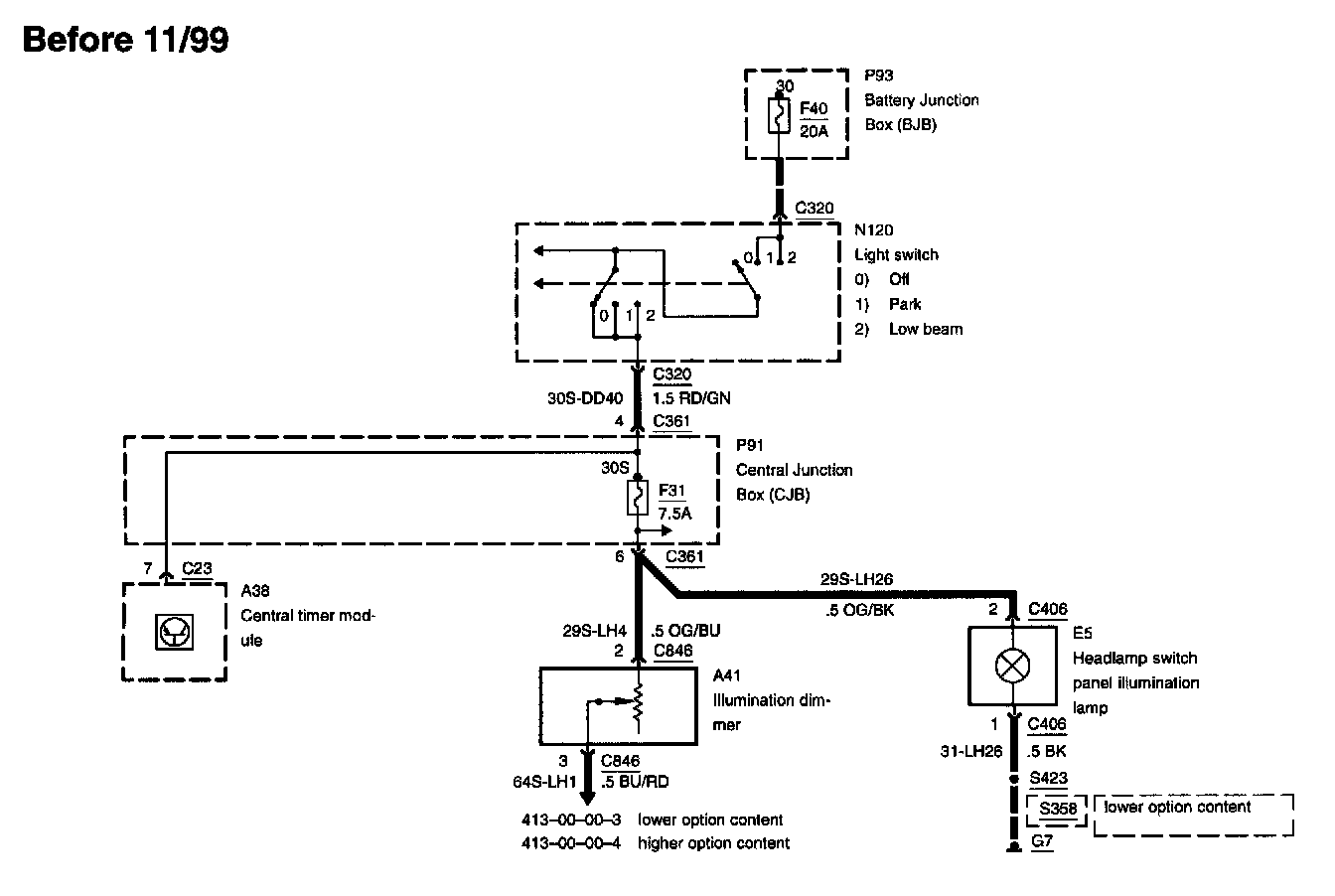

Diagram 413-00-00-1:
