Mercury
>>
2000
>>
Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Alarm Module, (Vehicle Antitheft)
>>
Anti-Theft/Central Locking Module
>>

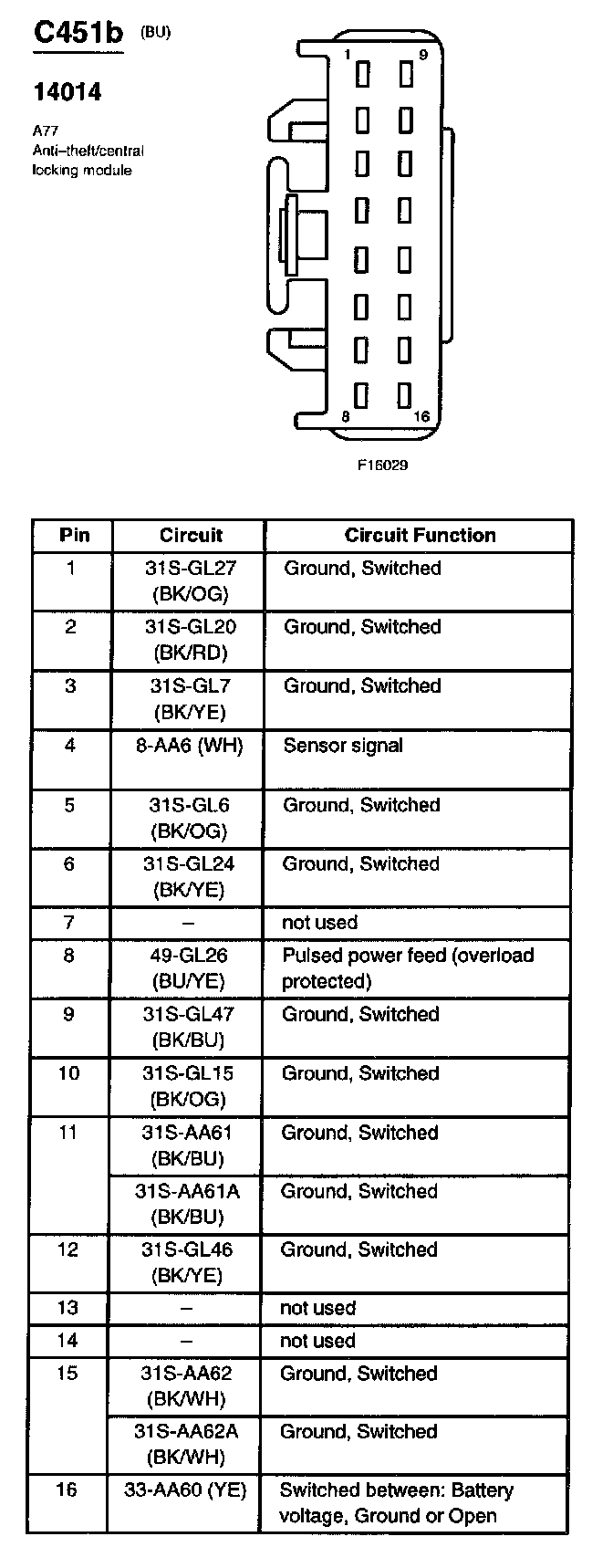

C451b
C451b
