Test J: Excessive Brake Pedal Effort
Test J: Excessive Brake Pedal Effort
PINPOINT TEST J: EXCESSIVE BRAKE PEDAL EFFORT

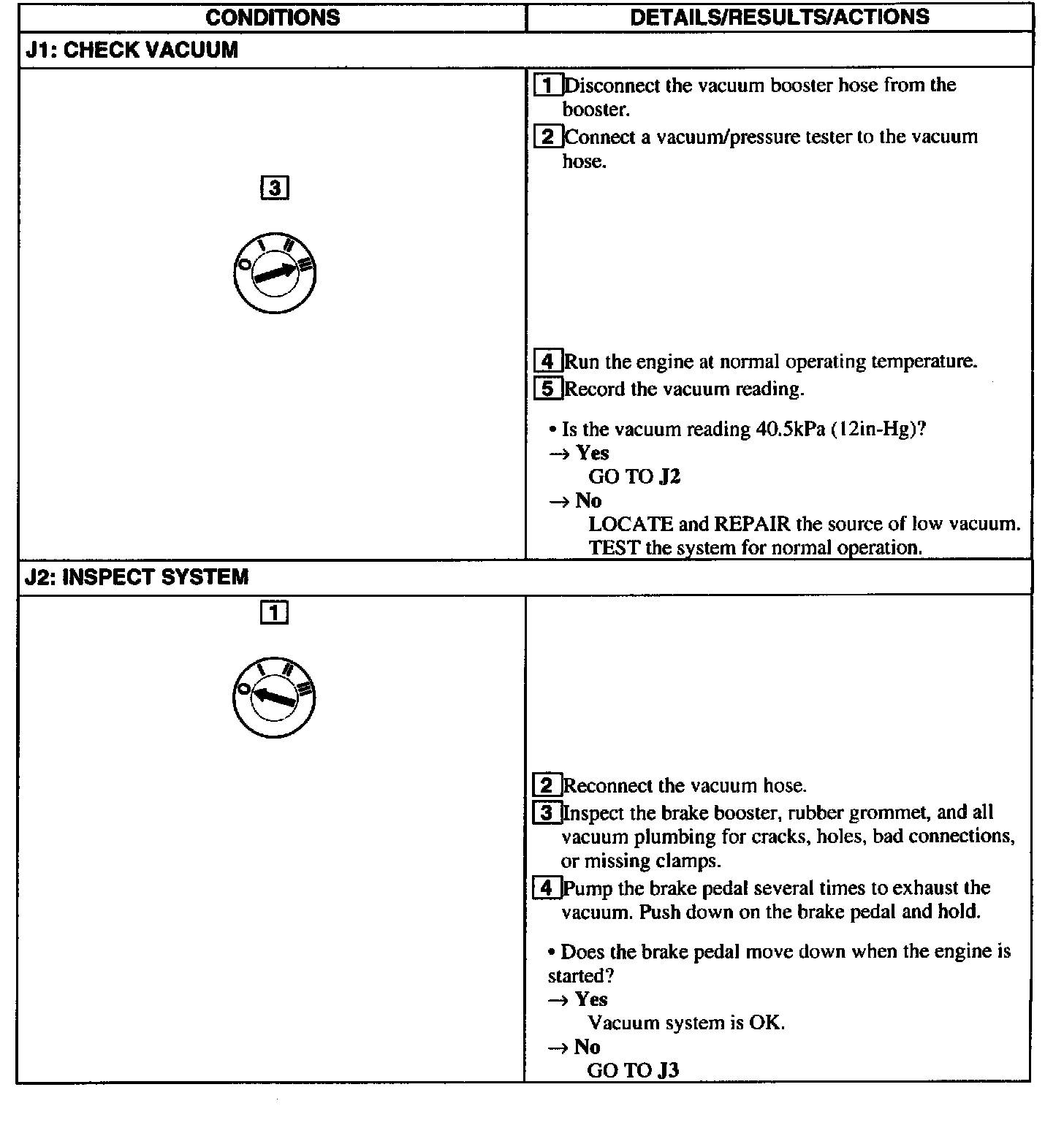

Test J1-J2:

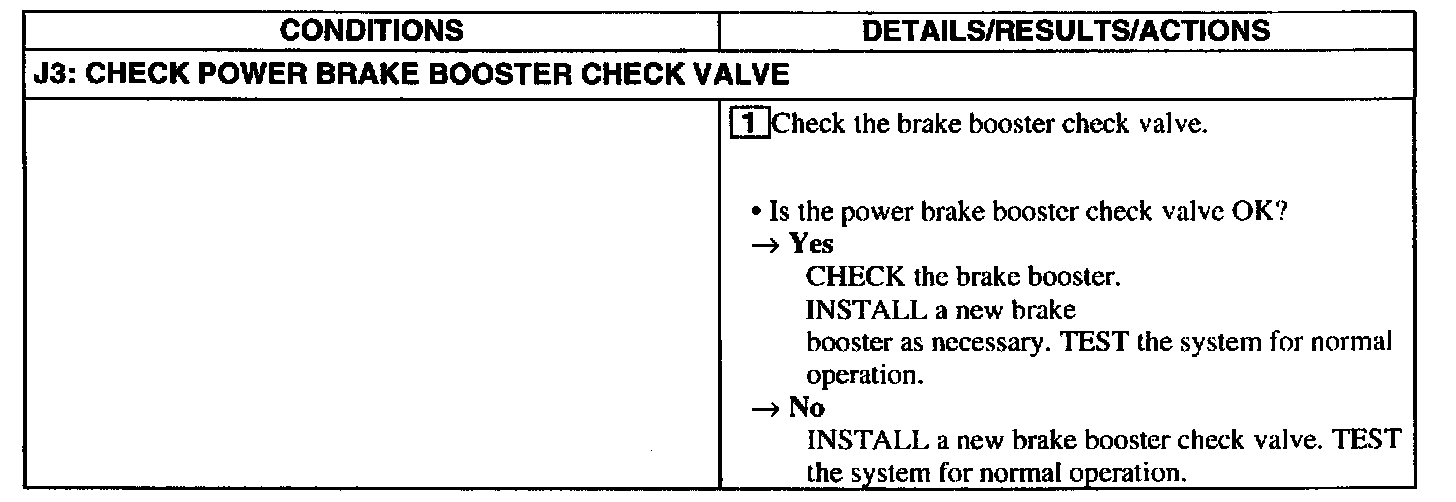

Test J3:
