Test B: Red Brake Warning Indicator Always On
Test B: Red Brake Warning Indicator Always On
PINPOINT TEST B: THE RED
BRAKE WARNING INDICATOR
IS ALWAYS ON

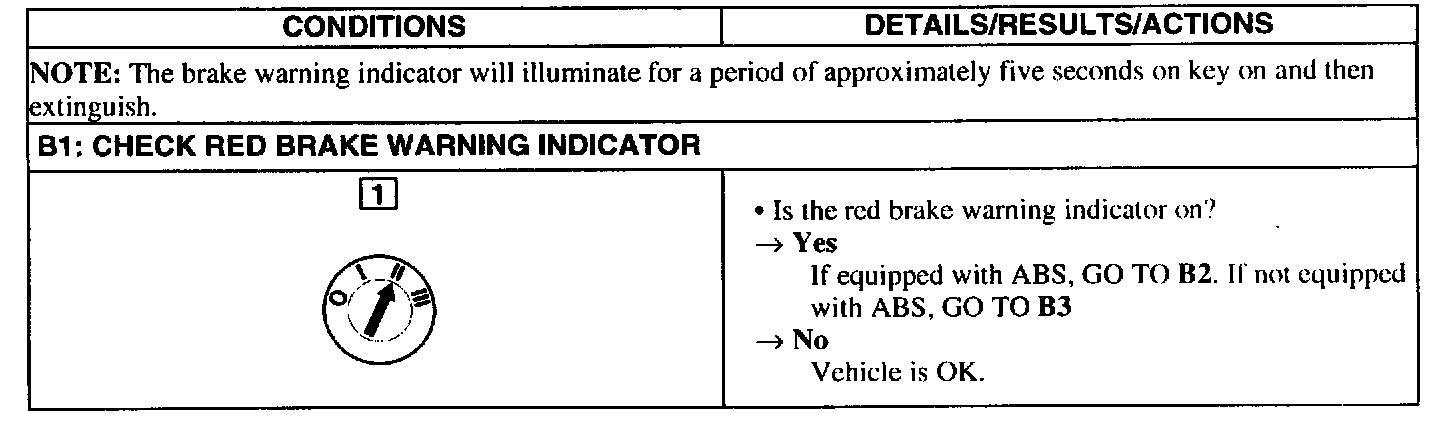

Test B1:

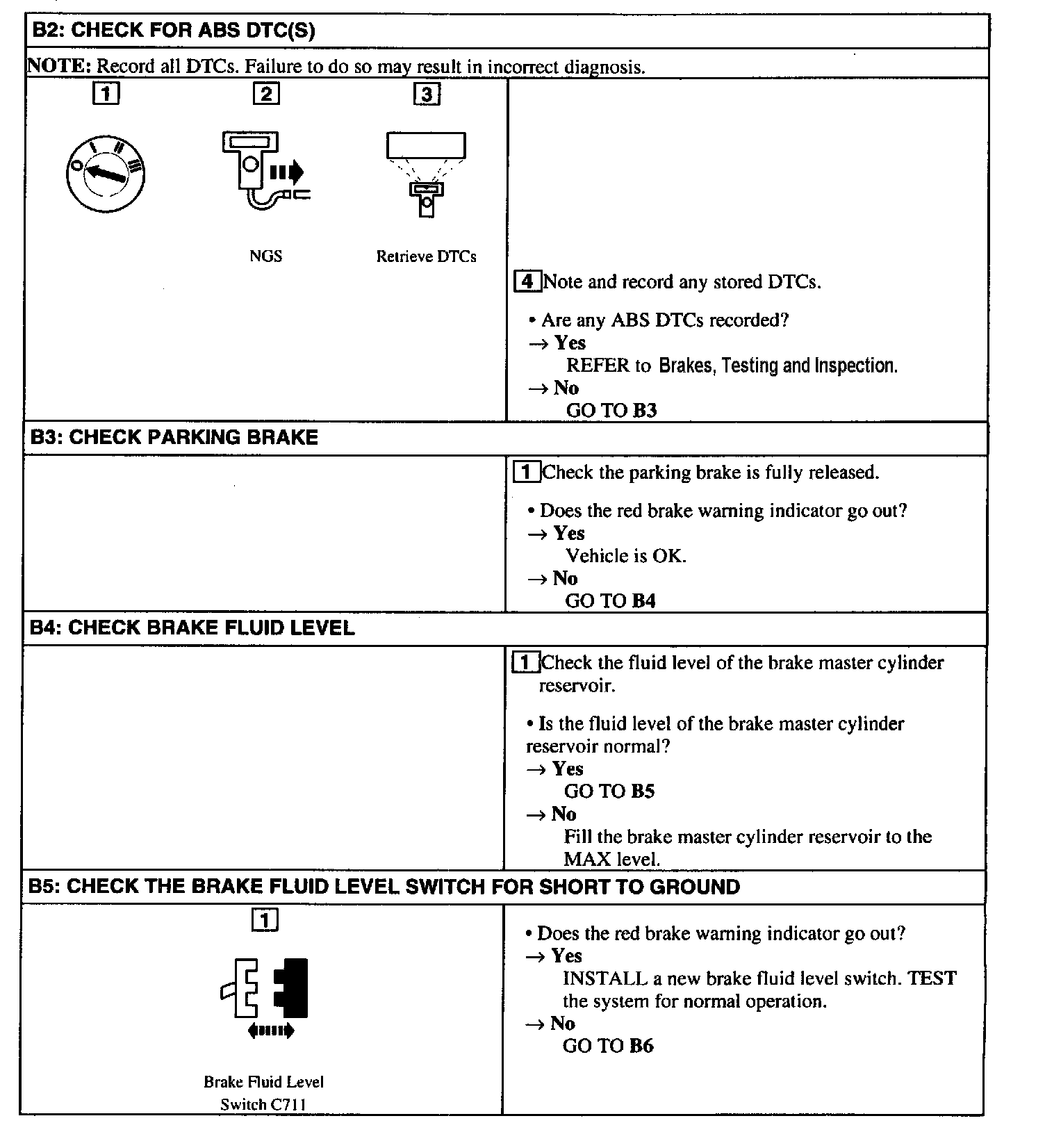

Test B2-B5:

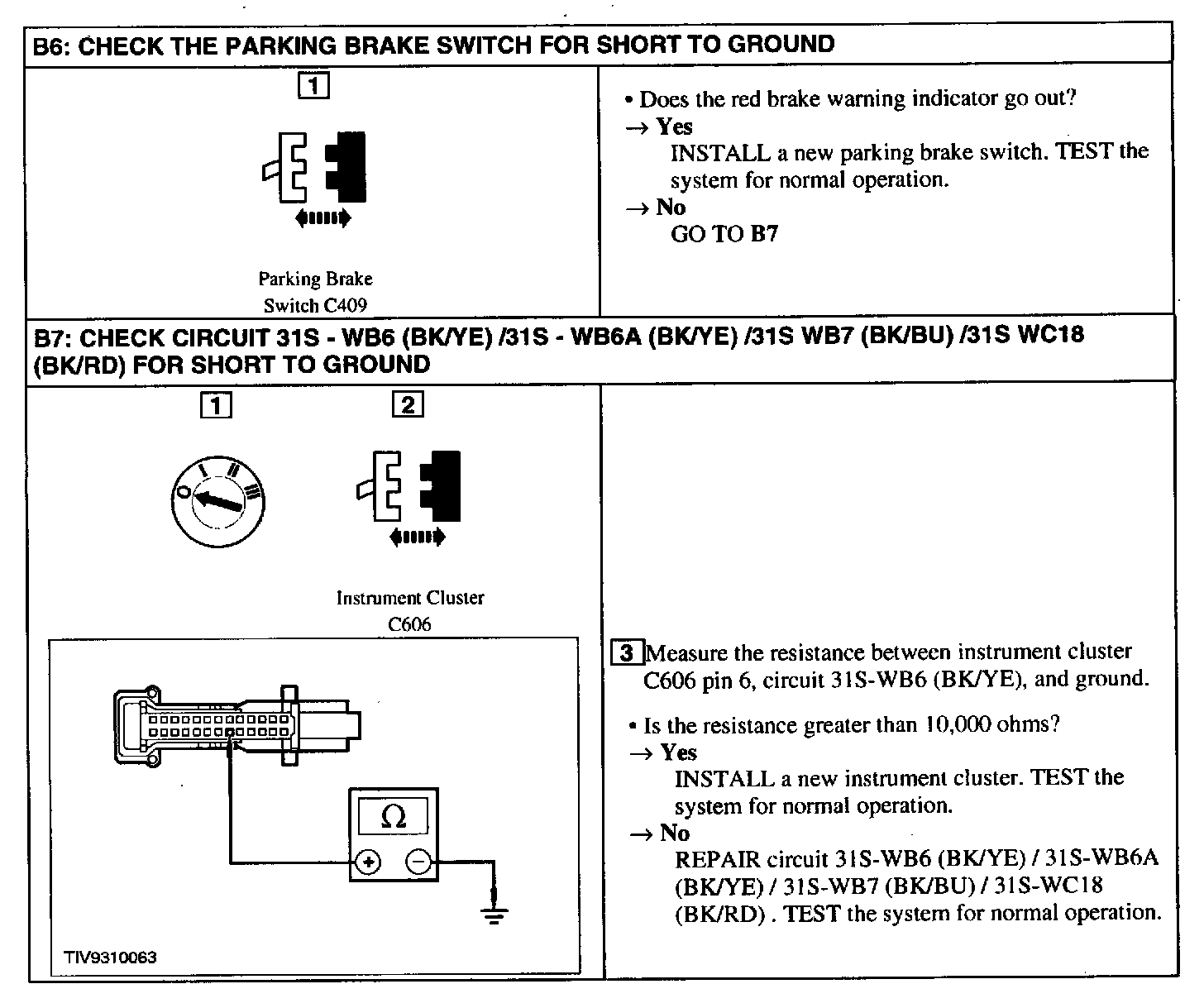

Test B6-B7:
