Rear

Removal
1. Loosen the wheel nuts.
2. Raise and support the vehicle.
3. Remove the wheel.

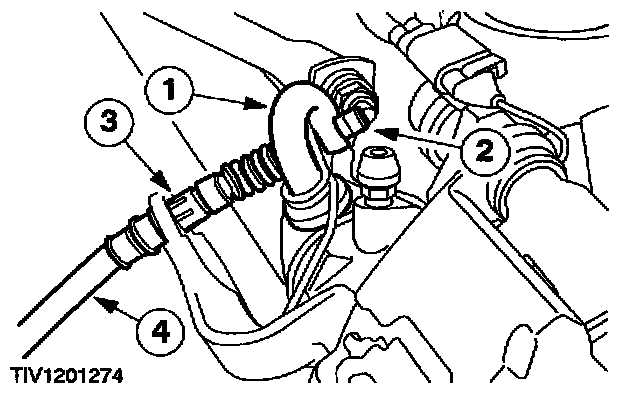

4. Disconnect the parking brake cable.
1 Pull back the parking brake lever.
2 Disconnect the cable from the lever.
3 Detach the conduit retaining clip.
4 Detach the cable and conduit.





5. Detach the caliper and anchor plate assembly. Secure the caliper and anchor plate assembly out of the way to prevent damage to the brake hose.

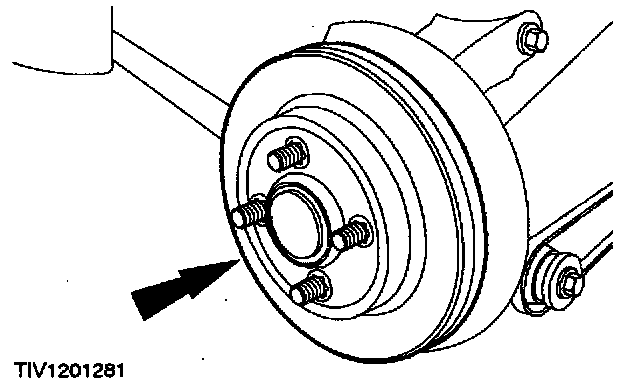

6. Remove the brake disc.
Remove the retainers (if equipped).

Installation








1. Install the brake disc.
Install the retainers (if equipped).

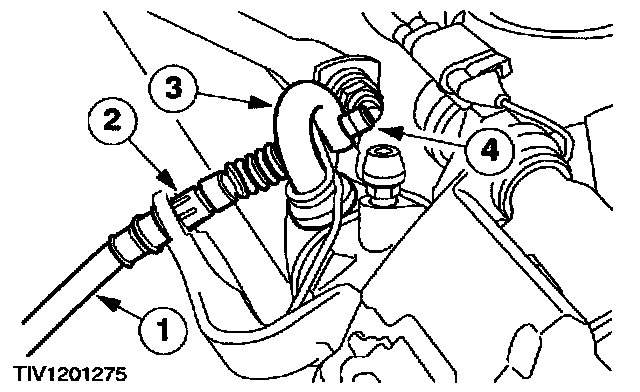

3. Install the parking brake cable.
1 Install the cable and conduit.
2 Secure the cable retaining clip.
3 Pull back the parking brake lever.
4 Install the cable to the parking brake lever.
