Front

Removal
1. Loosen the wheel nuts.
2. Raise and support the vehicle.
3. Remove the wheel.

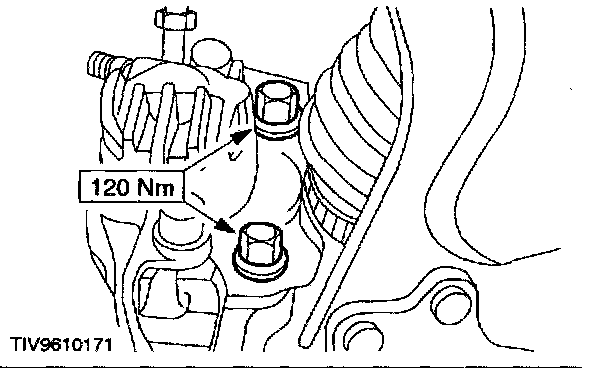

4. Detach the caliper and anchor plate assembly.
Secure the caliper and anchor plate assembly out of the way to prevent damage to the flexible brake hose.





5. Remove the brake disc.
Remove the retainers (if equipped).

Installation











1. To install, reverse the removal procedure.
