K: Poor Vehicle Tracking During Antilock Function
>>
Anti-Lock Brakes with Traction Control
Anti-Lock Brakes with Traction Control
PINPOINT TEST K: POOR VEHICLE TRACKING DURING ANTI-LOCK FUNCTION

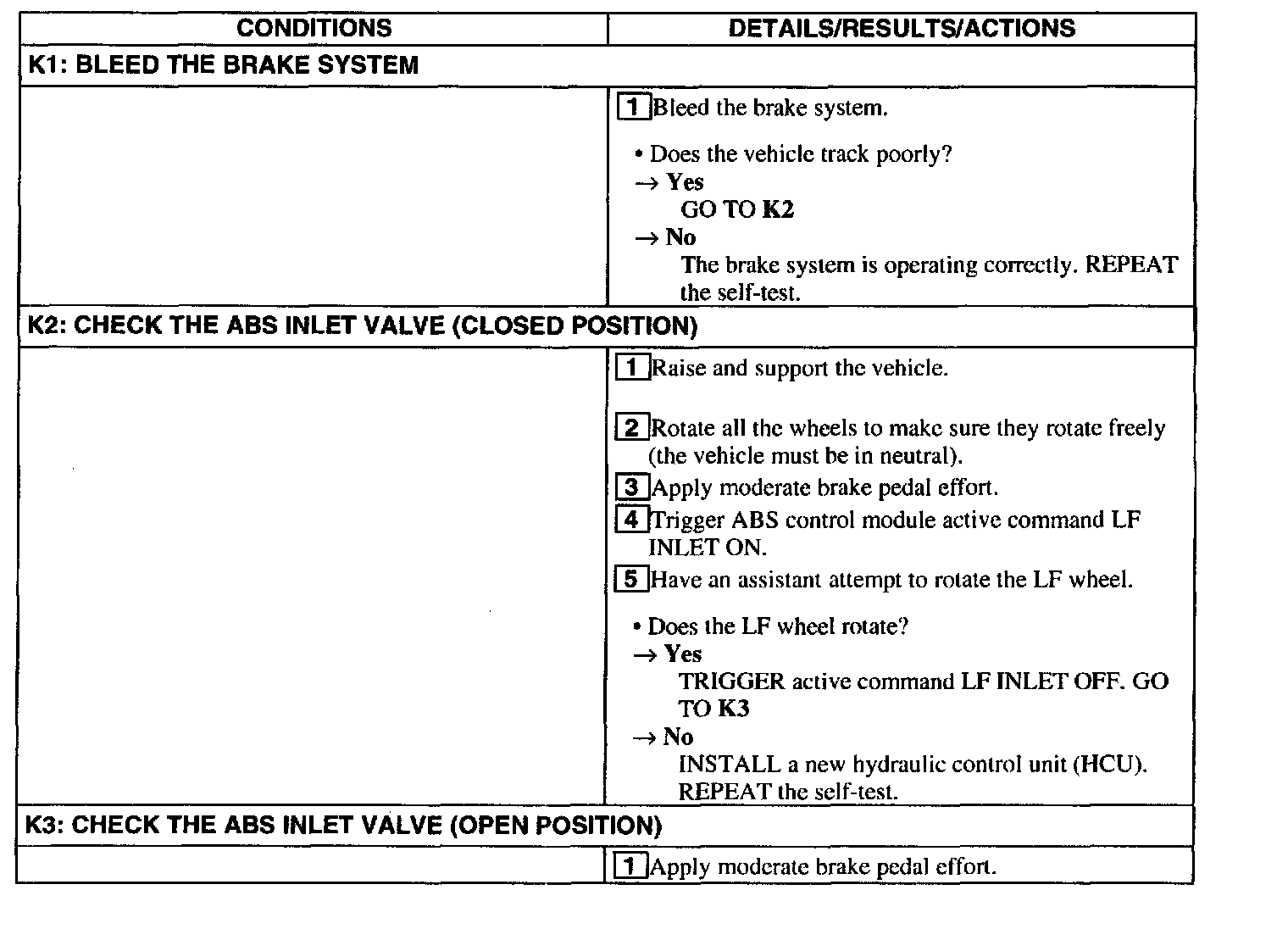

Test K1-K3:

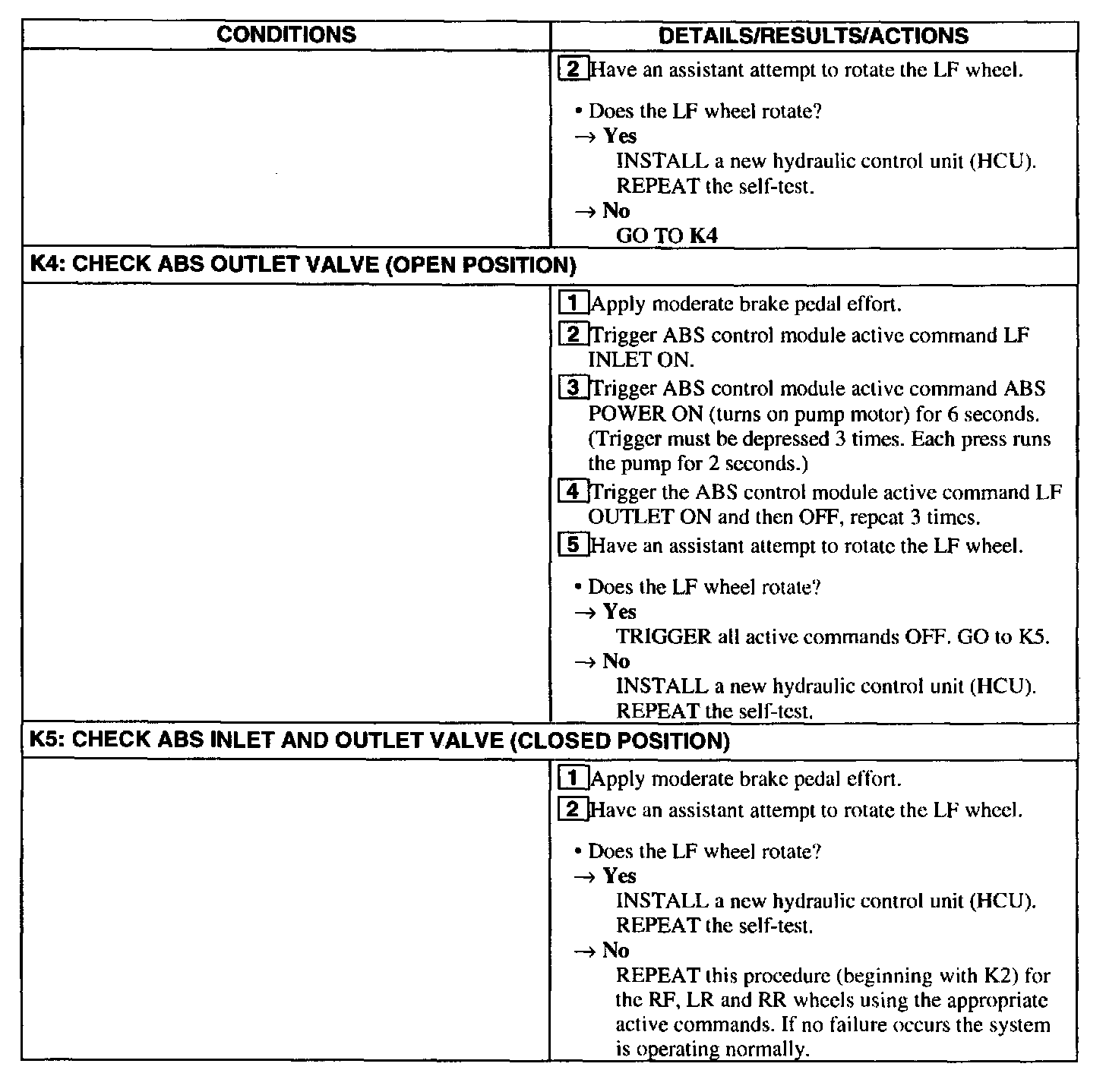

Test K3-K5:
