PINPOINT TEST I: THE YELLOW ABS WARNING INDICATOR DOES NOT SELF-CHECK - ALWAYS ON, NO DTCS
Test I1:

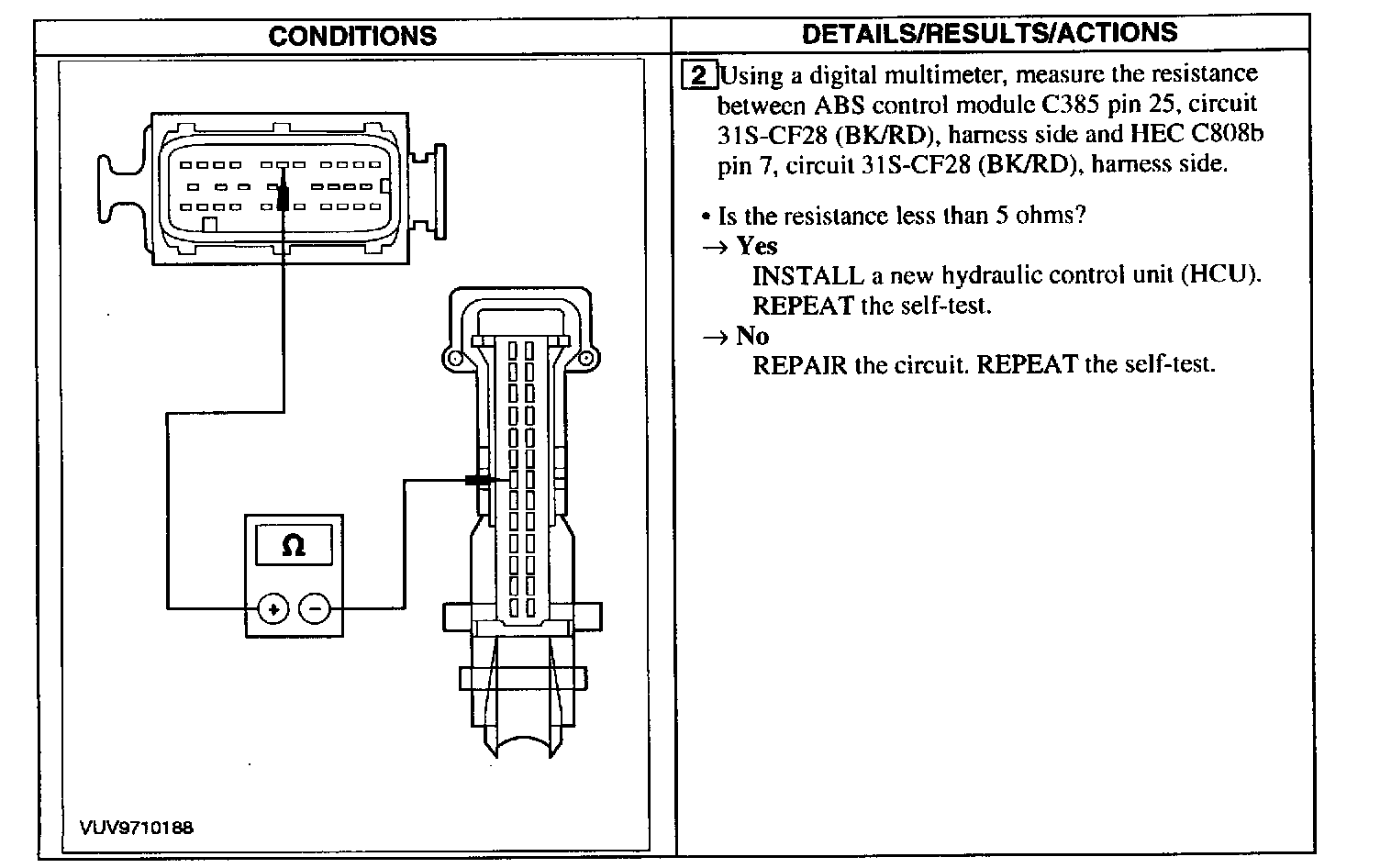

Test I1-I2:
Test I2 Continued:
