G: C1222 - Wheel Speed Signal Mismatch
>>
Anti-Lock Brakes with Traction Control
Anti-Lock Brakes with Traction Control
PINPOINT TEST G: DTC C1222, WHEEL SPEED SIGNAL MISMATCH.

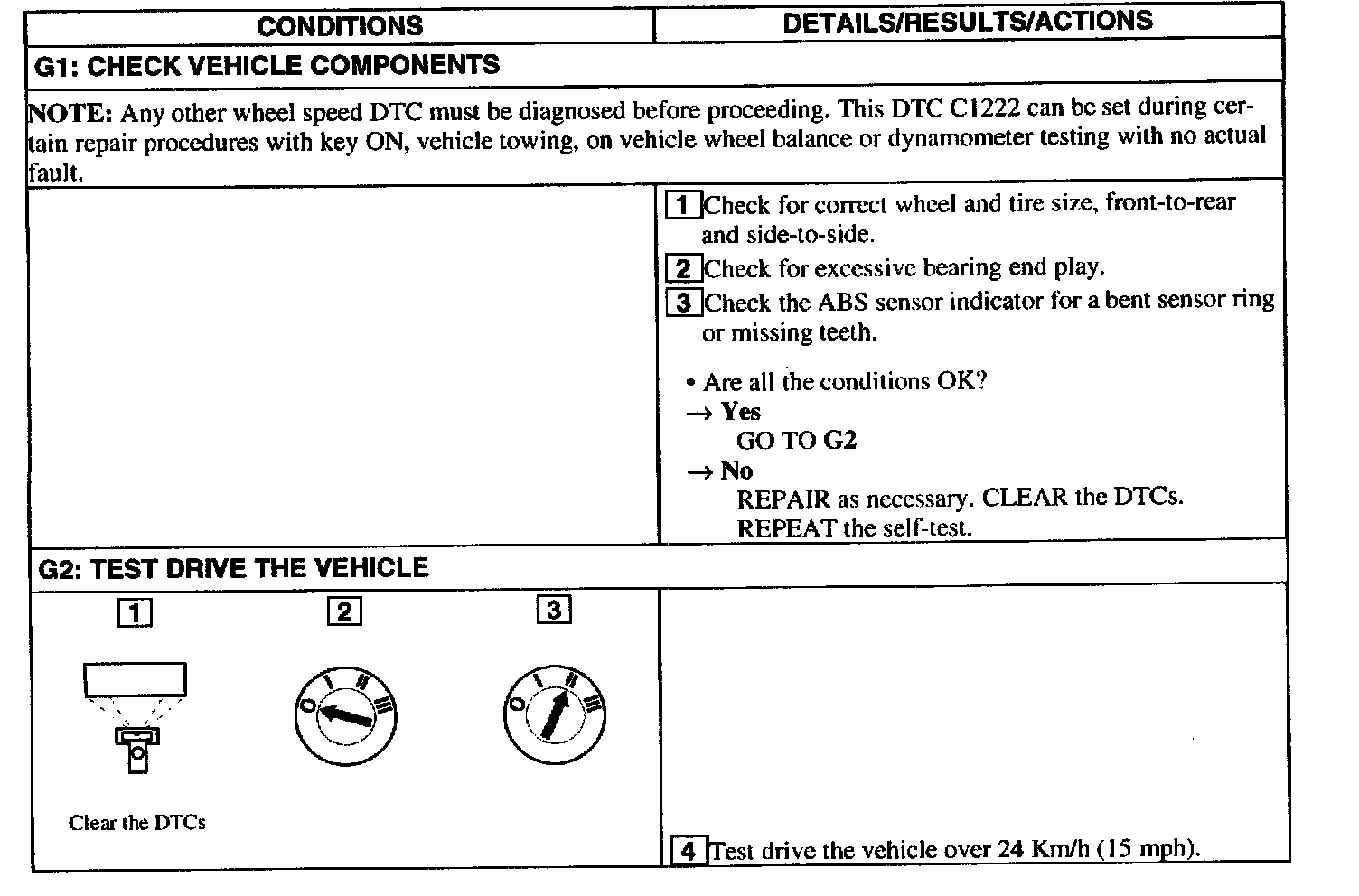

Test G1-G2:

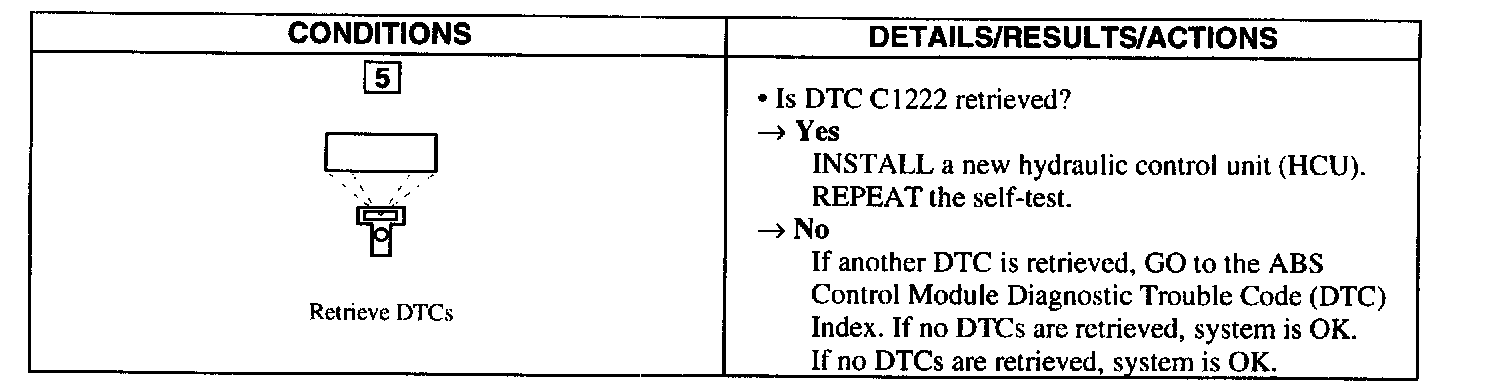

Test G2 Continued:
