Anti-Lock Brakes

PINPOINT TEST G: DTC1222 - WHEEL SPEED SIGNAL MISMATCH

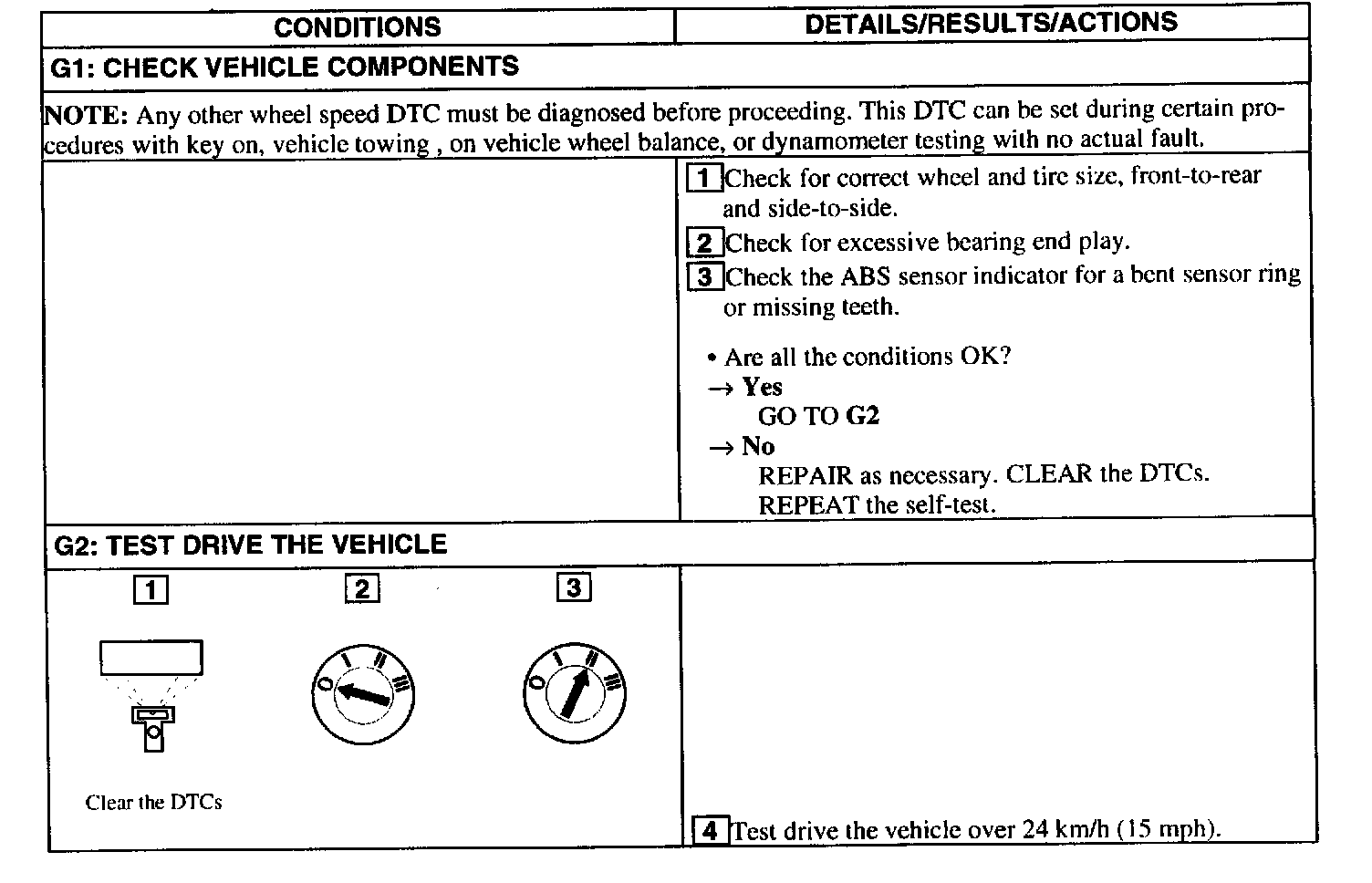

Test G1-G2:

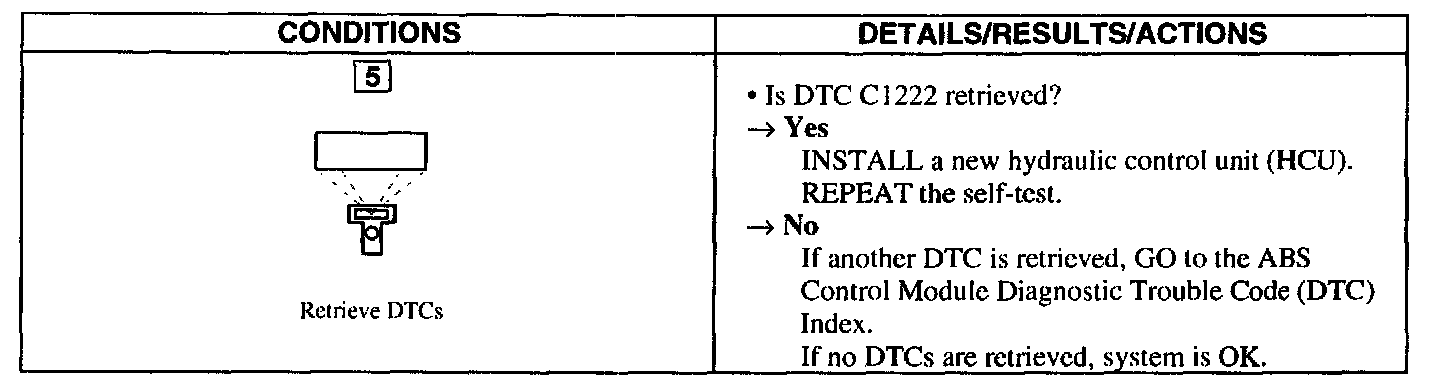

Test G2 Continued:
