A: No Communication With the Anti-Lock Brake Control Module
>>
Anti-Lock Brakes with Traction Control
Anti-Lock Brakes with Traction Control
PINPOINT TEST A: NO COMMUNICATION WITH THE ANTI-LOCK BRAKE CONTROL MODULE

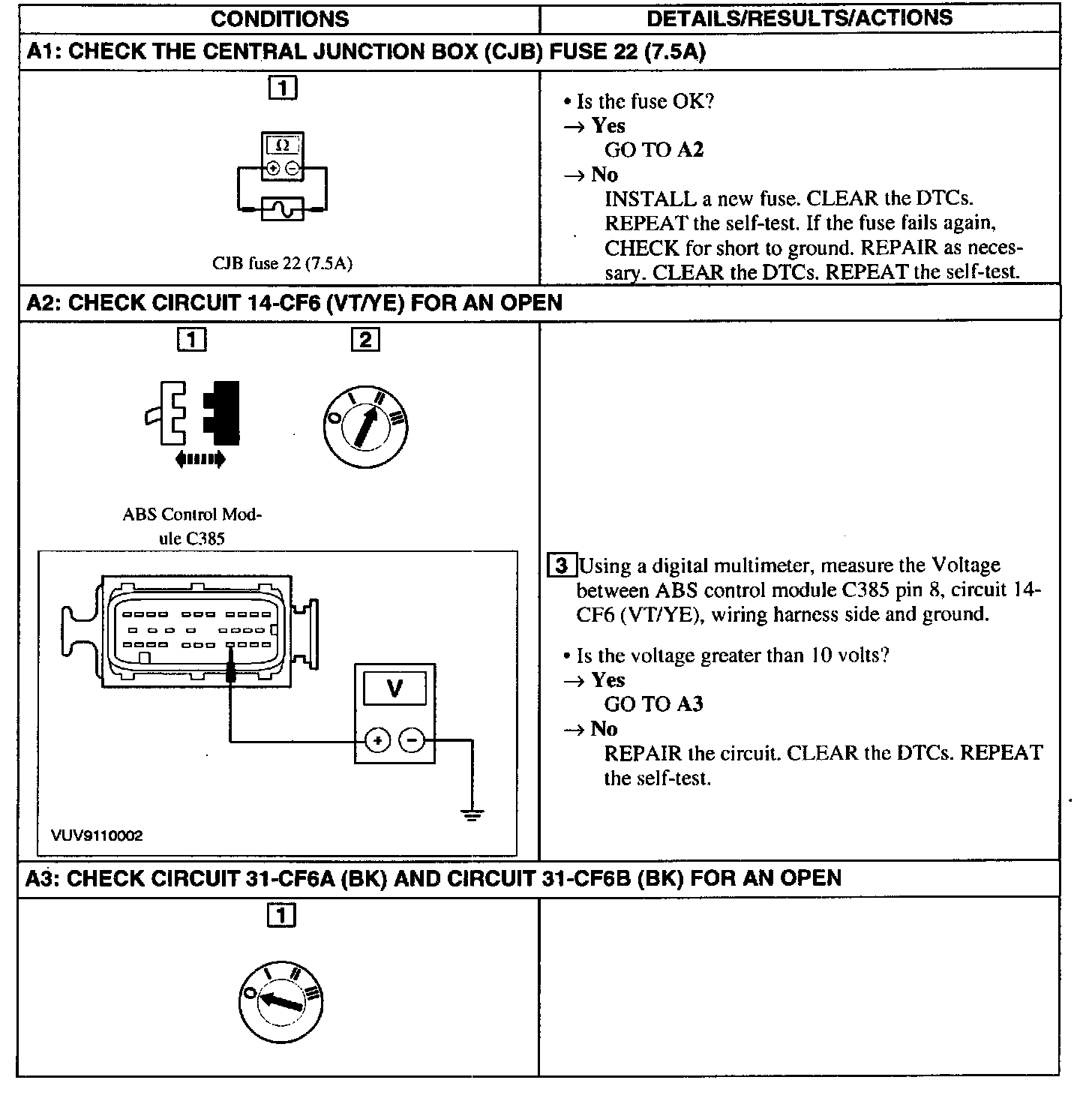

Test A1-A3:

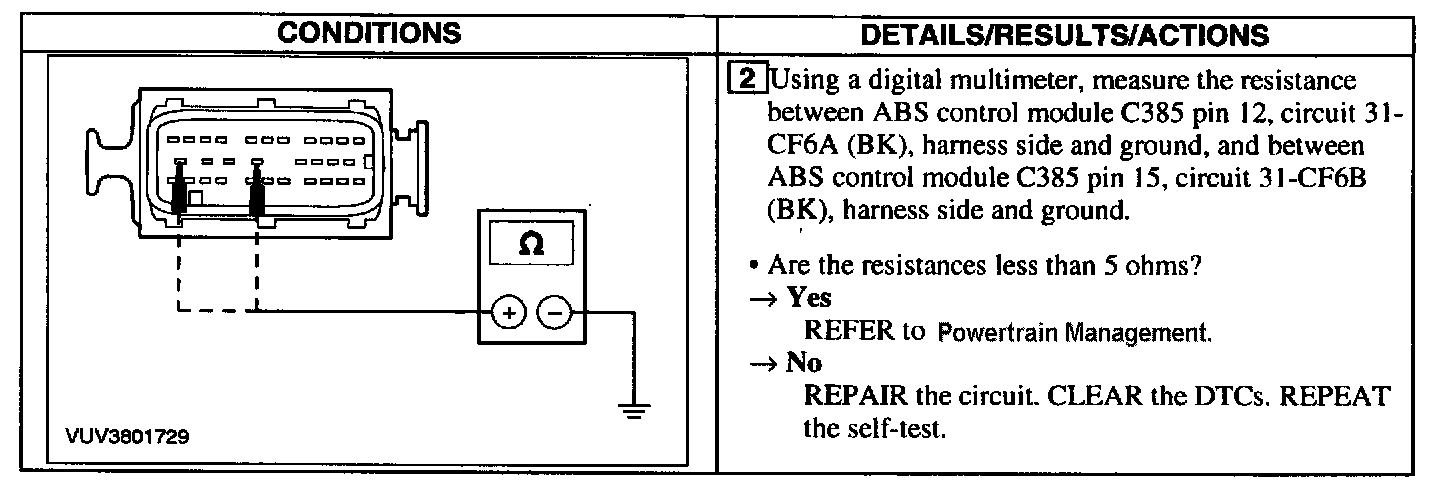

Test A3 Continued:
