A: No Communication With the Anti-Lock Brake Control Module
>>
Anti-Lock Brakes
Anti-Lock Brakes
PINPOINT TEST A: NO COMMUNICATION WITH THE ANTI-LOCK BRAKE CONTROL MODULE

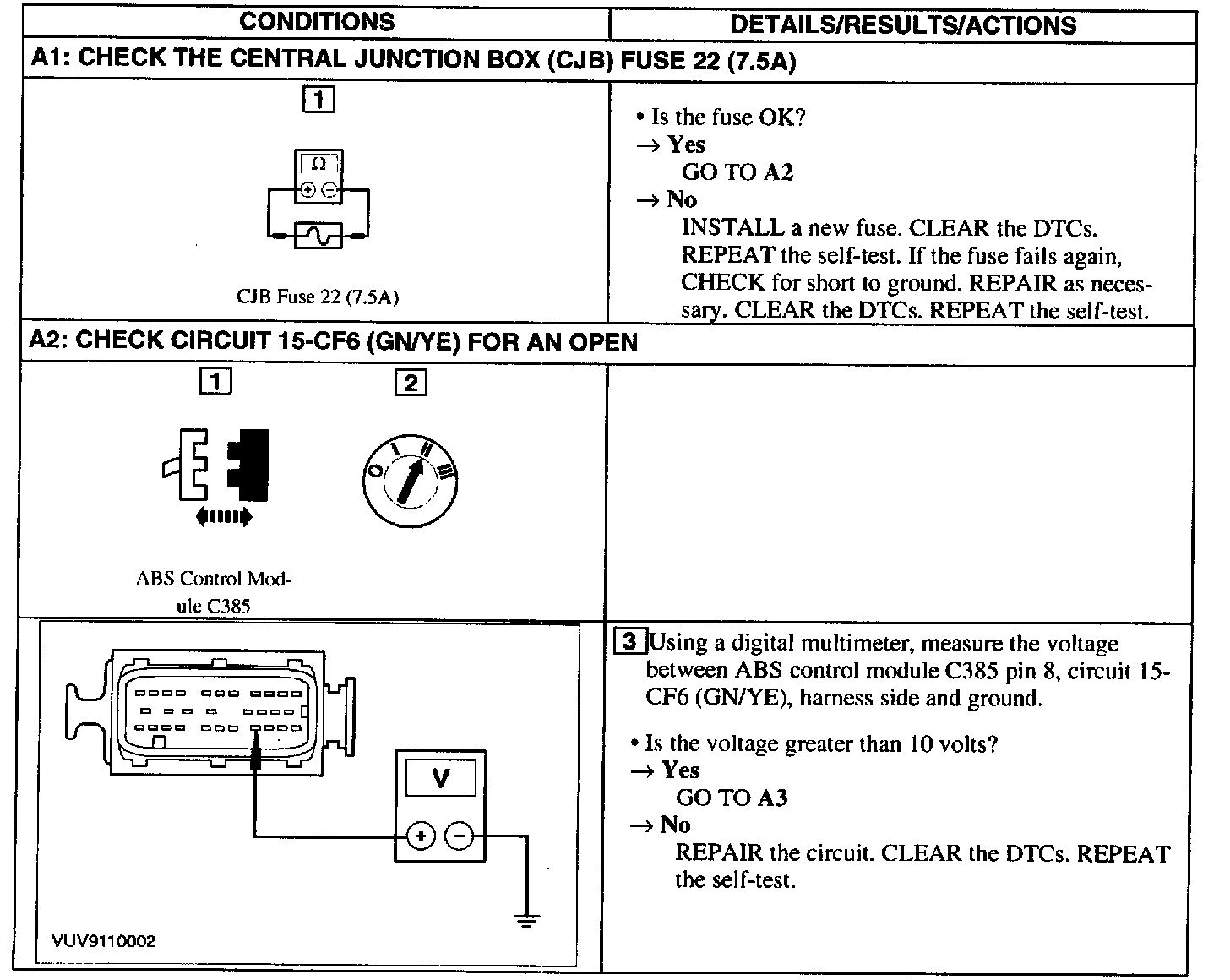

Test A1-A2:

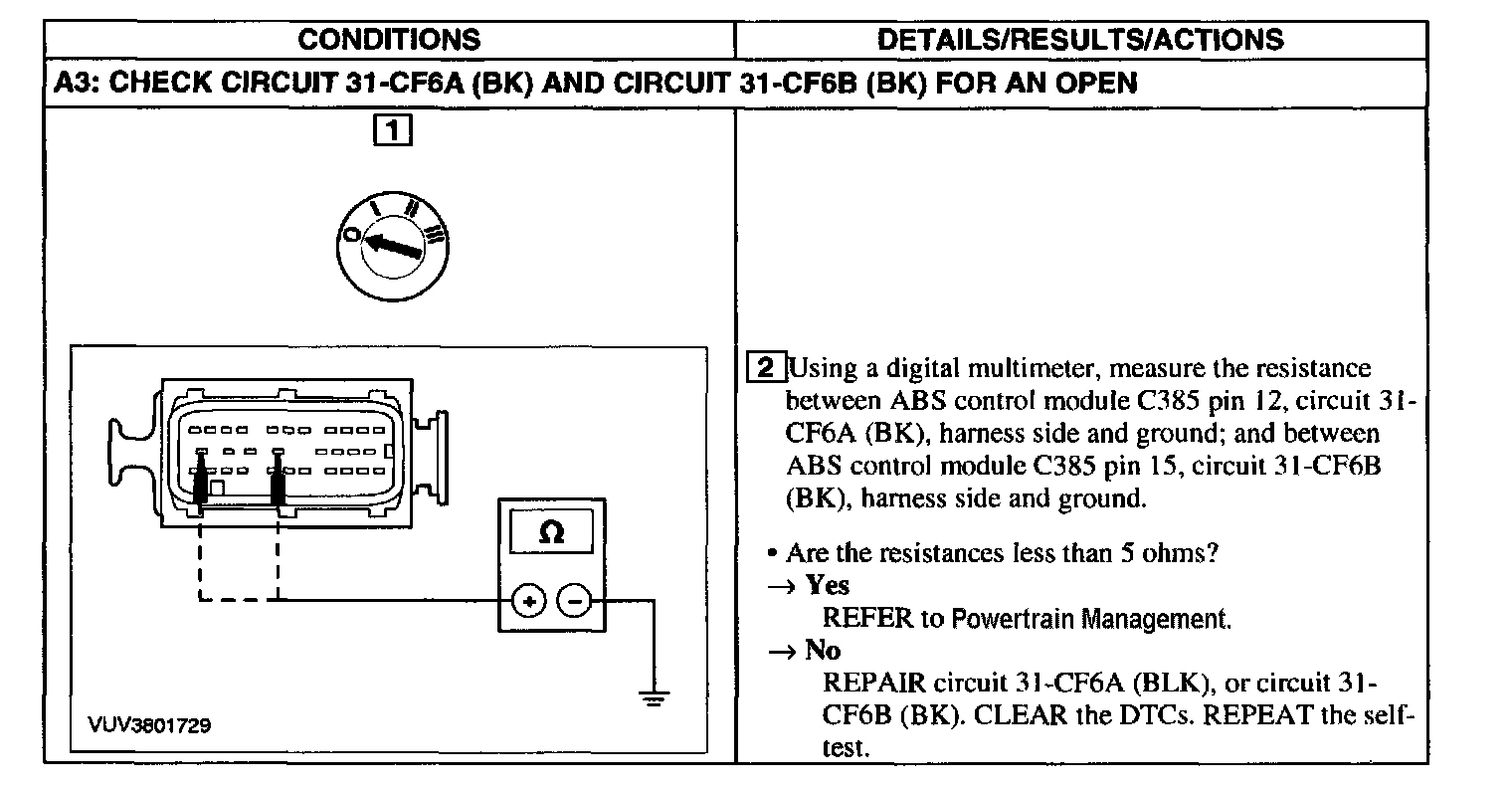

Test A3:
